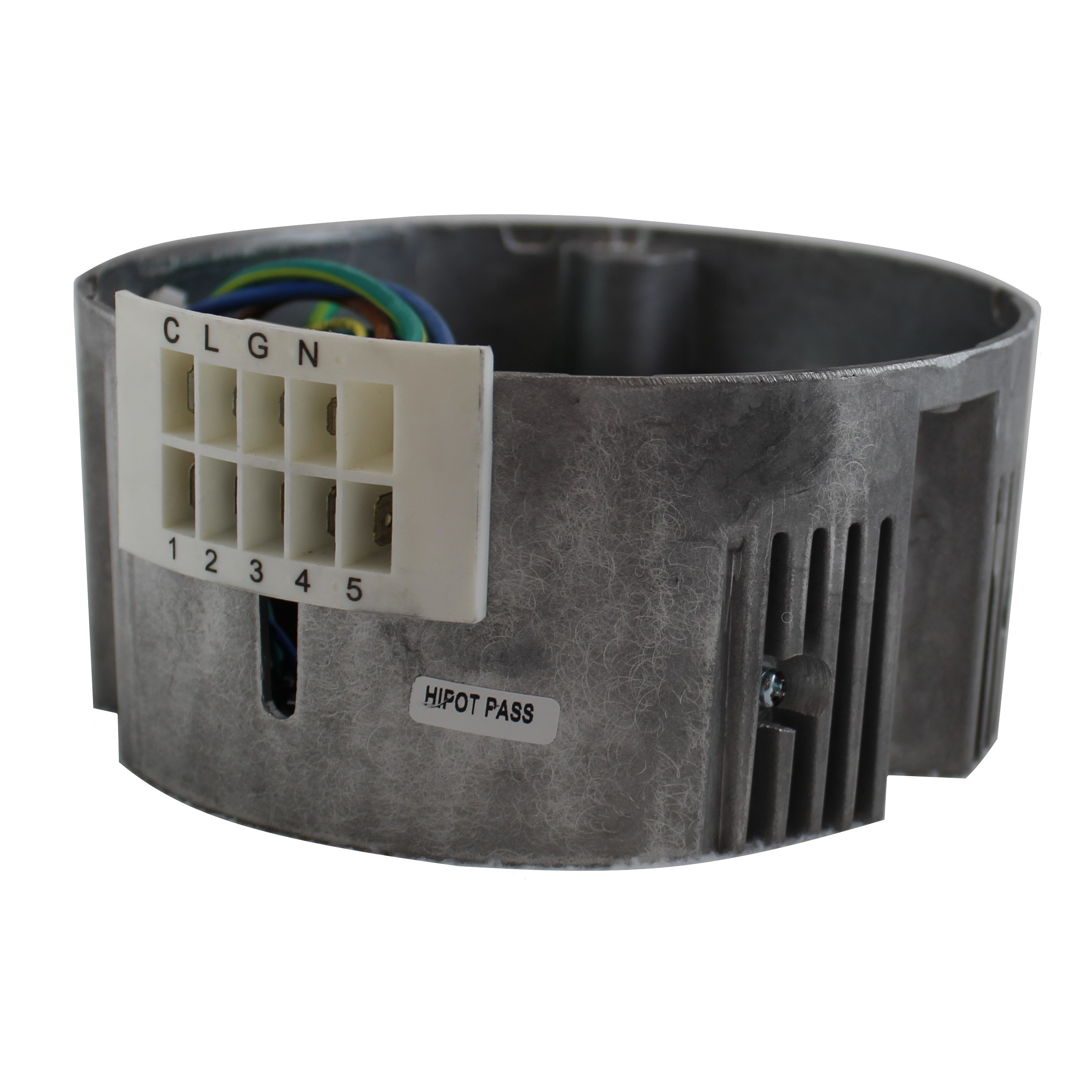

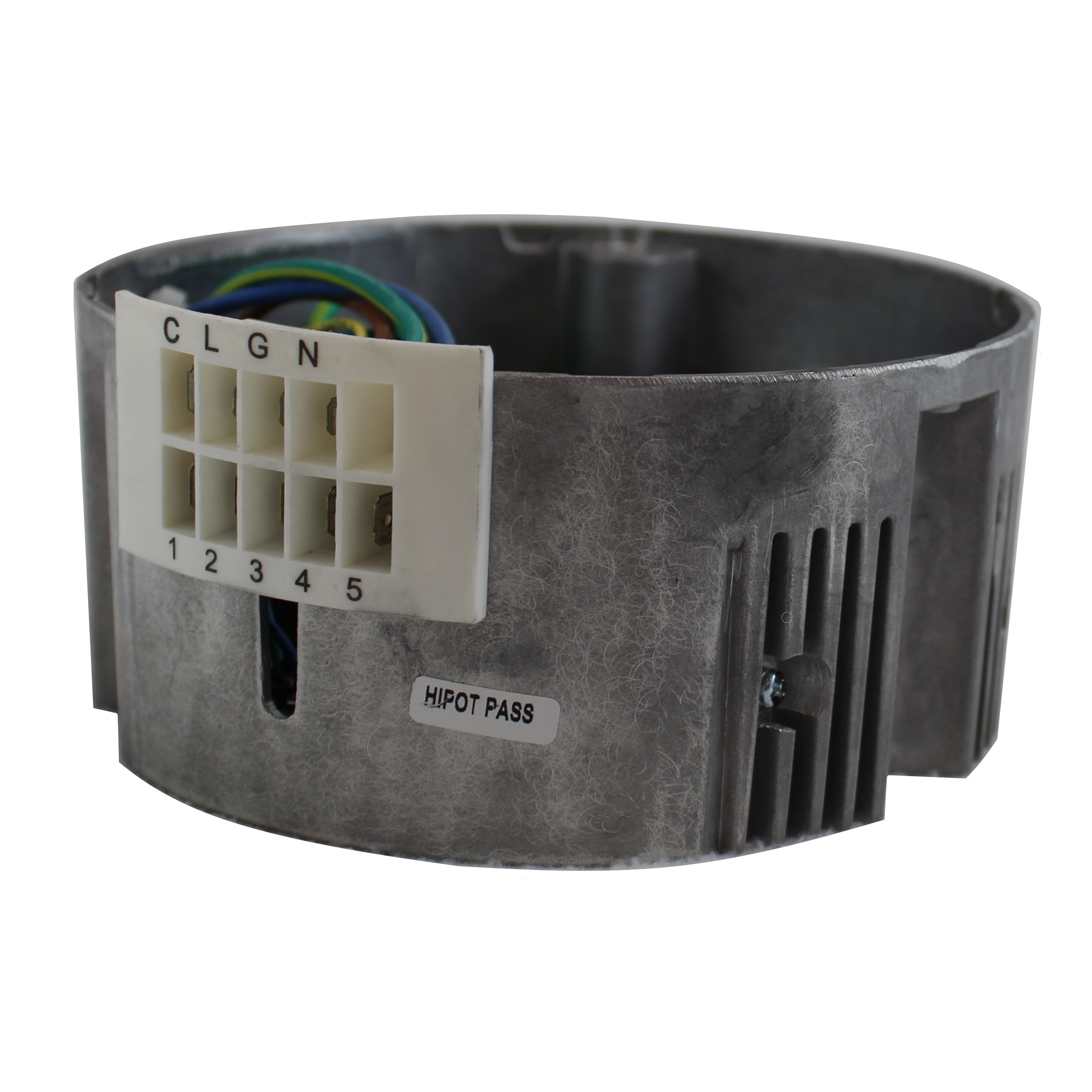

Goodman 0131F00263SC Ecm Blower Motor Controller 1/2 Hp

Product Description

The Goodman 0131F00263SC is a programmed ECM blower motor controller designed for direct-drive air handler and furnace blower assemblies. Operating at 115 volts, single phase, 50/60 Hz, it delivers precise variable-speed control across nine discrete speeds at up to 1/2 HP and 5.8 amps. ECM (electronically commutated motor) controllers replace conventional PSC motor controls and offer more consistent airflow management across heating, cooling, and continuous fan modes. This controller is installed by licensed HVAC technicians as part of a blower motor assembly service or full motor replacement.

This controller suits residential forced-air systems where an ECM blower motor is the specified drive type. It is built for direct-drive configurations, meaning the blower wheel mounts directly to the motor shaft without a belt. Nine-speed programmability allows the controller to match airflow output to system demand across multiple operating stages. Applications include gas furnaces, air handlers, and fan coil units that use compatible ECM blower assemblies requiring a programmed controller module.

Key Features

• Nine-speed ECM control for precise, stage-matched airflow output
• Rated 1/2 HP at 115 volts, single phase, 50/60 Hz
• 5.8 amp operating current draw
• Direct-drive configuration — no belt or pulley required
• 2.56-inch height profile for fit in compact blower housings
• Programmed motor controller — pre-configured for drop-in replacement service

Compatibility

Designed as an OEM-style programmed replacement controller for residential ECM direct-drive blower motor assemblies requiring a 1/2 HP, 115-volt, nine-speed module.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out power to the air handler or furnace at the disconnect switch and breaker before removing the existing controller. Confirm that the replacement controller's voltage, phase, and speed configuration match the original motor and system wiring before energizing. Follow applicable NEC requirements for low-voltage control wiring and equipment grounding.

Technical Specifications

• Horsepower: 1/2 HP
• Voltage: 115 volts
• Phase: 1 Ph
• Frequency: 50/60 Hz
• Amperage: 5.8 amps
• Speed Settings: 9 Speed
• Drive Type: Direct Drive
• Motor Type: ECM (Electronically Commutated Motor)
• Height: 2.56 inches

Standard Information

• Brand: Goodman
• Manufacturer Part Number: 0131F00263SC
