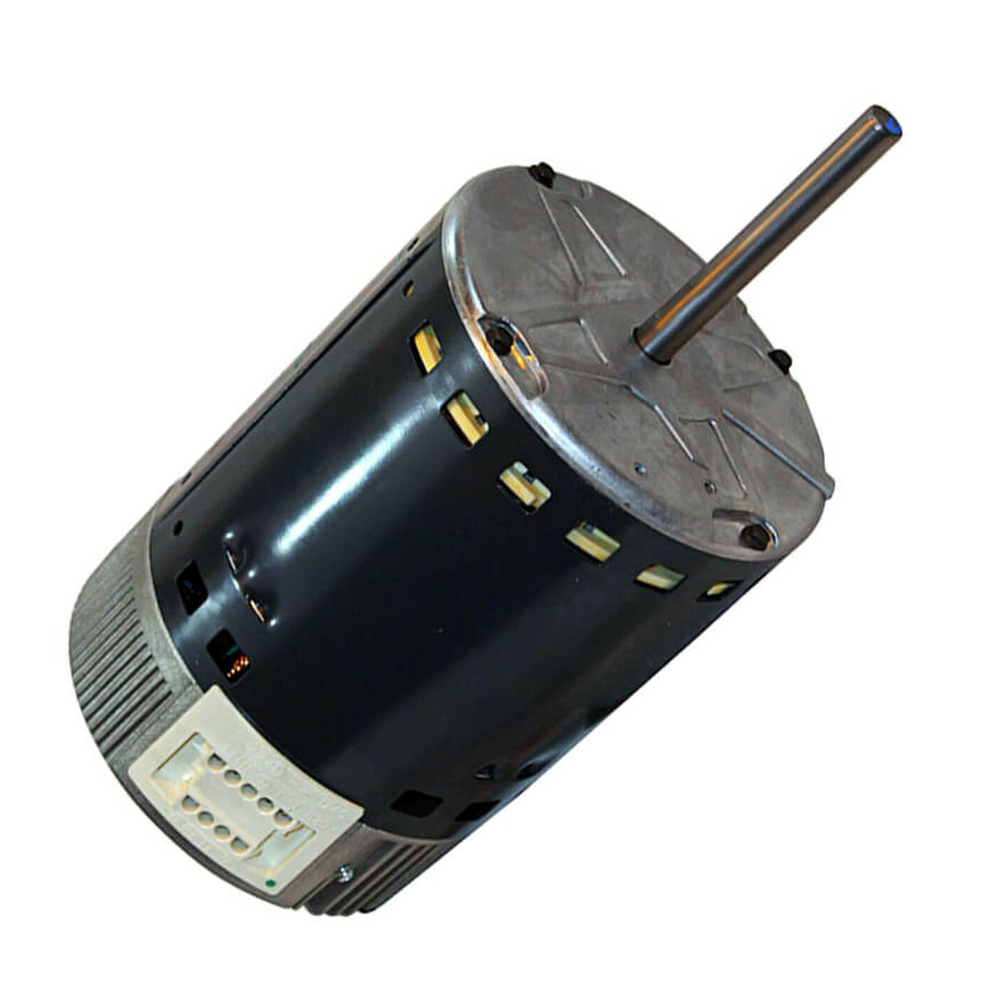

Goodman 0131F00130S Ecm Blower Motor 1/2 Hp 115V

Product Description

The Goodman 0131F00130S is a nine-speed ECM blower motor rated at 1/2 horsepower and 115 volts, designed for direct-drive air handler and furnace blower assemblies. ECM (electronically commutated motor) technology delivers variable-speed airflow control with lower energy consumption compared to standard PSC motors. The motor runs on single-phase power at 50/60 Hz, draws 5.8 amps, and spins counter-clockwise at up to 1200 RPM. Ball bearing construction supports long service life in continuous-duty blower applications. Licensed HVAC technicians install this motor as a service replacement in residential forced-air systems.

This motor is suited for residential gas furnace and air handler applications where an X13-style programmable ECM blower motor is specified. It mounts in direct-drive blower assemblies and delivers nine selectable speed taps for static pressure matching and airflow balancing. The counter-clockwise rotation and open air-over (OAO) enclosure make it appropriate for indoor blower wheel duty. Install this motor when the original unit has failed or when upgrading from a comparable single-phase direct-drive motor in the same frame class.

Key Features

• Nine-speed ECM design allows airflow and static pressure optimization across multiple system configurations
• 1/2 HP output at 115V single-phase, 50/60 Hz for broad residential compatibility
• Ball bearing construction for extended service life in continuous-duty blower applications
• Direct-drive mount eliminates belt and pulley maintenance
• Counter-clockwise rotation matches standard residential blower wheel orientation
• 0.5 inch x 4.5 inch shaft dimensions for direct blower wheel coupling

Compatibility

Designed as an OEM-style replacement ECM blower motor for residential direct-drive forced-air furnace and air handler blower assemblies requiring a 115V, 1/2 HP, nine-speed X13-style programmable motor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out power to the air handler or furnace before removing the existing motor or handling any wiring. Verify shaft diameter, shaft length, rotation direction, and mounting configuration match the original motor before final installation. Consult the equipment manufacturer wiring diagram for correct speed tap assignments prior to startup.

Technical Specifications

• Motor Type: ECM (X13 Programmable)
• Horsepower: 1/2 HP
• Voltage: 115 volts
• Phase: Single-phase
• Frequency: 50/60 Hz
• Amperage: 5.8 amps
• Speed: 9-speed, 1200 RPM
• Drive Type: Direct Drive
• Rotation: Counter-clockwise
• Enclosure: Open Air-Over (OAO)
• Bearing Type: Ball Bearing
• Shaft Dimensions: 0.5 inches diameter x 4.5 inches length
• Motor Height: 11.1 inches

Standard Information

• Brand: Goodman
• Manufacturer Part Number: 0131F00130S
