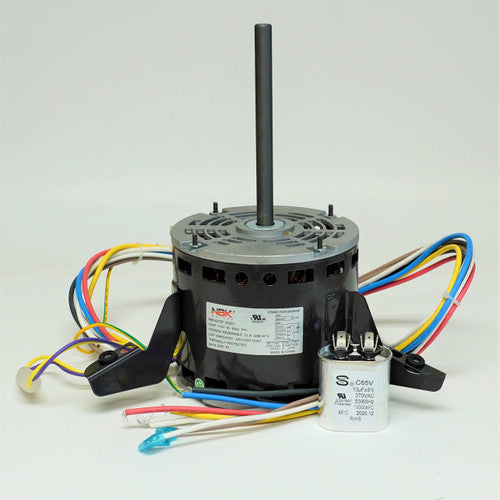

Goodman 0131F00122SC Blower Motor 1/2 HP

Product Description

The Goodman 0131F00122SC is a blower motor suitable for HVAC systems. It plays a crucial role in circulating air throughout the home during heating and cooling. This motor operates with a power rating of 1/2 HP at 115V and features an ECM design for efficient operation.

• Blower motor designed for HVAC applications
• Power rating of 1/2 HP
• Operates efficiently at 115V

Product Highlights

This motor is ideal for maintaining optimal air flow in your HVAC system. It's reliable and designed to work with various heating and cooling setups.

Product Information

Standard Information

• Brand: Goodman
• UPC: 52150000

Technical Specifications

• Horsepower: 1/2
• Input Voltage: 115 VAC
• RPM: 1075
• Output Current: 8.00 A
• Number of Speeds: Four
• Rotation: Reversible
• Motor Enclosure: Open Air Over (OPAO)
• Phase: Single Phase
• Frequency: 60 Hz
• Bearing Type: Sleeve
• Shaft Diameter: 0.5 inches
• Length Less Shaft: 4-7/8 inches
• Diameter: 5-5/8 inches
• Mounting Type: Flex Mount
• Overload Protection: Automatic
• Capacitor: Permanent Split Capacitor (PSC)
• Capacitor Included: 10MFD/370V
• Motor Type: ECM (Electronically Commutated Motor)
• Cycle/Hertz: 50/60 Hz
• Amps: 5.8-6 A
• Weight: 6 lbs
• Height: 11.1 inches
• Length: 12 inches
• Width: 12 inches
• Country of Origin: CHN
