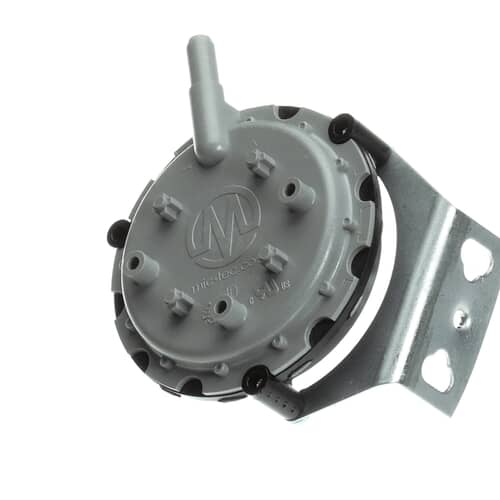

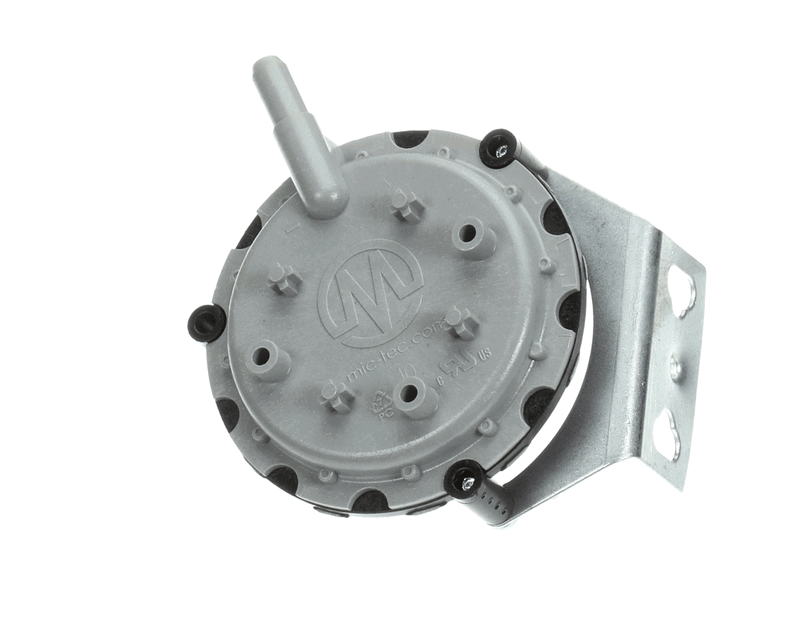

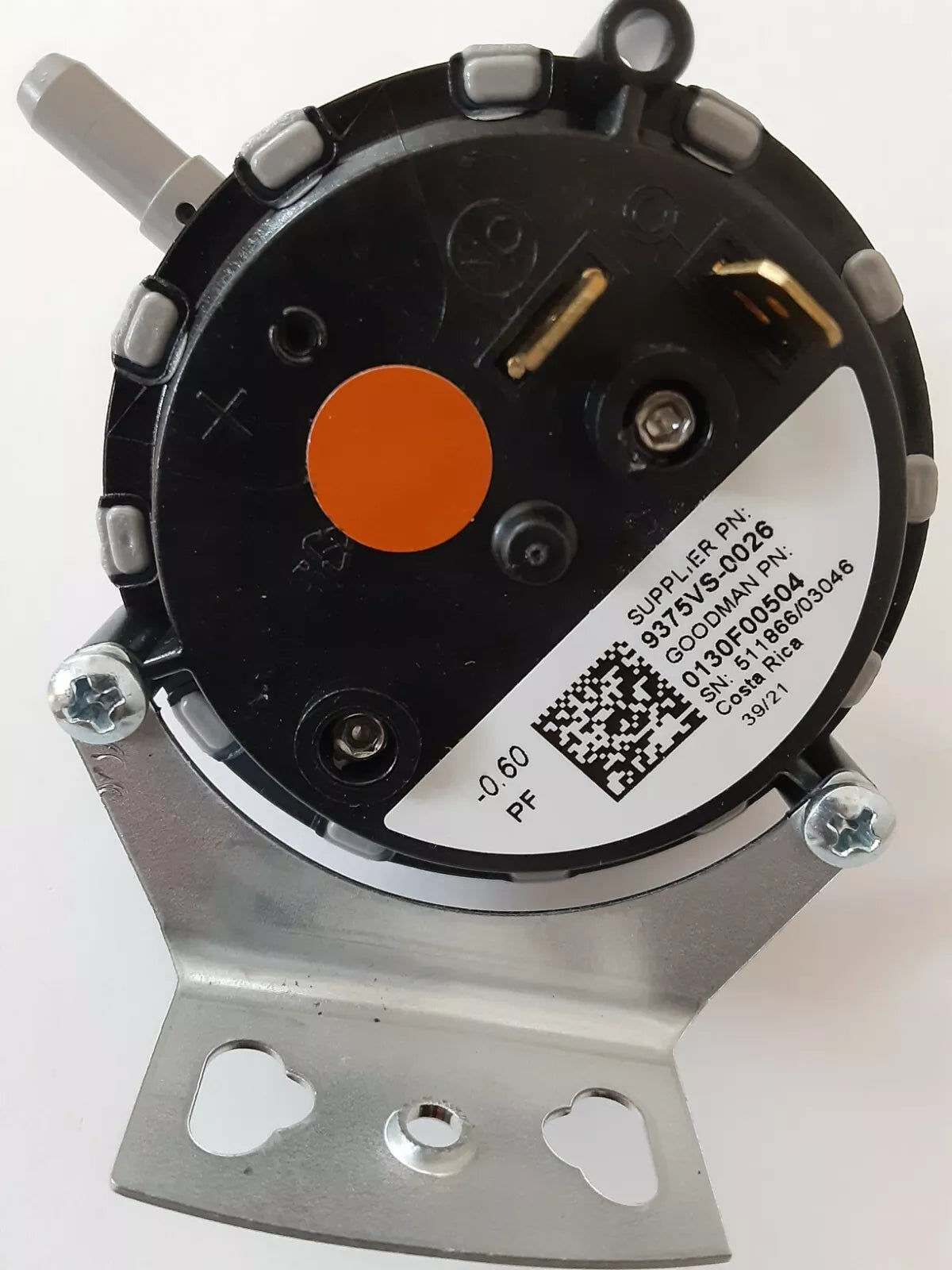

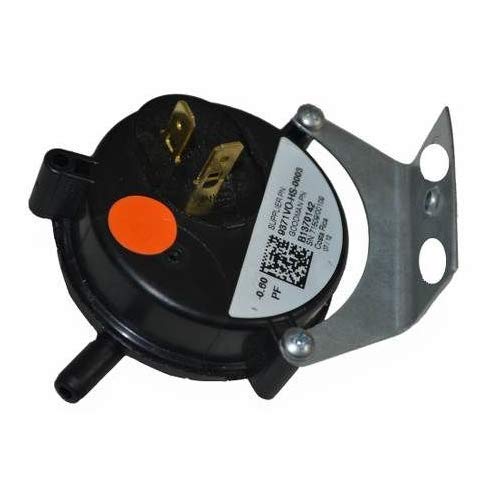

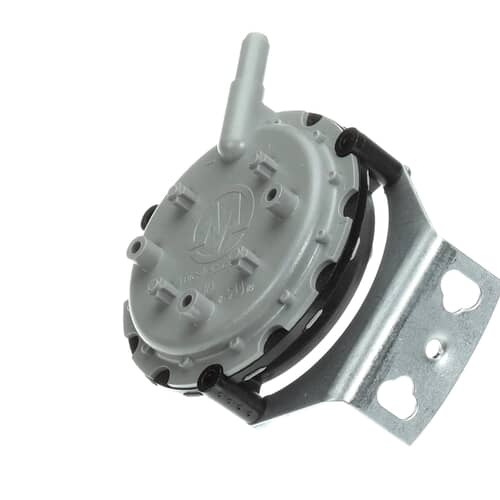

Goodman 0130F00504 Air Pressure Switch (.60 inches WC) B13701-42

Product Description

The Goodman 0130F00504 Air Pressure Switch (.60" WC) changes the unit’s power settings according to changes in pressure for optimal performance. This pressure switch is a genuine OEM replacement part. It features a SPST terminal and a 1/4" barb connection. It replaces part number B13701-42.

• Ensures accurate readings with its .60" WC sensitivity, ideal for furnace applications
• Features a 1/4" barb connection for quick and simple setup
• Functions automatically based on air pressure changes

Product Highlights

The Goodman 0130F00504 air pressure switch is a reliable OEM replacement part suitable for furnace applications. It ensures accurate pressure detection and easy installation.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: 0130F00504
• Country of Origin: United States

Technical Specifications

• Terminal: Spst
• Specification Met: Oem
• Batteries required: No
• Brand: Goodman
• Manufacturer: Goodman
• Product Type: Pressure Switch
• Size: 0.60"
• Length: 2.9 in / 7.37 cm
• Width: 2.65 in / 6.73 cm
• Height: 1.8 in / 4.57 cm
• Additional Part Number Information: Equivalent Part Number: 0130F00504
• Operation Mode: automatic
• Contact Type: Normally Open
• Connector Type: Barb
• Switch Type: Pressure Switch
• Material: Metal
• Contact Material: Metal
• Number of Items: 1
• Item model number: 0130F00504
• MPN: 0130F00504
