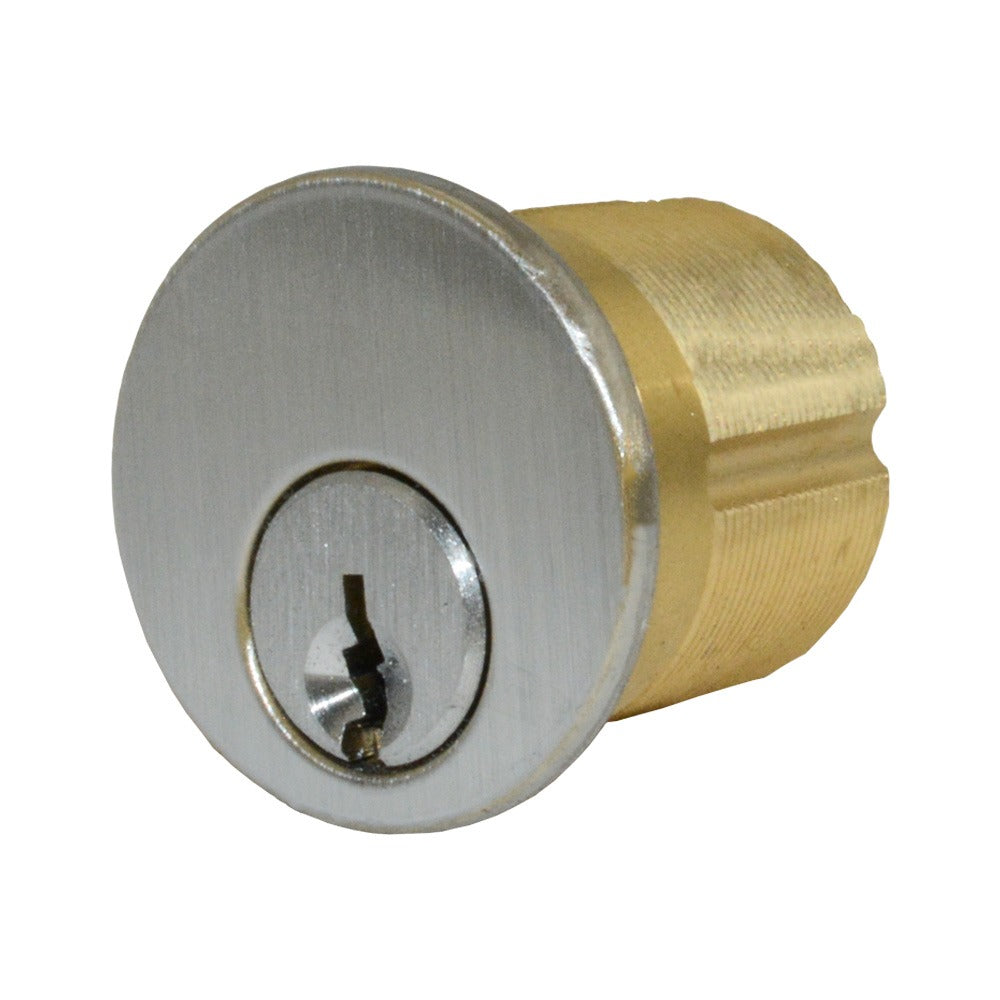

Gms M114SC26DATA2 Mortise Cylinder US26D Satin Chrome

Product Description

The GMS M114SC26DATA2 is a 1-1/4 inch mortise cylinder designed for commercial and institutional door hardware applications. It ships keyed alike in pairs, making it well-suited for multi-door installations where a single key must operate two locks. The cylinder includes both Adams Rite and Yale Standard cams, giving installers flexibility across a range of mortise lockset configurations. The US26D Satin Chrome finish provides a corrosion-resistant, low-sheen appearance standard in commercial environments. At 0.4 pounds, the unit is compact and dimensionally consistent with OEM mortise cylinder specifications.

This mortise cylinder is intended for commercial door assemblies using Adams Rite or Yale-style mortise locksets. Typical applications include aluminum storefront doors, office entry systems, and institutional facilities where keyed-alike pairs are required for simplified key management. The included cam options allow the same cylinder body to work across both Adams Rite and Yale Standard mortise cases without modification. Sold individually as a single unit (EA), with case quantities of 10 available for larger projects.

Key Features

• 1-1/4 inch cylinder length fits standard mortise lockset prep
• Includes Adams Rite and Yale Standard cams for broad mortise case compatibility
• Keyed alike in pairs for simplified key control across two doors
• US26D Satin Chrome finish for durable, low-glare appearance in commercial settings
• Lightweight at 0.4 pounds with compact 2.6 x 1.7 x 1.7 inch profile

Compatibility

Designed as an OEM-style replacement mortise cylinder compatible with Adams Rite and Yale Standard cam-based mortise locksets requiring a 1-1/4 inch cylinder in US26D Satin Chrome finish.

Installation Notes

Mortise cylinders are typically installed by licensed locksmiths or commercial door hardware technicians. Before servicing, ensure the door is secured open and the lockset is disengaged from the latch mechanism. Follow the mortise lockset manufacturer instructions for cam orientation and cylinder retention screw torque. Local building and fire codes may govern keying requirements for exit hardware on rated doors.
