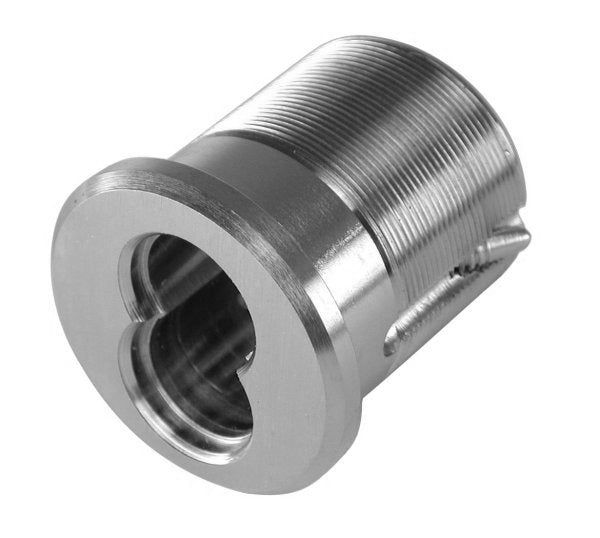

Gms ICM726DST 7 Pin Ic Mortise Cylinder Housing Satin Chrome

Product Description

The GMS ICM726DST is a 7-pin, small-format interchangeable core (SFIC) mortise cylinder housing with a straight cam and satin chrome finish. Designed to accept Best-compatible interchangeable cores, this housing allows core swaps without removing the cylinder from the door, which significantly reduces re-keying labor on commercial and institutional hardware. The unit ships as a single housing (sold individually) and measures 2.6 inches in length, 1.9 inches in width, and 1.7 inches in height. At 0.5 pounds, it is a compact, lightweight component suited for high-cycle commercial door applications.

This cylinder housing is used in commercial, institutional, and light industrial access control applications where mortise locksets are specified. It fits doors requiring a SFIC-compatible mortise cylinder and is appropriate for office buildings, schools, healthcare facilities, and any environment that benefits from a master-keyed or grand-master-keyed Best-format core system. The straight cam configuration is the standard orientation for most mortise lock bodies. A licensed locksmith or trained facility security technician typically performs installation and core insertion.

Key Features

• 7-pin small-format interchangeable core design allows tool-free core removal and replacement
• Best-compatible SFIC housing accepts standard small-format IC cores
• Straight cam configuration suits the majority of mortise lock body applications
• Satin chrome finish provides a clean, low-glare appearance consistent with commercial hardware standards
• Compact footprint: 2.6 x 1.9 x 1.7 inches for tight door prep clearances
• Sold individually; available in case quantities of 10

Compatibility

Designed as an OEM-style replacement mortise cylinder housing compatible with Best-format small-format interchangeable core systems in standard commercial mortise locksets.

Installation Notes

Installation should be performed by a licensed locksmith or qualified security hardware technician familiar with SFIC mortise cylinder procedures. Remove all tension from the locking mechanism and ensure the door is secured open before servicing the cylinder. Do not force the core into the housing; the control key must be used to insert and remove Best-format IC cores per the core manufacturer's procedure. Local building and life-safety codes may govern keying system requirements in commercial and institutional occupancies.
