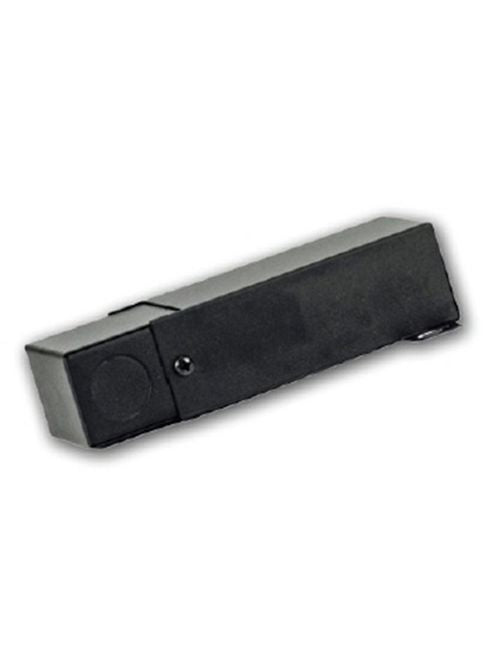

GM Lighting LTHM30-DIM Dimmable Transformer 30 W 12 VDC Output Voltage 120 VAC Input Voltage

Product Description

The GM Lighting LTHM30-DIM is a dimmable transformer designed for use with low voltage magnetic systems. It supports a maximum output of thirty watts and operates at twelve volts DC. This compact magnetic power supply pairs well with a conventional low voltage wall dimmer for easy light control. It runs on a one hundred twenty volt input power. This transformer is suitable for both indoor and outdoor applications.

• Works with low-voltage magnetic wall dimmer
• High efficiency and excellent load regulation
• No minimum load requirement

Product Highlights

This dimmable transformer has a small footprint, making it easy to install in various settings.

Product Information

Standard Information

• MPN: LTHM30-DIM
• Brand: GM Lighting

Technical Specifications

• Type: Dimmable, Magnetic, Class II
• Input Voltage: 120 VAC
• Output Voltage: 12 VDC
• Output Current: 2500 mA
• Max Output Power: 30 W
• Temperature Rating: 70 degrees C
• Dimensions: 7-1/2 inches (Length) x 2-1/8 inches (Width) x 1-3/4 inches (Height)
• Weight: 2.0 lb
• Material: Metal
• Used With: Low-Voltage Magnetic Wall Dimmer
• Application: For indoor and outdoor use
• Standards/Approvals: ETL Listed
