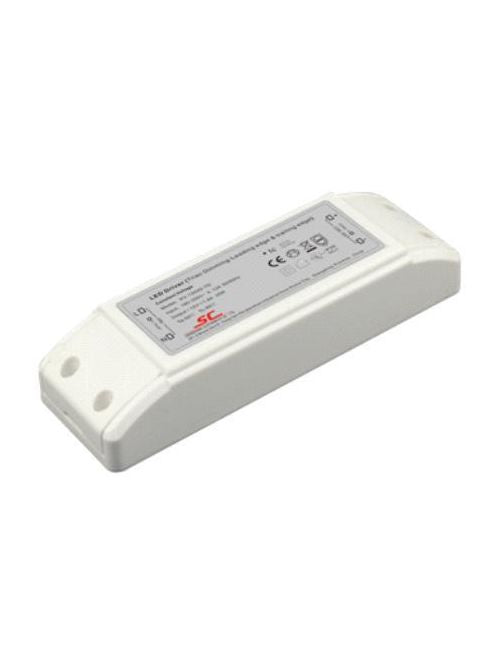

GM Lighting LTHE-20-DIM-12 20W Low V Electronic Dimmable Power Supply Class 2 120V AC 12V DC

Product Description

The GM Lighting LTHE-20-DIM-12 is a 20 watt low voltage electronic dimmable power supply designed for indoor use. This reliable power supply works seamlessly with conventional low voltage electronic wall mount dimmers. It features an integrated active power factor correction, enhancing overall efficiency.

• Designed for LED lighting applications.
• High efficiency at 84%.
• Short circuit and overload protection included.

Product Highlights

This product is suitable for use with both leading edge and trailing edge TRIAC dimmers, ensuring flicker-free dimming. The power supply is housed in a full protection plastic casing, which includes wiring covers secured with screws for safety.

Product Information

Standard Information

• Brand: GM Lighting
• Type: Dimmable

Technical Specifications

• Input Voltage: 90 - 130 VAC
• Output Voltage: 12 VDC
• Output Current: 1.67 A
• Max Output Power: 20 W
• Width: 55 mm
• Height: 19.5 mm
• Length: 135 mm
