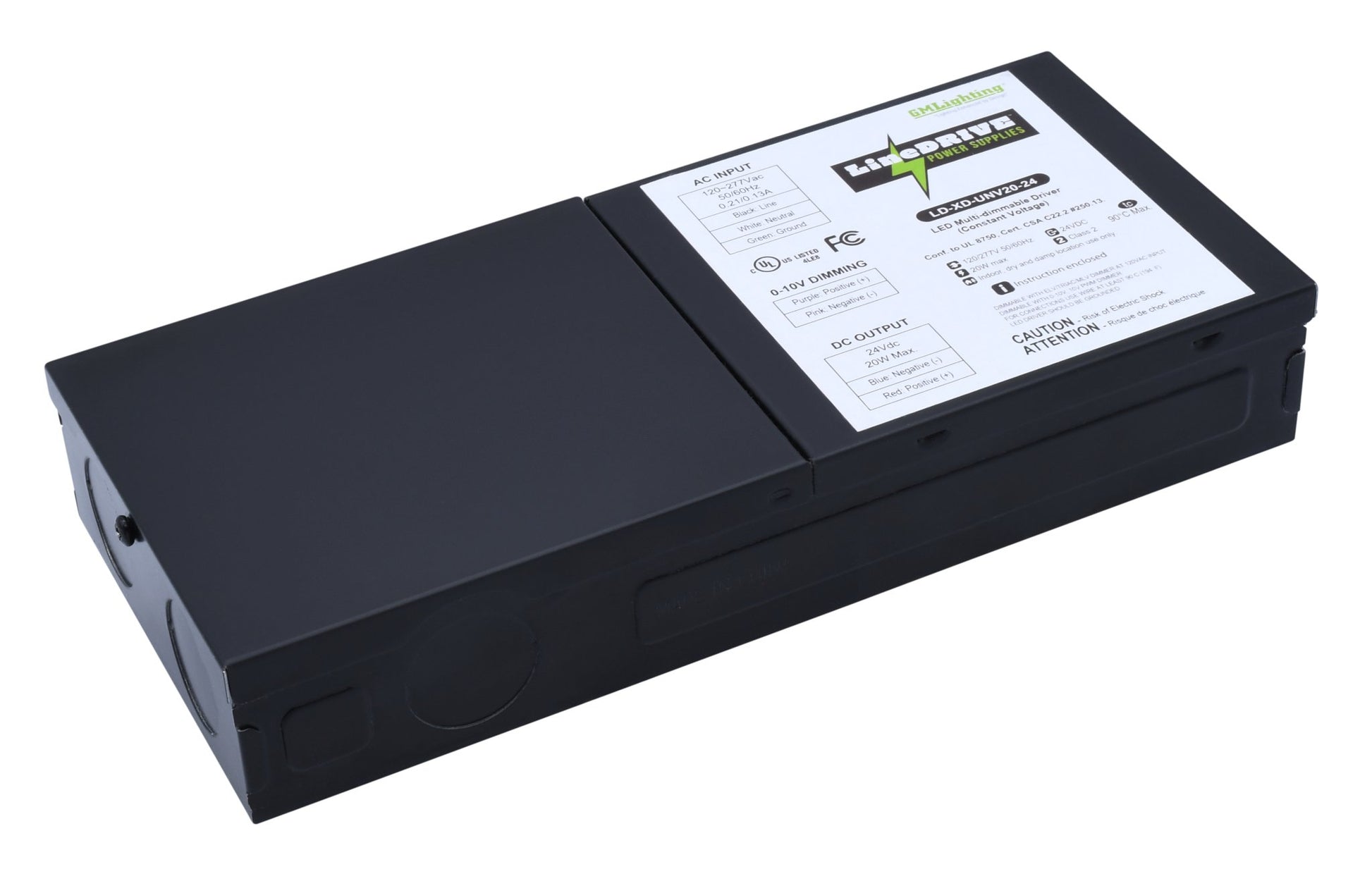

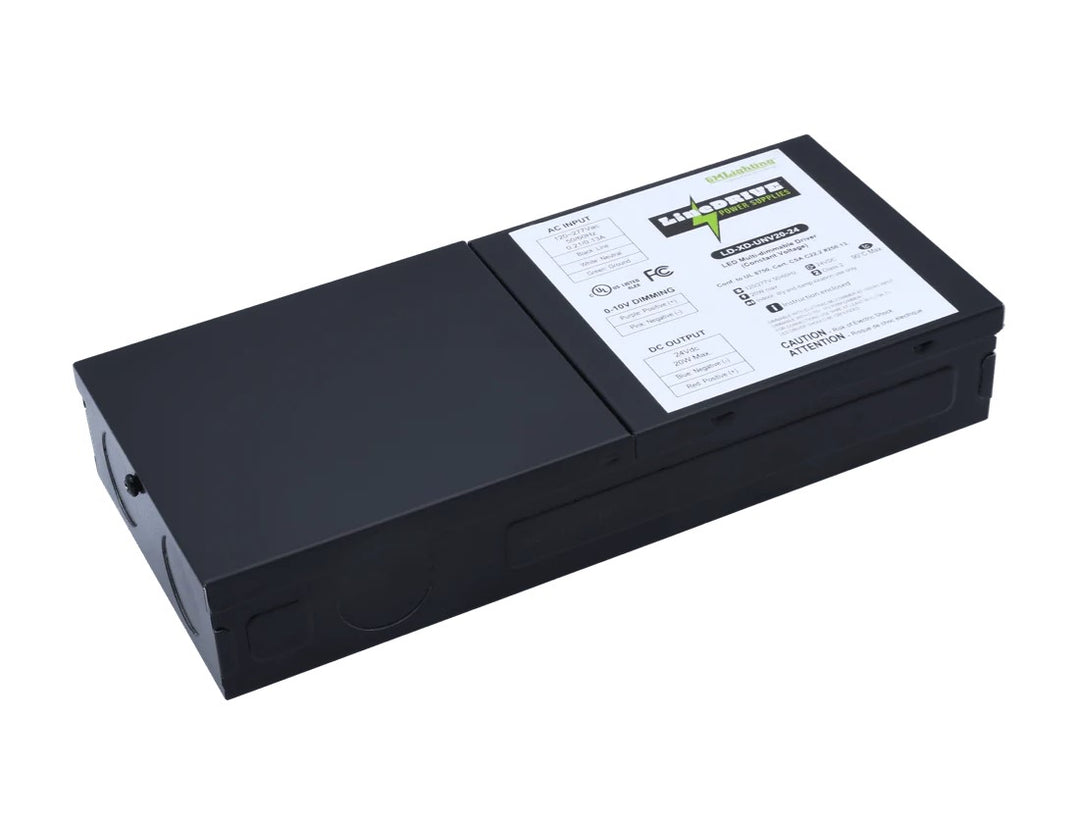

Gm Lighting LD-XD-UNV20-24 LineDRIVE Multi Dim LED Power Supplies 20W 24VDC

Product Description

The GM Lighting LD-XD-UNV20-24 is a 20W 24VDC LineDRIVE Multi-Dimmable LED Power Supply designed for stable operation with various dimmer controls. It supports Triac, ELV, MLV, and 0-10V dimmers, allowing dimming down to 1%. This Class 2 power supply features auto reset and integrated wiring compartments, ensuring easy installation and broad application compatibility for LED lighting systems.

• Compatible with Triac, ELV, MLV, 0-10V, and PWM dimmers for versatile control.
• Provides stable, flicker-free dimming down to 1% for precise light adjustment.
• Features integrated wiring compartments and protection against over-current, over-voltage, and over-temperature.

Product Highlights

This 20W 24VDC LED power supply offers multi-dimmable functionality, stable operation, and comprehensive protection for various LED lighting applications.

Product Information

Standard Information

• Brand: GM LIGHTING
• Manufacturer Part Number: LD-XD-UNV20-24

Technical Specifications

• MPN: LD-XD-UNV20-24
• Power: 20W
• Output Voltage: 24VDC
• Input Voltage: 120V or 277V
• Frequency: 50/60Hz
• Class: Class 2
• Reset Type: Auto Reset
• Output Type: Constant voltage
• Dimming Compatibility: Triac, ELV, MLV, 0-10V, PWM dimming
• Minimum Dimming Level: 1%
• Operation: Stable, flicker-free dimming
• Protection: Over-current, over-voltage and over-temperature protection
• Wiring Compartments: Integrated wiring compartments with separate line voltage and low voltage sections
• Line Voltage Compartment: Meets NEC code, up to (3) 12 AWG conductors
• UPC: 849951019019
• Lighting Technology: LED
• Driver Type: Electronic
• Open Circuit Voltage: 25V
• Current Output: Max 0.83A
• Input Leads: 12”, UL 1316/1015 #18AWG (Black, White and Green)
• Output Leads: 12”, UL 1316 #18AWG (Red and Blue)
• Dimming Leads: 12”, UL 1316/1430 #22AWG (Purple and Pink)
• Efficiency: 83% / 80% (120V/277V)
• THD: <20%
• Load Regulation: ± 5%
• Line Regulation: ± 5%
• Turn-On Delay Time: < 0.5s
• Power Factor: >0.94
• Surge Rating: 2.5KV
• Finish: Powder Coated
• Housing: Steel
• Rated Life: 85,000 Hours
• Max Case Temperature: 90°C
• Operating Temperature: -40°F to 140°F (-40°C to 60°C)
• Humidity: 5% to 95%
• Certifications: Title 24 Compliant, JA8 Compliant
• Environment: Damp Location
