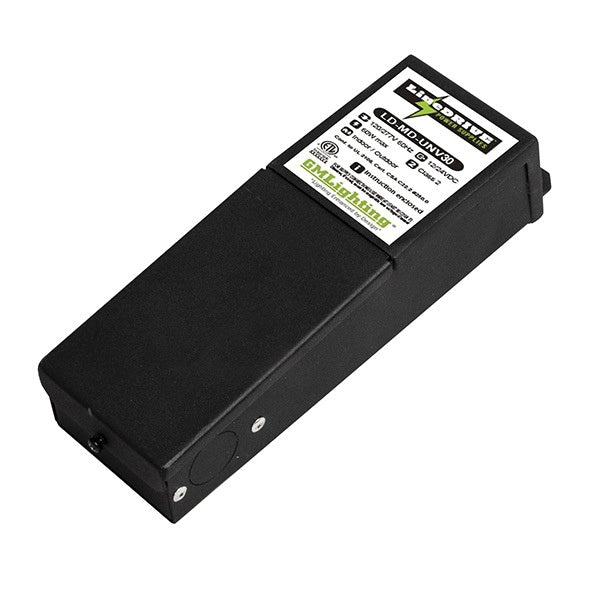

Gm Lighting LD-MD-UNV300-24 LED magnetic dimmable LineDRIVE power supply 288W 24VDC 120/277V input

Product Description

The GM Lighting LD-MD-UNV300-24 is an LED dimming magnetic power supply designed for indoor or outdoor applications. It features a 24VDC output and a versatile 120/277V AC input, delivering up to 288W. This Class 2 power supply works with conventional low voltage magnetic wall mount dimmers, offering auto-reset functionality and high efficiency. It is wet location rated and compatible with standard magnetic dimmers.

• Compatible with conventional low voltage magnetic wall mount dimmers and standard magnetic dimmers.
• Provides 24VDC output with a 120/277V AC input, supporting up to 288W.
• Features auto-reset functionality, high efficiency, and is rated for wet locations.

Product Highlights

LED dimming magnetic power supply with auto reset, suitable for indoor/outdoor wet locations.

Product Information

Standard Information

• Brand: GM LIGHTING
• Manufacturer Part Number: LD-MD-UNV300-24

Technical Specifications

• Product Type: Auto Reset, Class 2, Magnetic Dimmable, UNV
• Brand: GM Lighting
• Color: Black
• Material: Steel
• Sub-Brand: LineDRIVE
• Compatibility: Standard Low Voltage Magnetic Dimmers
• UPC: 849951015400
• Application Environment: For Indoor or Outdoor Applications
• Power Factor: 0.99
• Input Current: 1.15/2.63 A
• Input Voltage: 120/277 V
• Output Current: 4 A
• Output Voltage: 24 VDC
• Maximum Output Power: 288 W
• Operating Temperature: 0 - 104 degrees F
• Environmental Rating: Wet Location Rated
• Safety Listing: ETL
• Energy Star Certified: No
• NEMA Rating: NEMA 3R
• Mounting Type: Wall
• Efficiency: 85.0000 %
• Frequency: 50/60 Hz
