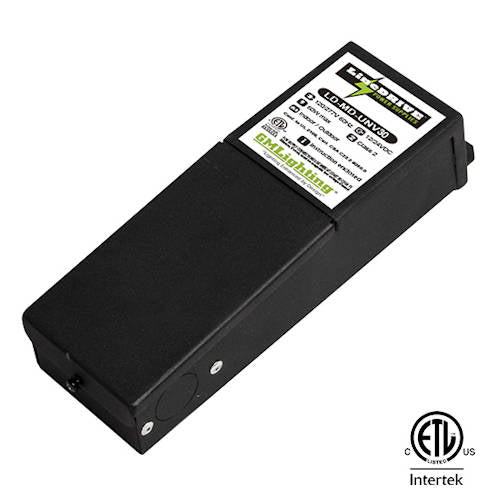

GM Lighting LD-MD-UNV30 12/24VDC 30W LED Magnetic Dimmable LineDRIVE Power Supply 120/277V Input

Product Description

The GM Lighting LD-MD-UNV30 is a dimmable magnetic power supply designed for 12VDC and 24VDC outputs. It operates on a wide input range of 120V or 277V AC, making it suitable for various environments. This power supply is ideal for use with low voltage magnetic dimmers and is not recommended for digital control systems.

• Compatible with standard low voltage magnetic dimmers
• Automatic reset for maximum efficiency
• Wet location rated for both indoor and outdoor applications

Product Highlights

The LD-MD-UNV30 features class 2 construction, ensuring safety and reliability in applications ranging from residential to commercial lighting.

Product Information

Standard Information

• Brand: GM Lighting
• Manufacturer PN: LD-MD-UNV30

Technical Specifications

• Input Voltage: 120/277 V
• Output Voltage: 12/24 VDC
• Max Output Power: 30 W
• Power Factor: 0.92
• Input Current: 146/342 mA
• Output Current: 1.5/2.5 A
• Width: 2.5 inches
• Height: 1.95 inches
• Length: 8.27 inches
• Material: Steel
• Temperature Rating: 0 to 104 degrees Fahrenheit
