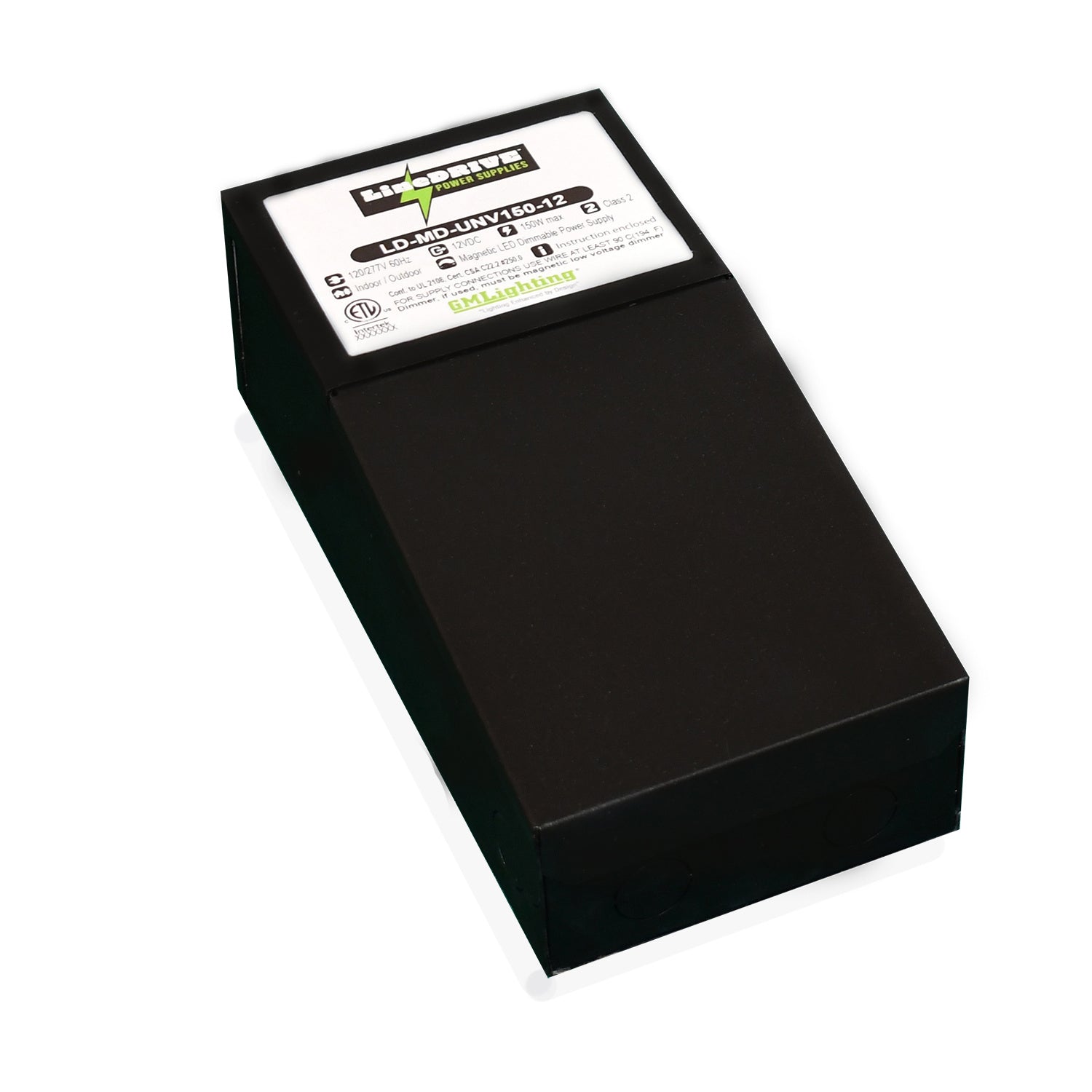

GM Lighting LD-MD-UNV150-12 12VDC 150W LED Magnetic Dimmable LineDRIVE Power Supply 120/277V Input

Product Description

The GM Lighting LD-MD-UNV150-12 is a magnetic dimmable power supply designed for LED applications. It provides a steady output of twelve volts direct current at a maximum power of 150 watts. The unit supports dual input voltage of one hundred twenty or two hundred seventy-seven volts alternating current. This power supply is fully compatible with conventional low voltage magnetic dimmers.

• Magnetic dimming for flexibility
• Compatible with standard low voltage dimmers
• Auto reset feature for improved efficiency

Product Highlights

This power supply is suitable for both indoor and outdoor applications and is rated for wet locations.

Product Information

Standard Information

• Brand: GM Lighting
• Manufacturer Part Number: LD-MD-UNV150-12

Technical Specifications

• Input Voltage: 120/277 V
• Output Voltage: 12 VDC
• Max Output Power: 150 W
• Input Current: 0.57/1.33 A
• Output Current: 4 A
• Temperature Rating: 0 - 104 degrees F
• Power Factor: 0.98
• Environmental Conditions: Wet Location Rated
