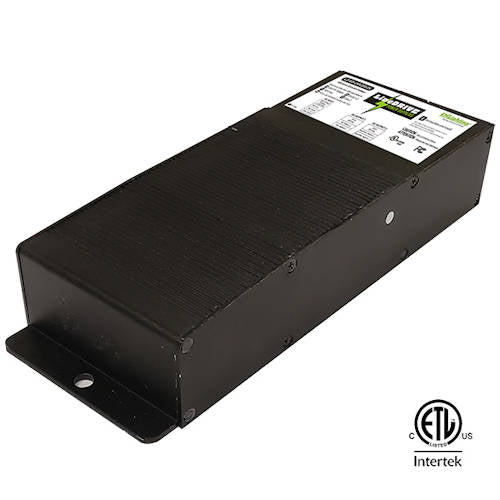

Gm Lighting LD-ED-UNV40-24 ELV Transformer Dimmable 40W 24V DC 120V or 277V Class 2 Auto Reset

Product Description

The GM Lighting LD-ED-UNV40-24 is a 24VDC 40W LED Electronic Dimmable LineDRIVE Power Supply. It is Class 2 rated and encased in a low profile enclosure with two knock-outs for easy installation. This power supply delivers 24VDC output and is compatible with 120V or 277V input systems. It supports ELV/TRIAC dimmers and features auto reset functionality.

• Provides 24VDC output for LED applications.
• Features electronic dimming capabilities, compatible with ELV/TRIAC dimmers.
• Class 2 rated with two knock-outs for straightforward installation.

Product Highlights

Low profile, Class 2 rated power supply with electronic dimming and auto reset.

Product Information

Standard Information

• Brand: GM LIGHTING
• Manufacturer Part Number: LD-ED-UNV40-24

Technical Specifications

• Type: Electronic
• Finish: Black
• Safety Listing: ETL
• Dimmable: Yes
• Input Voltage: 120/277V
• Output Voltage: 24VDC
• Power Output: 40W
• Frequency: 50/60Hz
• Output Current: 1.66A
• Dimming Type: ELV / TRIAC (Leading Edge)
• Power Factor: 0.96
• Class Rating: Class 2
• Reset Feature: Auto Reset
• Protection Features: Over Current Protection, Short Circuit Protection
• FCC Compliance: Yes
