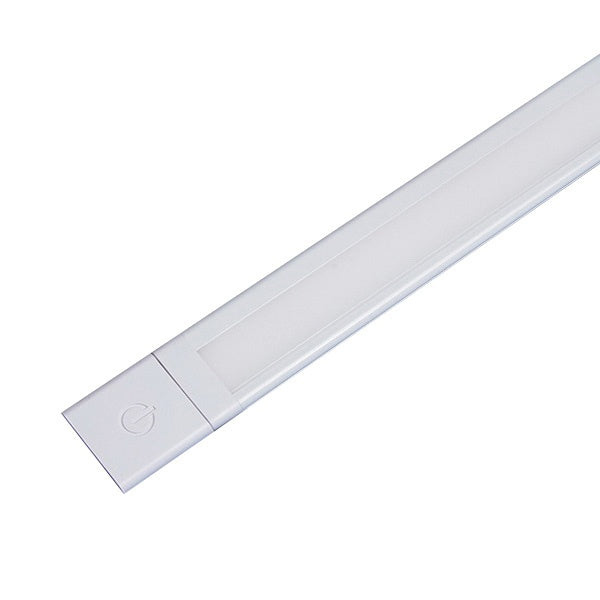

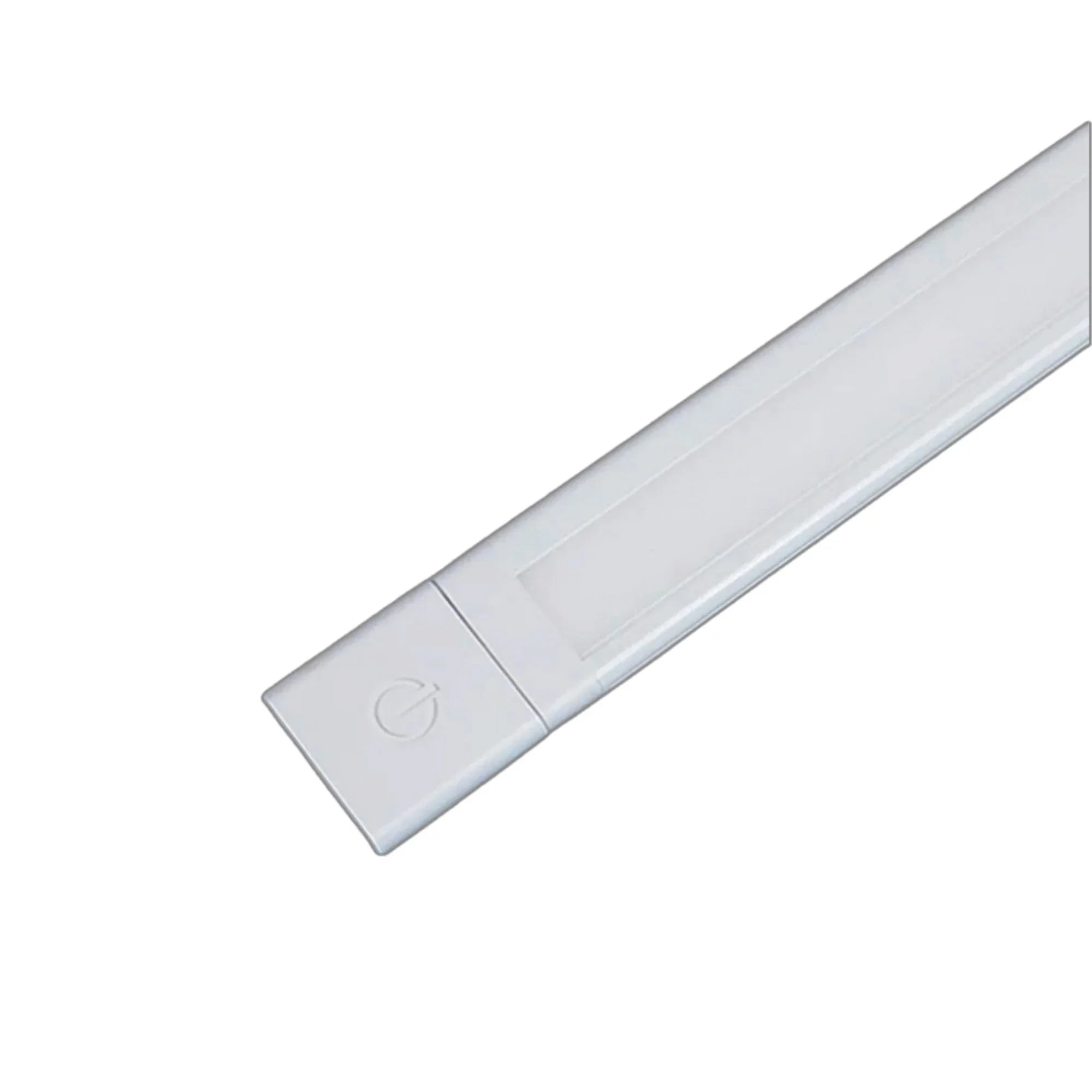

Gm Lighting EDGE-24-30-W Modular LED Linear Under Cabinet Architectural Light Bar 10W 24 Inch

Product Description

The GM LIGHTING EDGE-24-30-W is a 24VDC lighting solution, consuming 10W and delivering 550 lumens at a warm 3000K color temperature. It features a high color rendering index of 90+ CRI and measures 24 inches (610mm) in length. This modular LED linear under-cabinet architectural light bar is suitable for dry locations and offers even luminance with its edge-lit technology, preventing diode imaging on polished surfaces. It is cETLus certified and dimmable.

• Operates on 24VDC with 10W power consumption and 550 lumens output.
• Features a high color rendering index (90+ CRI) and 3000K color temperature.
• Modular design includes mounting clips and screws for secure installation.

Product Highlights

The GM LIGHTING EDGE-24-30-W is a 24-inch, 10W, 24VDC modular LED linear light bar with 550 lumens and 90+ CRI, ideal for under-cabinet architectural lighting.

Product Information

Standard Information

• Brand: GM LIGHTING
• Manufacturer Part Number: EDGE-24-30-W

Technical Specifications

• Brand: GM Lighting
• MPN: EDGE-24-30-W
• Input Voltage: 24VDC
• Power Consumption: 10W
• Power per Foot: 5W per foot
• Lumens: 550 lumens
• Color Temperature: 3000K
• CRI: 90+
• Length: 24 inches (610mm)
• Mounting Type: Screw
• Product Type: LED Linear Under Cabinet Architectural Light Bar
• Included Components: (2) Mounting Clips with Screws, (1) Lightbar to Power Supply Connector GMC-PS-24, (1) Rigid Bar to Bar Connector EDGE-BB-1
• Finish: White
• Dimmable: Yes
• Certifications: cETLus Certified
• Lamp Type: LED
• Lamp Included: No
• Collection: SlimEdge™
• Average Life: 50000 Hour
• Type: Modular
• Energy Star Rated: No
• Material: Aluminum
• Enclosure Rating: Dry Rated
• Maximum Run Length: 16 feet
• Class: 2
