Product Description

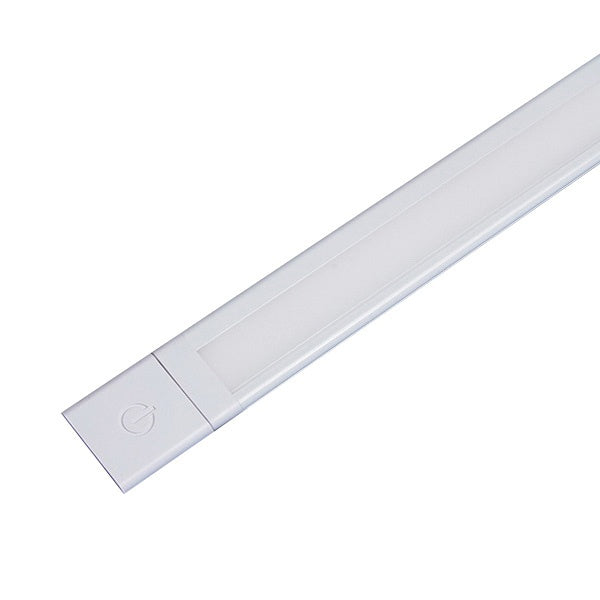

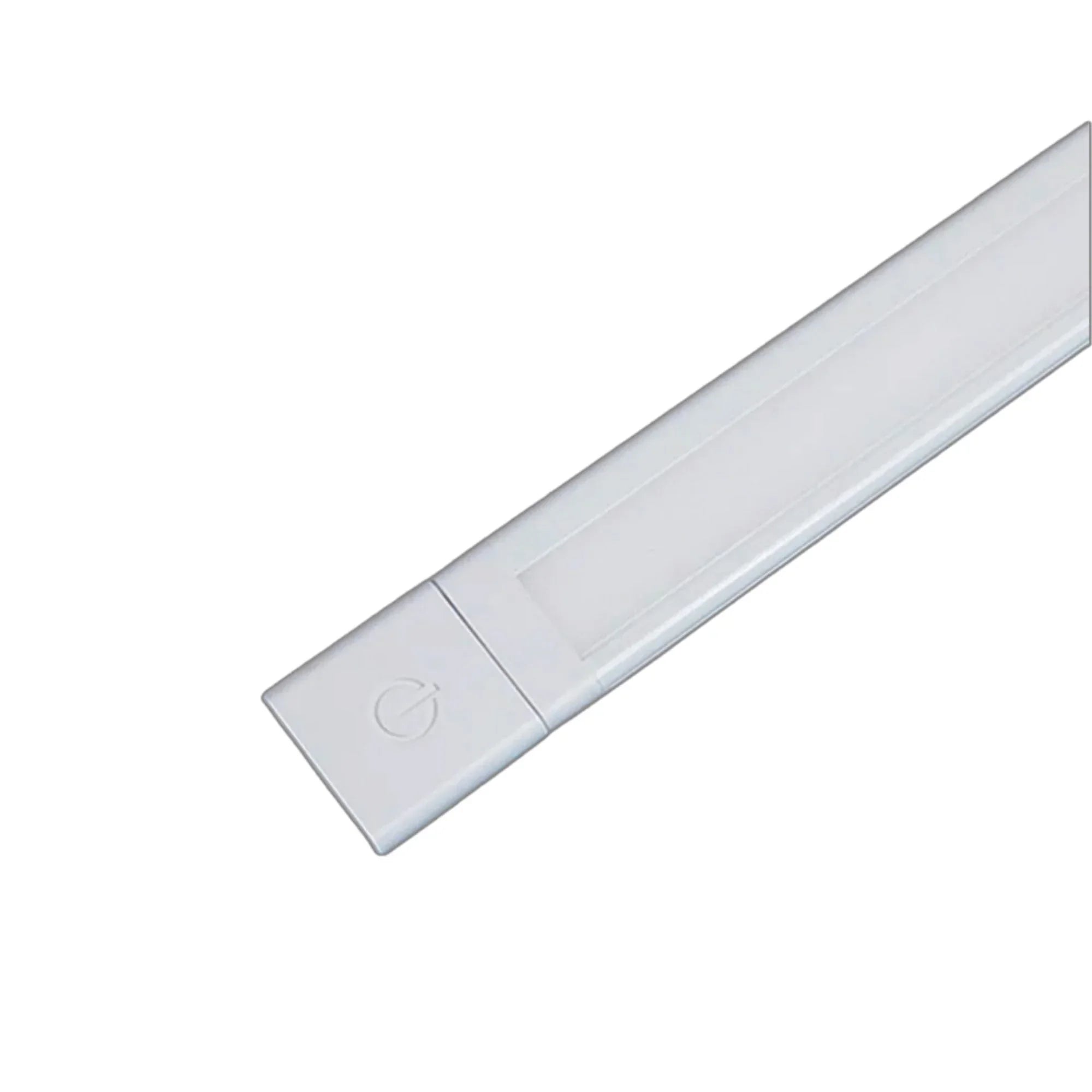

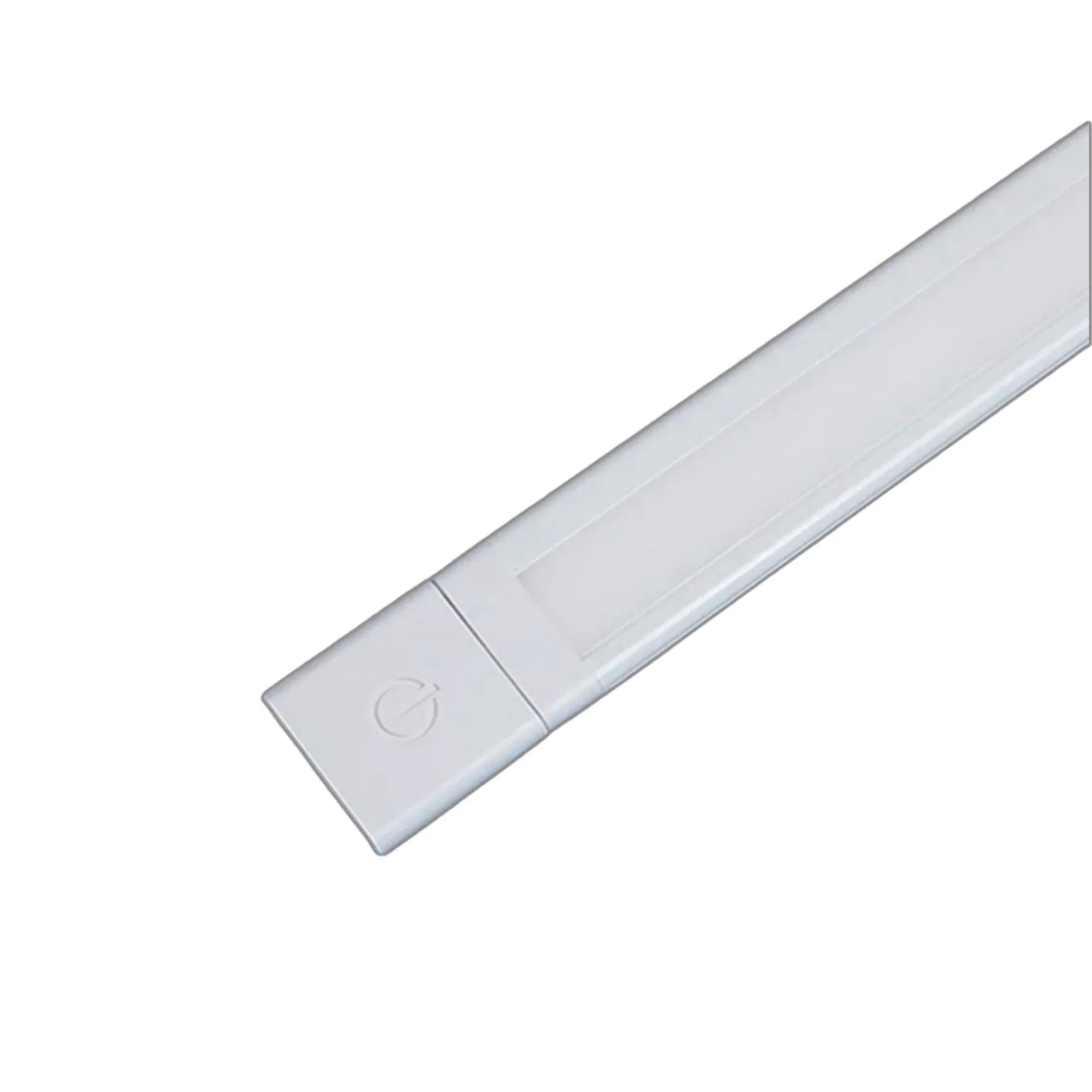

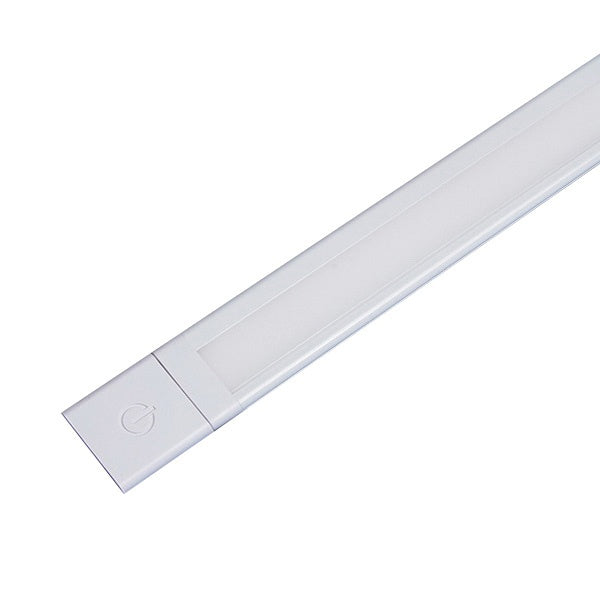

The GM LIGHTING EDGE-16-30-W is a 24VDC modular LED linear under cabinet architectural light bar. It delivers 325 lumens at 3000K with a 90+ CRI, providing efficient and accurate color rendering. This 6W, 16-inch light bar is designed for dry locations, offering uniform illumination for various applications. Its slim profile and modular design allow for versatile configurations.
- 24VDC operation with 6W power consumption and 325 lumens output at 3000K.
- Features 90+ CRI for accurate color rendering and is suitable for dry locations.
- Modular design with included mounting clips and connectors for versatile installation.
Product Highlights
This modular LED light bar provides efficient, high-CRI illumination for undercabinet and architectural applications.
Product Information
Standard Information
-
Brand: GM LIGHTING
-
Manufacturer Part Number: EDGE-16-30-W
Technical Specifications
-
Manufacturer: GM LIGHTING
-
Input Voltage: 24VDC
-
Power Consumption: 6W
-
Lumens Output: 325 lumens
-
Color Temperature: 3000K
-
CRI: 90+
-
Length: 16 inches (406mm)
-
Product Type: Modular LED Linear Under Cabinet Architectural Light Bar
-
Included Accessories: (2) Mounting Clips with Screws, (1) Lightbar to Power Supply Connector GMC-PS-24, (1) Rigid Bar to Bar Connector EDGE-BB-1
-
Finish: White
-
Dimmable: Yes (with compatible 24V DC dimmable power supply)
-
Dimensions: 16 Inch Length x 1-1/2 Inch Width x 3/8 Inch Height
-
Certifications: cETLus Certified
-
Lamp Type: LED
-
Rated Life: 50,000 Hours
-
Design Type: Modular
-
Collection: SlimEdge
-
Mounting Type: Screw (Surface mount with included clips, 0-90° with optional mounting clip)
-
Location Rating: Dry Rated
-
Material: Aluminum
-
Lighting Technology: Edge-lit
-
Electrical Class: Class 2
-
Maximum Run: 16 feet
-
Power Supply Requirement: 24VDC remote power supply
