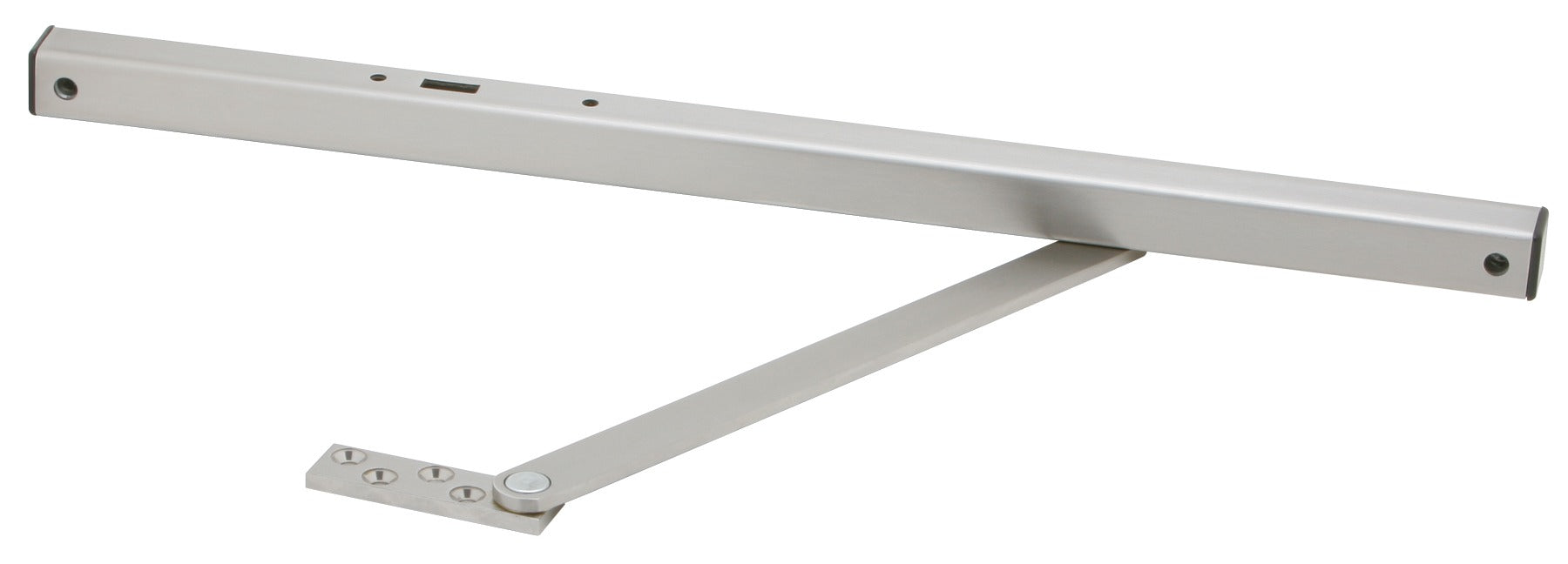

Glynn Johnson 902S32D Surface Overhead Stop Size 2

Product Description

The GLYNN JOHNSON 902S32D is a Size 2 heavy duty surface overhead stop designed for commercial and institutional door control applications. It mounts to the door surface and overhead frame to limit door swing travel, protecting walls, partitions, and door hardware from impact damage. The 902S32D is finished in satin stainless steel, making it well-suited for high-traffic environments where corrosion resistance and appearance retention are required. At 25.98 inches in length, this overhead stop is built for doors that see demanding daily use. Installation is handled by commercial door hardware specialists or general contractors working on interior hollow metal or wood door assemblies.

Surface overhead stops are a standard specification item in commercial construction, healthcare facilities, schools, government buildings, and institutional interiors. The 902S32D fits applications where a concealed overhead stop is not feasible or cost-effective, and a durable surface-mounted solution is preferred. Its heavy duty classification makes it appropriate for high-cycle doors in corridors, stairwells, and service areas.

Key Features

• Heavy duty construction rated for high-traffic, high-cycle door applications
• Surface-mounted overhead stop limits door swing to protect walls and hardware
• Satin stainless steel finish for corrosion resistance in demanding environments
• Size 2 designation for compatibility with standard commercial door widths
• Compact profile at 2.13 inches wide and 1.65 inches high

Compatibility

Designed as an OEM-style surface overhead stop for commercial interior door assemblies requiring Size 2 heavy duty door travel control hardware.

Installation Notes

Installation is typically performed by a commercial door hardware installer or finish hardware contractor. Power down any electronic door hardware or access control devices associated with the opening before beginning work. The stop must be mounted to both the door face and the overhead frame or soffit using appropriate fasteners for the substrate. Verify door width and frame construction before installation to confirm the Size 2 designation is the correct fit for the opening.
