Glynn Johnson 454S32D Size 4 Surface Overhead Stop

Product Description

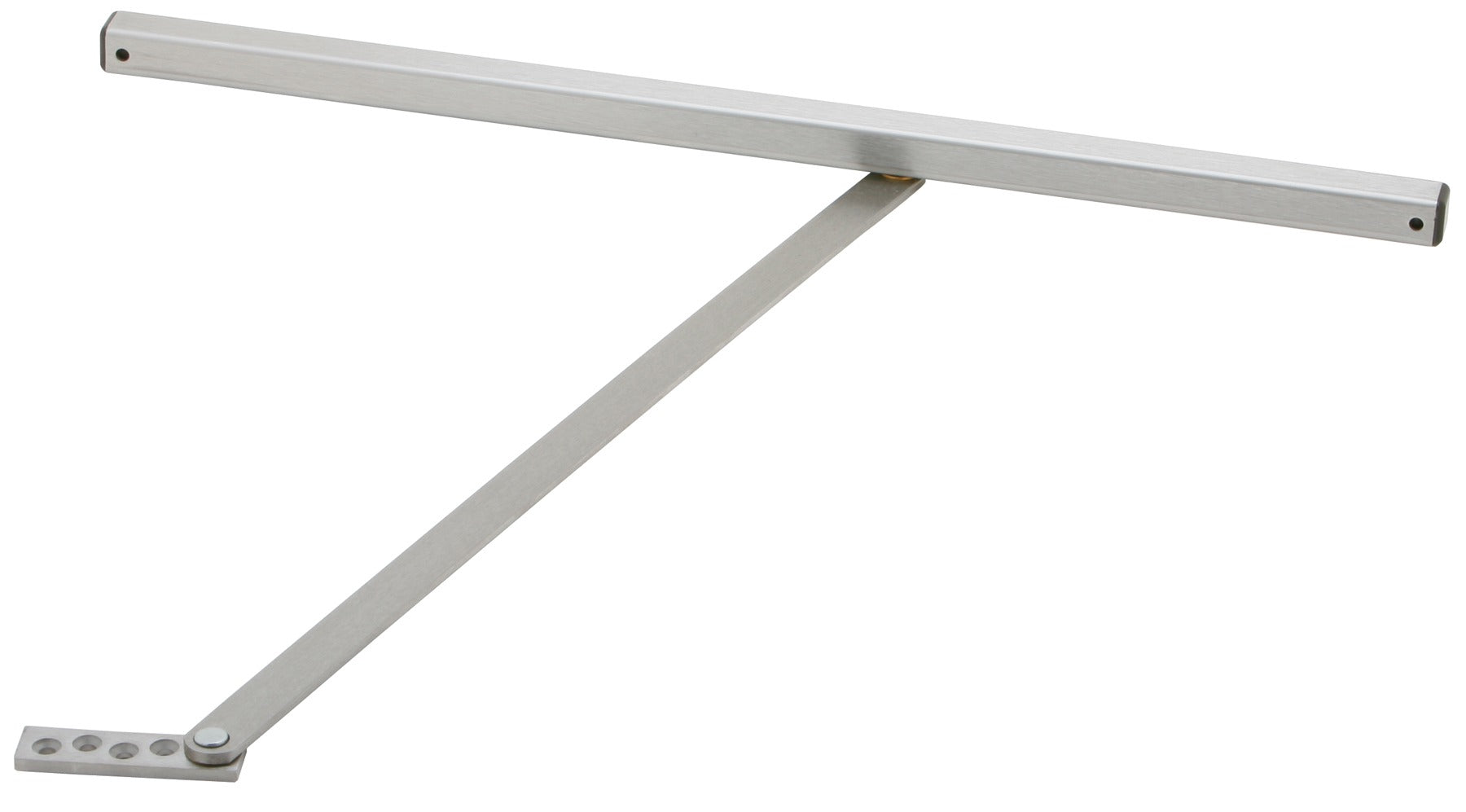

The GLYNN JOHNSON 454S32D is a medium duty, size 4 surface-mounted overhead stop designed to control door swing and protect walls, frames, and hardware from impact damage. Finished in satin stainless steel, this overhead stop mounts directly to the door and frame head without a concealed track, making it a practical choice for new construction and retrofit installations. At 26 inches in length, 2.5 inches in width, and 1.7 inches in height, it delivers a compact profile suited to commercial door openings. Installation is handled by commercial door hardware installers and general contractors working to door hardware specifications.

The 454S32D is suited for medium duty commercial applications where a surface-mounted stop is preferred over a floor or wall stop. Typical installations include office corridors, healthcare facilities, and light commercial buildings where door control and hardware protection are required. The satin stainless steel finish provides corrosion resistance appropriate for high-traffic interior environments. One unit is sold per order.

Key Features

• Medium duty, size 4 surface overhead stop for commercial door openings
• Satin stainless steel finish for corrosion resistance in high-traffic interiors
• Surface-mounted design simplifies installation on door and frame head
• Compact profile: 26 inches long, 2.5 inches wide, 1.7 inches tall
• Sold individually as a single unit

Compatibility

Designed as an OEM-style surface overhead stop replacement or new-installation fitting for medium duty commercial door hardware applications.

Installation Notes

Installation is typically performed by a licensed door hardware installer or qualified commercial contractor. Confirm door size and frame construction are rated for a size 4 medium duty overhead stop before mounting. Secure all fasteners to manufacturer specifications and verify full door swing clearance before returning the door to service. Follow applicable local building codes and door hardware standards during installation.
