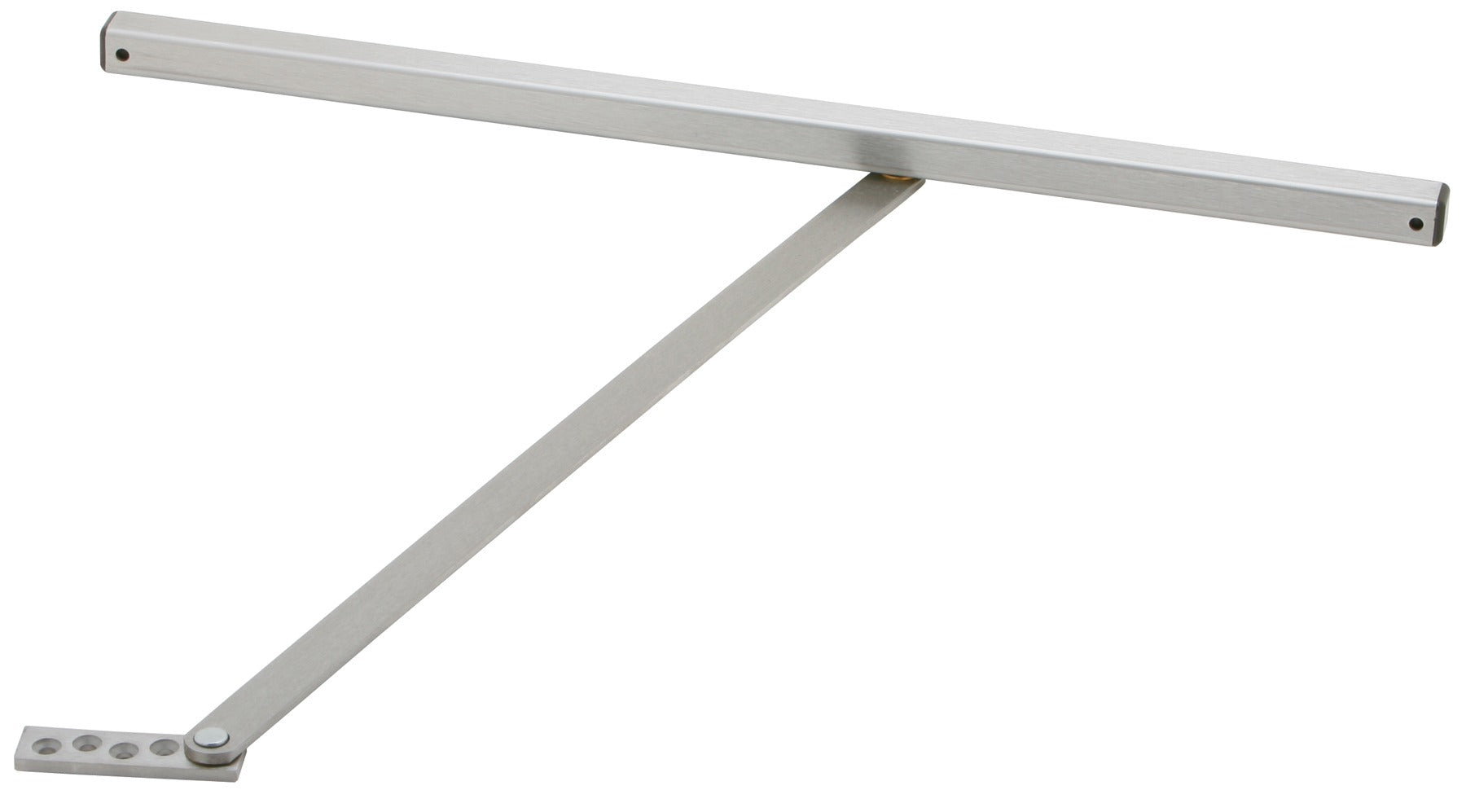

Glynn Johnson 453S32D Medium Duty Surface Overhead Stop

Product Description

The GLYNN JOHNSON 453S32D is a medium duty, size 3 surface overhead stop designed to control door swing and protect walls, frames, and hardware from impact damage. The unit mounts to the door header or transom bar area and limits door travel at a set open position. At 25.7 inches in length, it is built for standard commercial door openings where a concealed overhead closer is not required. The satin stainless steel finish provides corrosion resistance suitable for demanding environments. Installation is performed by a licensed door hardware technician or commercial locksmith working within applicable building code requirements.

This overhead stop is suited for commercial and institutional interior door applications including offices, corridors, healthcare facilities, and educational buildings. It is a surface-mounted unit, meaning no routing or mortising into the door or frame is required. The size 3 designation corresponds to a standard door width range typical of commercial openings. This stop functions as a standalone holder and stop, independent of any door closer mechanism.

Key Features

• Surface-mounted overhead stop eliminates need for floor or wall stop hardware
• Size 3 medium duty construction suited for standard commercial door widths
• Satin stainless steel finish resists corrosion in high-traffic or high-humidity environments
• 25.7 inch body length accommodates standard commercial door header clearances
• Compact 1.7 inch width and 1.7 inch height profile for low visual impact
• Sold individually as a single unit

Compatibility

Designed as an OEM-style surface overhead stop replacement or new installation fitting for standard commercial interior door frames accepting medium duty size 3 overhead stop hardware.

Installation Notes

Installation should be performed by a qualified door hardware technician or commercial locksmith familiar with door control hardware. Ensure the door and frame are aligned and all closer hardware is properly adjusted before mounting the stop arm. Follow ANSI and applicable local building code requirements for door hardware fastener placement and load ratings. Verify that the header or transom bar has sufficient substrate thickness to accept the required fasteners before final installation.
