Globe Fire Sprinkler 332706 Cover Plate 135F White 3.3125 in

Product Description

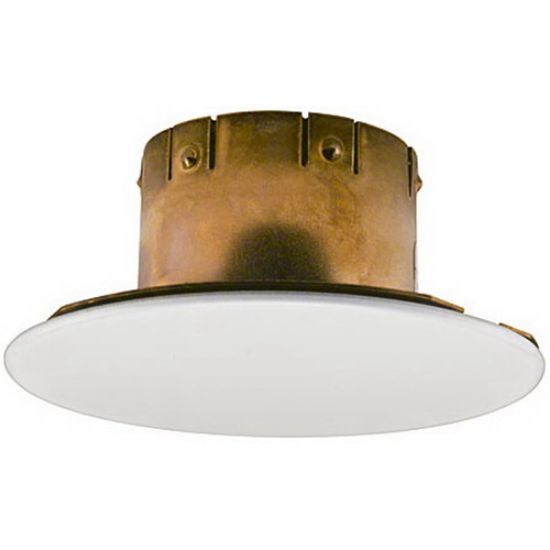

The Globe Fire Sprinkler 332706 is a white cover plate designed for use with concealed pendant fire sprinkler heads. It provides a flush, finished appearance at the ceiling surface while concealing the recessed sprinkler body above. The cover plate is rated to release at 135 degrees F, allowing the sprinkler head to activate when ambient temperatures indicate a fire event. With a diameter of 3.3125 inches, it fits standard residential and light commercial ceiling applications. Installation is performed by licensed fire protection contractors as part of a concealed pendant sprinkler system.

This cover plate is used in concealed pendant fire sprinkler installations where a clean ceiling appearance is required. It is appropriate for residential and light commercial occupancies where concealed sprinkler heads are specified. The white finish integrates with standard painted ceilings. The cover plate snaps onto the sprinkler escutcheon cup and remains in place until heat causes it to drop away, exposing the sprinkler deflector for operation. Compatible pendant heads include the GL5606 and GL5653 concealed pendant sprinklers.

Key Features

• Thermal release rating of 135 degrees F for timely activation under fire conditions
• Diameter of 3.3125 inches fits standard concealed pendant sprinkler escutcheon cups
• White finish for a clean, finished ceiling appearance
• Designed for use with GL5606 and GL5653 concealed pendant sprinkler heads
• Snap-on attachment conceals the recessed sprinkler assembly above the ceiling plane

Compatibility

Designed for use with Globe Fire Sprinkler GL5606 and GL5653 concealed pendant sprinkler heads.

Installation Notes

Installation and service of fire sprinkler cover plates must be performed by a licensed fire protection contractor in accordance with NFPA 13 and applicable local codes. Always confirm the sprinkler system is properly shut down and depressurized before servicing any component. Do not paint, coat, or obstruct the cover plate, as this may interfere with thermal release. Verify that the correct temperature-rated cover plate is matched to the installed sprinkler head prior to installation.

Technical Specifications

• Temperature Rating: 135 degrees F
• Diameter: 3.3125 inches
• Color: White
• Compatible Sprinkler Models: GL5606, GL5653
• Sprinkler Type: Concealed Pendant

Standard Information

• Brand: Globe Fire Sprinkler
• Manufacturer Part Number: 332706
