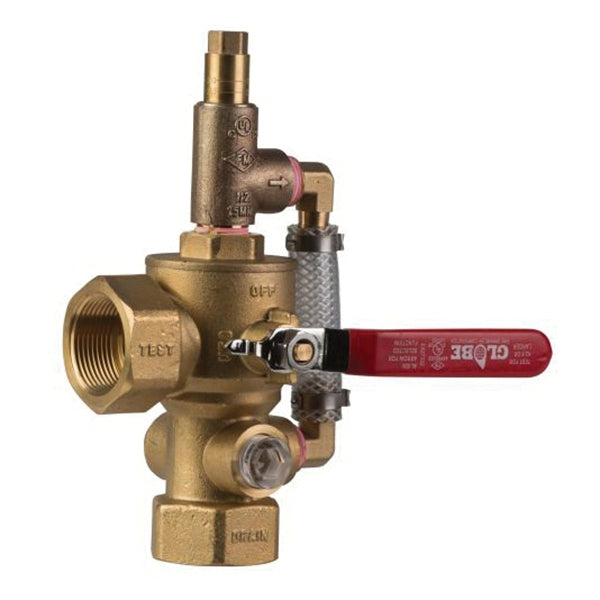

Globe 311733 UTD Bronze Universal Test and Drain Valve with Relief Valve 2 in

Product Description

The Globe model 311733 is a UTD bronze universal test and drain valve. It functions to drain a sprinkler system and perform a required water flow test with one valve and a single handle. This integration reduces the need for two separate valves, simplifying installation and maintenance.

• Test orifice k-factor of 2.8 (40.3 metric)
• UL listed and meets NFPA 13 requirements
• Two integrated ports with Lexan plugs for visual flow indication

Product Highlights

A reliable solution for wet-pipe sprinkler systems, the Globe 311733 test and drain valve combines efficiency and functionality.

Product Information

Standard Information

• Brand: Globe
• Part Number: 311733

Technical Specifications

• Connection Size: 2 inches
• Applications: For use in wet-pipe sprinkler systems
• Standards/Certifications: cULus listed and FM Approved
• Ports: Two integrated ports with Lexan plugs
• Handle Type: EPDM 3-way red handle
• Drain Connection: Optional pressure relief valve
• End Connections: Threaded for sizes 3/4 to 2 inches, grooved for sizes 1-1/4 to 2 inches
