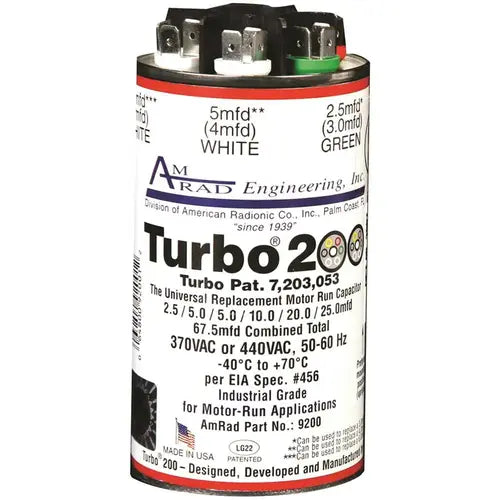

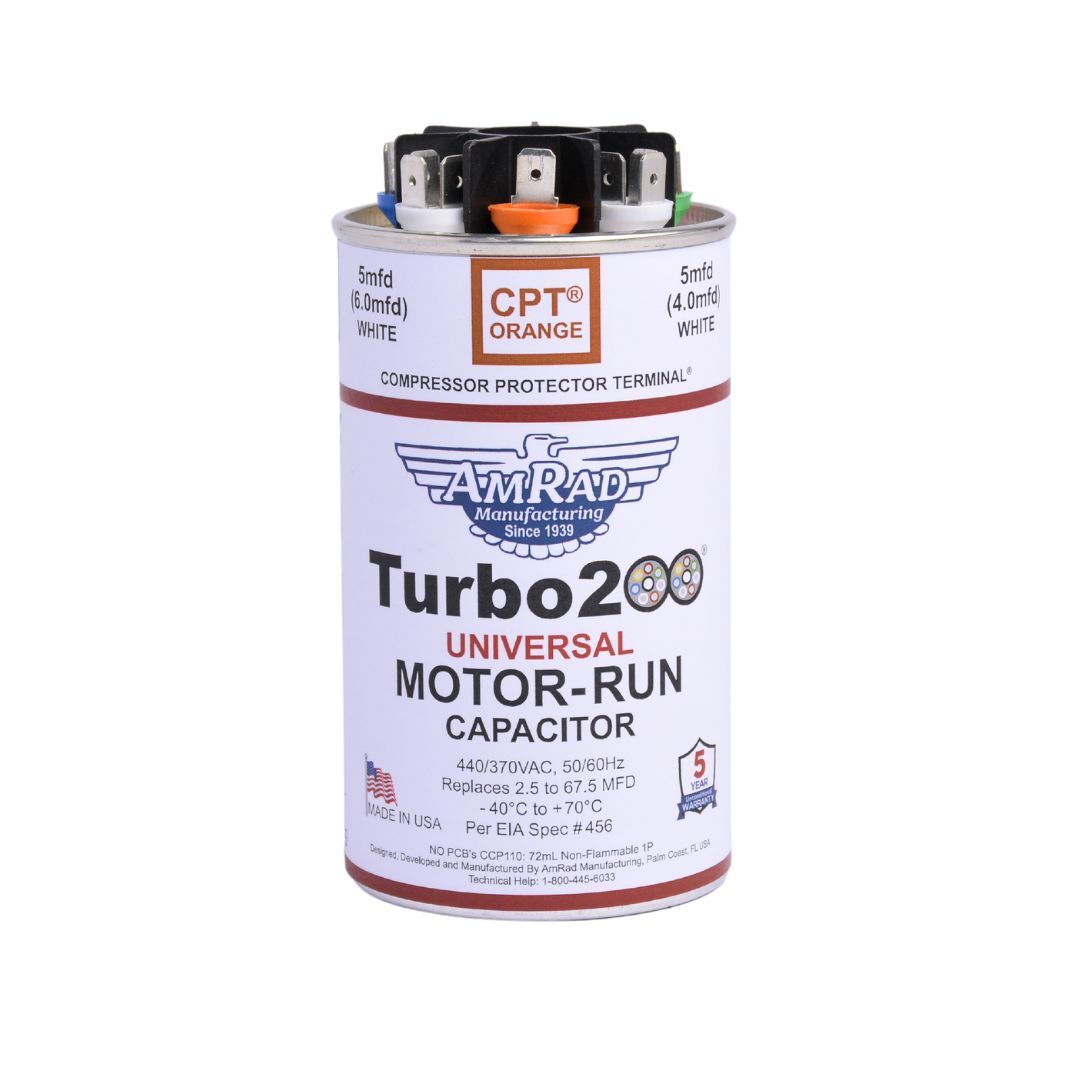

Global The Source turbo200 universal motor run capacitor 2.5 to 67.5 uf 440 vac round

Product Description

The GLOBAL THE SOURCE TURBO200 is a universal motor run capacitor with a capacitance range of 2.5 to 67.5 uF and a voltage rating of 440 VAC. This round capacitor features six terminals with three blades and one terminal with four blades. It is suitable for both single and dual value usage.

• Capacitance range of 2.5 to 67.5 uF
• Voltage rating of 440 VAC
• Suitable for single and dual value usage

Product Highlights

Universal motor run capacitor with wide capacitance range, ideal for HVAC and motor applications.

Product Information

Standard Information

• Brand: GLOBAL THE SOURCE
• Manufacturer Part Number: TURBO200
• Country of Origin: USA

Technical Specifications

• Capacitance: 2.5 to 67.5 uF
• Voltage Rating: 440 VAC
• Shape: Round
• Type: Universal
• Case Material: Aluminum
• Cover Material: Terne Plate Steel
• Minimum Temperature Range: -40 Degrees C
• Maximum Temperature Range: 70 deg. C
• Maximum Working Temperature: 70 C
• Minimum Working Temperature: -40 C
• Microfarad: 2.5-67.5
• Volt: 370-440V
• Model No.: TURBO200
• HVAC Product Type: Motor Capacitor
• Capacitor Type: Motor Run
• Package Quantity: 1
• Capacitor Shape: Round
• Assembled Product Depth: 2.5 in.
• Assembled Product Height: 4.5 in.
• Assembled Product Width: 2.5 in.
