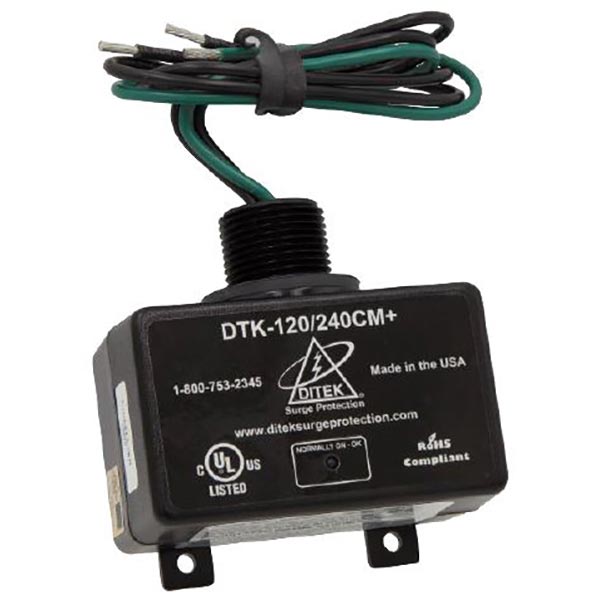

Global The Source DTK-120/240CM+ Multi-Purpose Surge Protector, Electrical Ratings: 120 to 240 V, 50/60 Hz, 100 kA Short Circuit

Product Description

The Global The Source DTK-120/240CM+ is a multi-purpose surge protector designed to protect HVAC condensers, pool or well pumps, motors, and incoming utility power. This surge protective device has electrical ratings ranging from one hundred twenty to two hundred forty volts and operates within fifty and sixty hertz frequencies.

• Ideal for HVAC and pool applications
• Easy installation via parallel connection
• LED indicator for power and ground presence

Product Highlights

This surge protector includes a weatherproof NEMA 4X enclosure, ensuring durability in various environments.

Product Information

Standard Information

• Brand: Global The Source
• Part Number: L4996

Technical Specifications

• Dimensions: 3.5 inches H x 1.89 inches W x 3.4 inches D
• Electrical Ratings: 120 to 240 V
• Enclosure Type: NEMA 4X
• Frequency Rating: 50/60 Hz
• Indicator Type: LED
• Modes of Protection: L-G/L-L
• Nominal Discharge Current: 10 kA
• Peak Surge Current: 50000 A
• Short Circuit Current Rating: 100 kA
