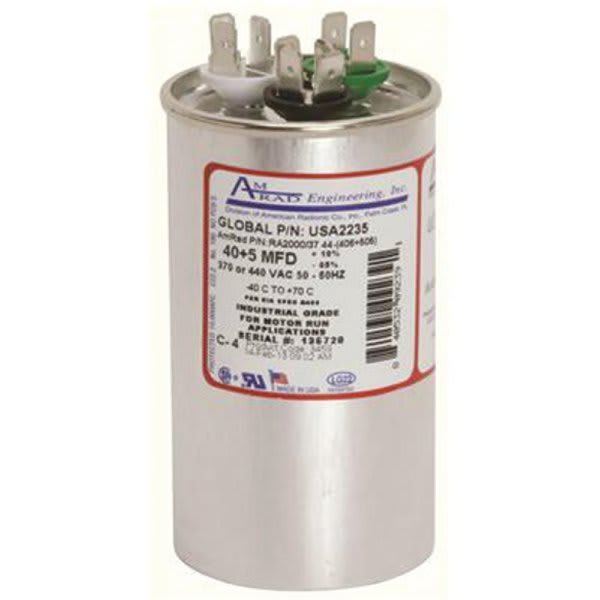

Global Source USA2235 dual capacitance 40/5 MFD 370/440 V

Product Description

The GLOBAL SOURCE USA2235 dual capacitance capacitor is made in the USA and features rust-free brass terminals. Each capacitor is individually tested and labeled with exact MFD ratings and is UL/CSA recognized. It is also ROHS 3 compliant and filled with a thick non-PCB dielectric fluid to reduce heat.

• Made in the USA
• Features rust-free all brass terminals
• Individually tested and labeled with exact MFD rating

Product Highlights

This capacitor is designed for use with 370 or 440 VAC systems.

Product Information

Standard Information

• Brand: GLOBAL SOURCE
• Manufacturer Part Number: USA2235
• Country of Origin: USA

Technical Specifications

• Voltage: 370/440 V
• Terminals: Rust-free all brass terminals
• Compliance: ROHS 3 compliant
• Recognition: UL/CSA Recognized
• Type: Run Capacitor
• Configuration: Run
• Connections: Dual
• Shape: Round
• Case Material: Aluminum
• Frequency Rating: 50/60 Hz
• Series: USA-Made Capacitors
• Standard Tolerance: +/-5 %
• Temperature Rating: -40 to 70 deg C
• Terminal Type: Quad
• MFD Rating: 40+5 uF
• Diameter: 2.15 in
• Height: 4.2 in
• Capacitor Type: Motor Run Capacitor
• Maximum Working Temperature: 70 C
• Microfarad: 40/5
• Minimum Working Temperature: -40 C
• Package Quantity: 1
• Product Depth: 2.5 in.
• Product Height: 3.9 in.
• Product Width: 2.5 in.
• Certifications & Standards: UL Listed, RoHS Compliant, CSA Listed
