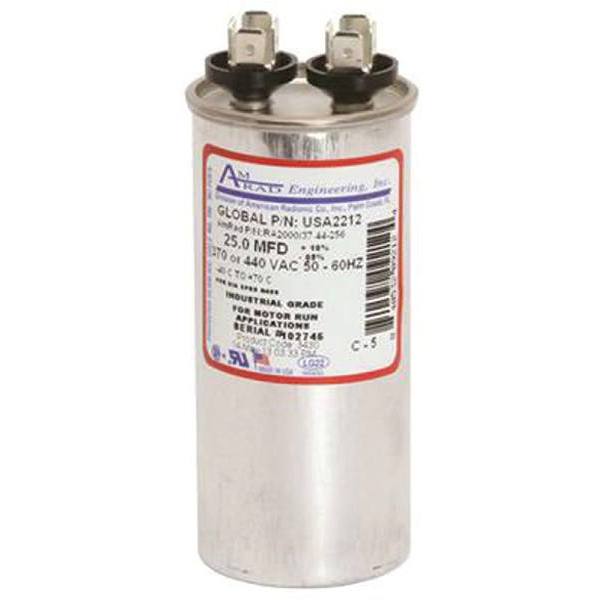

Global Source USA2212 Motor Run Capacitor 25 Mfd 370/440 VAC REPLACEMENT USA2212

Product Description

The GLOBAL SOURCE USA2212 is a motor run capacitor rated at 25 Mfd and 370/440 VAC. It is filled with a thick non-PCB dielectric fluid to reduce heat and is UL/CSA recognized and OEM approved. The capacitor is individually tested and labeled with the exact Mfd rating upon completion of manufacturing.

• Individually tested and labeled with exact Mfd rating
• Filled with a thick non-PCB dielectric fluid to reduce heat
• UL/CSA Recognized and OEM Approved

Product Highlights

This round motor run capacitor is ideal for various motor applications, ensuring reliable performance and longevity. It operates within a temperature range of -40 C to 70 C.

Product Information

Standard Information

• Brand: GLOBAL SOURCE
• Manufacturer Part Number: USA2212
• Country of Origin: USA

Technical Specifications

• Capacitor Shape: Round
• Capacitor Type: Motor Run Capacitor
• Frequency: 50/60 Hz
• Maximum Working Temperature: 70 C
• Microfarad: 25
• Minimum Working Temperature: -40 C
• Voltage: 370/440 V
• Product Depth: 1.75 in.
• Product Height: 3.9 in.
• Product Width: 1.75 in.
