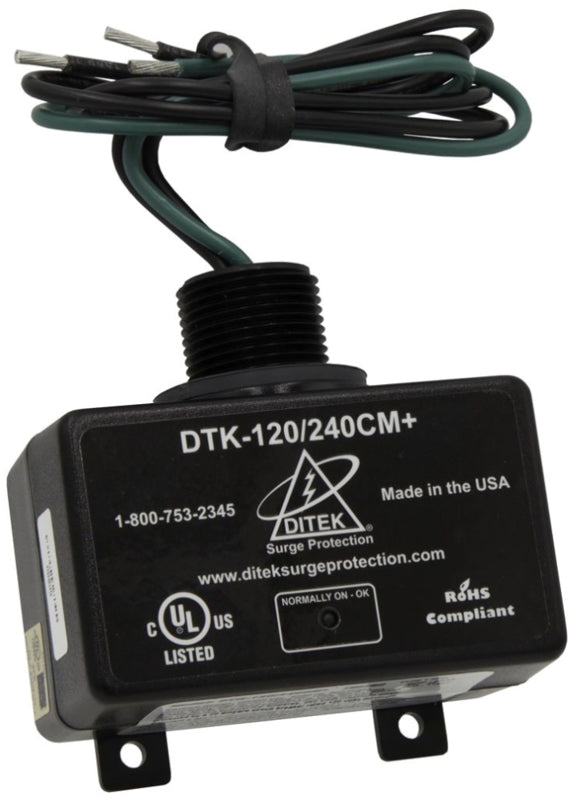

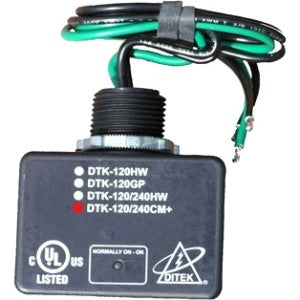

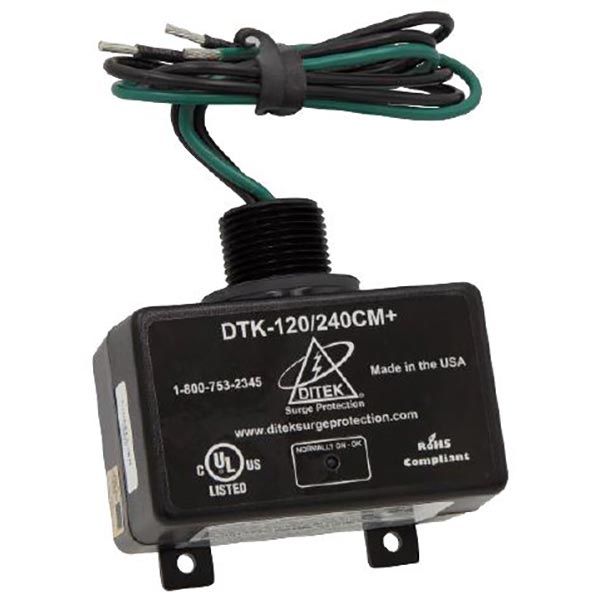

Global Source DTK-120/240CM+ Ditek Surge Protection 120/240 Volts Surge Protector

Product Description

The GLOBAL SOURCE DTK-120/240CM+ Ditek Surge Protection is a 120/240 Volts surge protector. It is a multi-purpose surge protection device ideal for protecting HVAC condensers, pool or well pumps, motors and incoming utility power. Features a parallel connection for easy installation and a NEMA 4X weatherproof enclosure.

• Multi-purpose surge protection device ideal for protecting HVAC condensers, pool or well pumps, motors and incoming utility power
• Parallel connection for easy installation
• Diagnostic LED provides indication of power, ground presence and SPD function

Product Highlights

This surge protector offers effective, economical surge protection and is suitable for a variety of locations.

Product Information

Standard Information

• Brand: GLOBAL SOURCE
• Manufacturer Part Number: DTK-120/240CM+

Technical Specifications

• Type: Surge Protector
• Voltage: 120/240 Volts
• Enclosure Type: NEMA 4X
• Frequency Rating: 50/60 Hz
• Indicator Type: LED
• Modes of Protection: L-G/L-L
• Nominal Discharge Current: 10 kA
• Peak Surge Current: 50000 A
• Short Circuit Current Rating: 100 kA
• Plug/Connector Type: Hardwired
• Input Voltage: 120 V AC, 240 V AC
• Output Voltage: 120 V AC, 240 V AC
