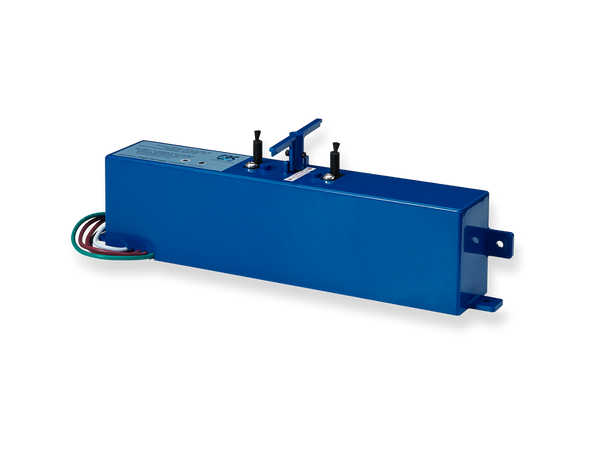

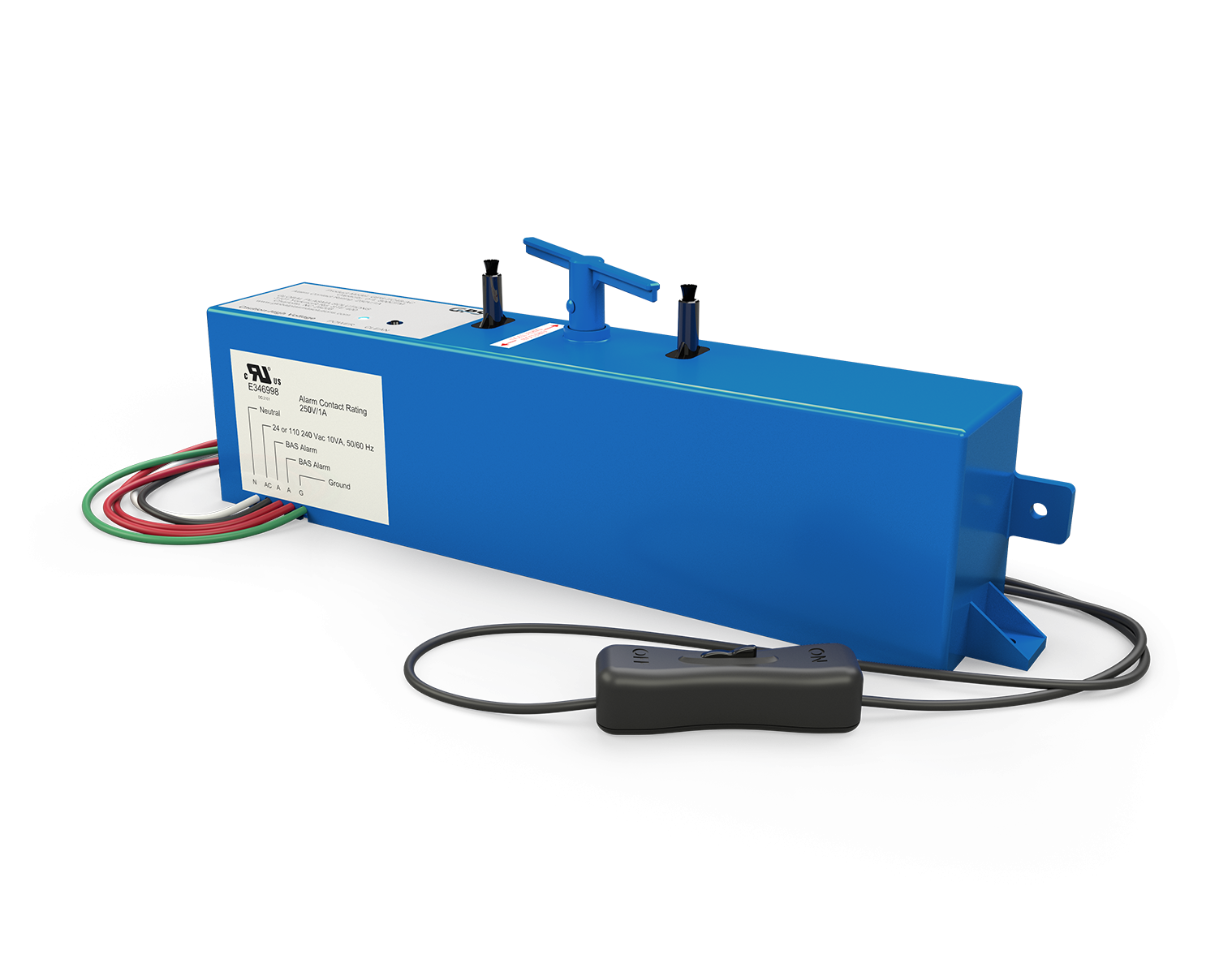

Global Plasma Solutions GPS-FC48-AC Auto-Cleaning Ionization System

Product Description

The Global Plasma Solutions GPS-FC48-AC is an auto-cleaning ionization system. This system is made for installation in air handling units. It can be placed on the fan inlet, inside the duct wall, or on the floor. The GPS-FC48-AC includes a programmable auto-cleaning cycle. It has alarm contacts for Building Automation Systems.

• Designed for air handling units up to four thousand eight hundred CFM
• Programmable auto-cleaning cycle
• Alarm contacts for BAS integration

Product Highlights

This product improves indoor air quality by producing ions to neutralize contaminants.

Product Information

Standard Information

• Input Voltage: 24-240 VAC
• Airflow Capacity: 0 to 4,800 CFM or up to 12 tons

Technical Specifications

• Power Consumption: 10 Watts
• Ionizer Total Ion Output: >400M ions/cc
• Operating Temperature: -20 degrees F to 140 degrees F
• Humidity Range: 0-100% RH
• Unit Dimensions: 11.1 inches L x 1.84 inches W x 3.52 inches H
• Unit Weight: 1.32 lbs
• Alarm Contact Rating: 250VAC/1A, N.O. dry contact
• Frequency: 50/60HZ
• Certifications: UL, cUL, UL 2998, UL 867, IAQP, CE, CARB
• Emitters: Carbon Fiber Brush Emitters
