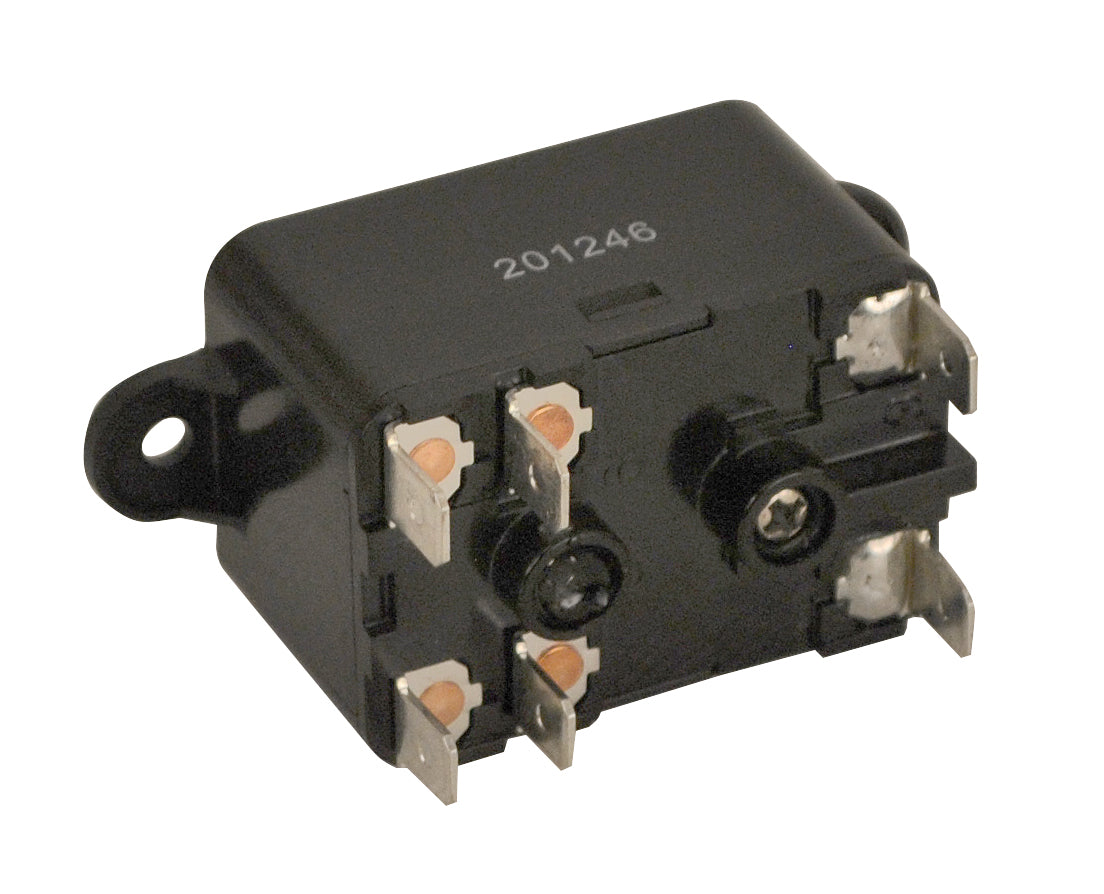

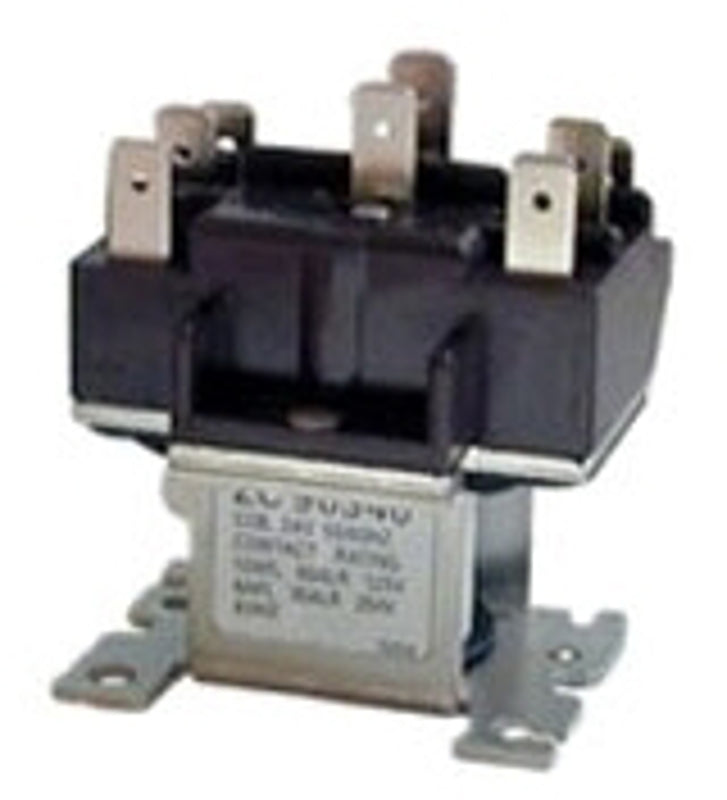

GLOBAL GFR-380 24V SPNO/SPNC Fan Relay

Product Description

The Global GFR-380 is a fan relay suitable for heating, cooling, and switching tasks. It works with a voltage of 24V AC and provides SPNO/SPNC switch action. The relay features a compact enclosed design that protects its internal components. Its coil is built for continuous operation and connects using 1/4 quick connect terminals.

• Compact design for easy installation
• Continuous duty coil for reliable performance
• 1/4 quick connect terminations for fast wiring

Product Highlights

This fan relay is ideal for HVAC applications and general switching needs.

Product Information

Standard Information

• Application: Fan Relay
• Coil Voltage: 24 Vac, 50/60 Hz

Technical Specifications

• Res DC OHMS: 77
• Coil Current: 125 MA
• Coil Data Nominal VA Sealed: 3
• Inrush VA: 4
• Frequency: 50/60 Hz
• Coil Insulation: Class B
• Coil Termination: 1/4 Quick Connect
• Coil Operate Voltage: 85% of nominal coil voltage; 110% maximum safe operate
• Coil Duty Cycle: Continuous
• Switch Action: SPNO/SPNC
• Amp Rating: 60 Amps
• Voltage: 24 Volts
