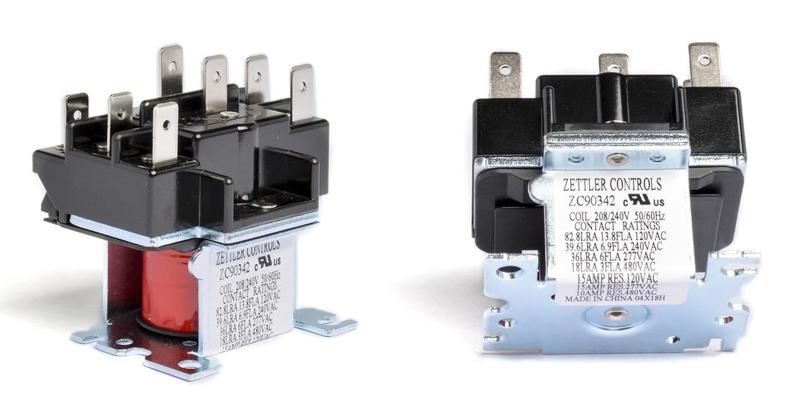

GLOBAL GFR-342 Fan Relay

Product Description

The GLOBAL GFR-342 is a double pole double throw relay suitable for various switching applications. This relay is designed for use in heating systems, air conditioning units, appliances, and vending machines. The coil operates at 208/240 Volts AC and is rated for 50/60 Hertz. It supports a continuous duty cycle and activates when the coil voltage reaches eighty-five percent of its nominal value.

• Double pole double throw (DPDT) switch action
• Coil rated for 208/240 Vac at 50/60 Hz
• Designed for continuous duty cycle

Product Highlights

The GLOBAL GFR-342 is essential for HVAC professionals and electricians needing reliable switching solutions.

Product Information

Standard Information

• Application: Fan Relay
• Coil Voltage: 208/240 Vac, 50/60 Hz

Technical Specifications

• Terminals 1-2-5: Power
• Terminals 4-5-8: Power
• Coil Data: 1600 D.C. Resistance, 38 mA, 9.5 Nominal VA, 22 Inrush VA
• Coils, Operate: 85% of nominal coil voltage; 110% maximum safe operate
• Coils, Duty Cycle: Continuous
• Approvals: U.L. file number E12139C, C.S.A. file number LR13360
• Switch Action: DPDT
• Type: Start Relay
• Voltage: 208/240 Volt
