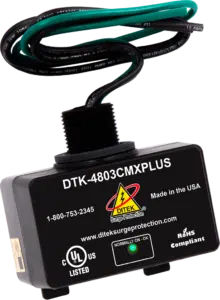

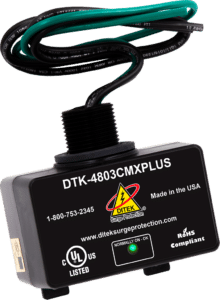

GLOBAL DTK-4803CMXPLUS Three Phase Surge Protective Device

Product Description

The GLOBAL DTK-4803CMXPLUS is a surge protective device designed for industrial applications. This model provides surge protection for three-phase delta systems operating at 480VAC. It is suitable for protecting various equipment including pumps, motors, and HVAC condensers, as well as incoming utility power.

• Surge protection for 480VAC three-phase delta systems.
• Diagnostic LED indicators for system power and surge protection status.
• Housed in a NEMA 4X enclosure for use in harsh environments.

Product Highlights

This device is ideal for businesses needing reliable surge protection. Its robust construction ensures dependable performance even in challenging conditions.

Product Information

Standard Information

• Brand: GLOBAL
• MPN: DTK-4803CMXPLUS

Technical Specifications

• Enclosure: NEMA 4X, suitable for harsh environments
• Surge Current Rating: 75,000 Amp total surge current
• Indication: Diagnostic LEDs for power and SPD function
• Listing: UL1449 Listed Type 1 SPD
• Indicators: Three LEDs available
• Protection Modes: Line to Ground, Line to Line
• Peak Surge Current: 75,000 Amps
• MCOV: 680 Volts
• Service Voltage: 480 VAC
• Service Configuration: Three Phase Delta (3W + G)
