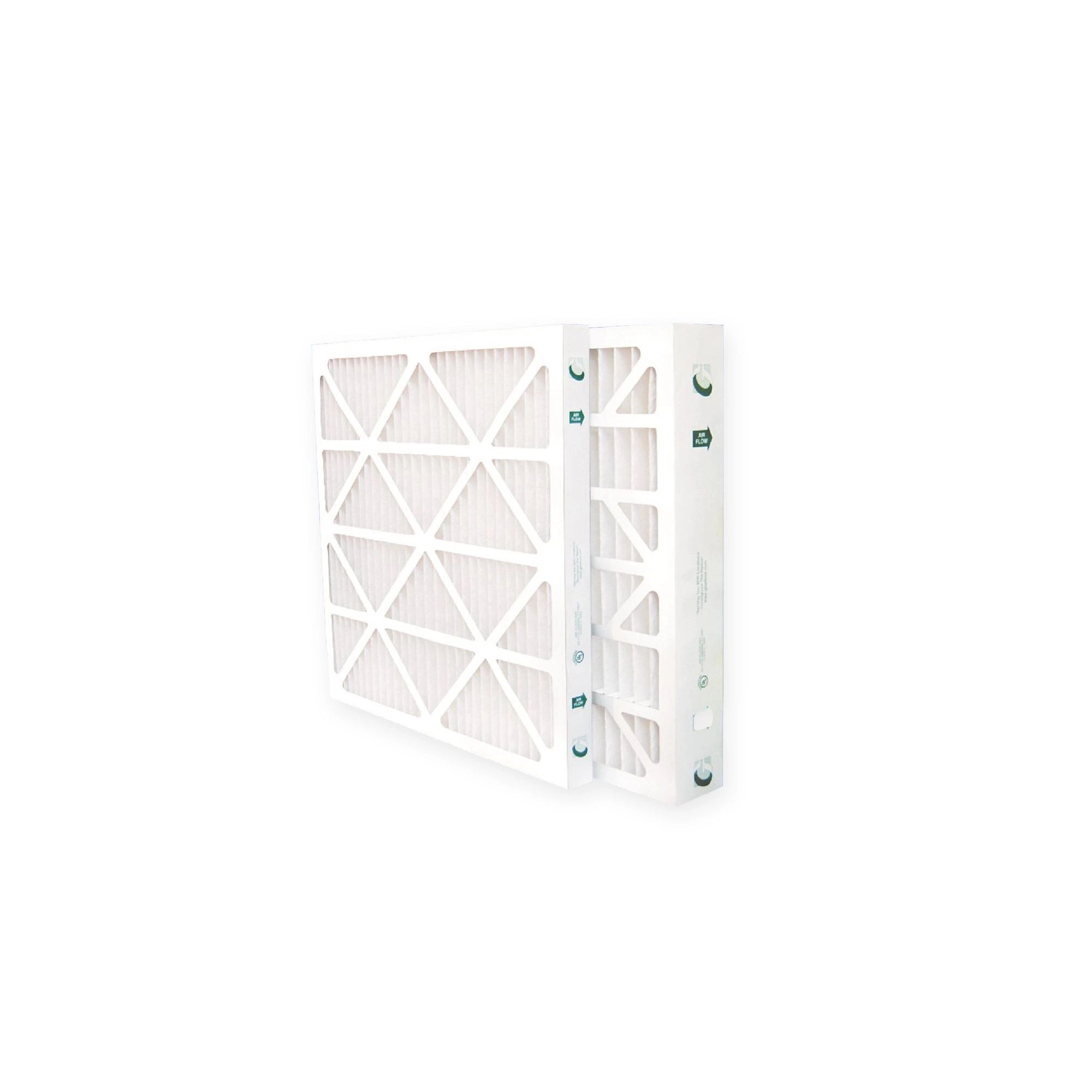

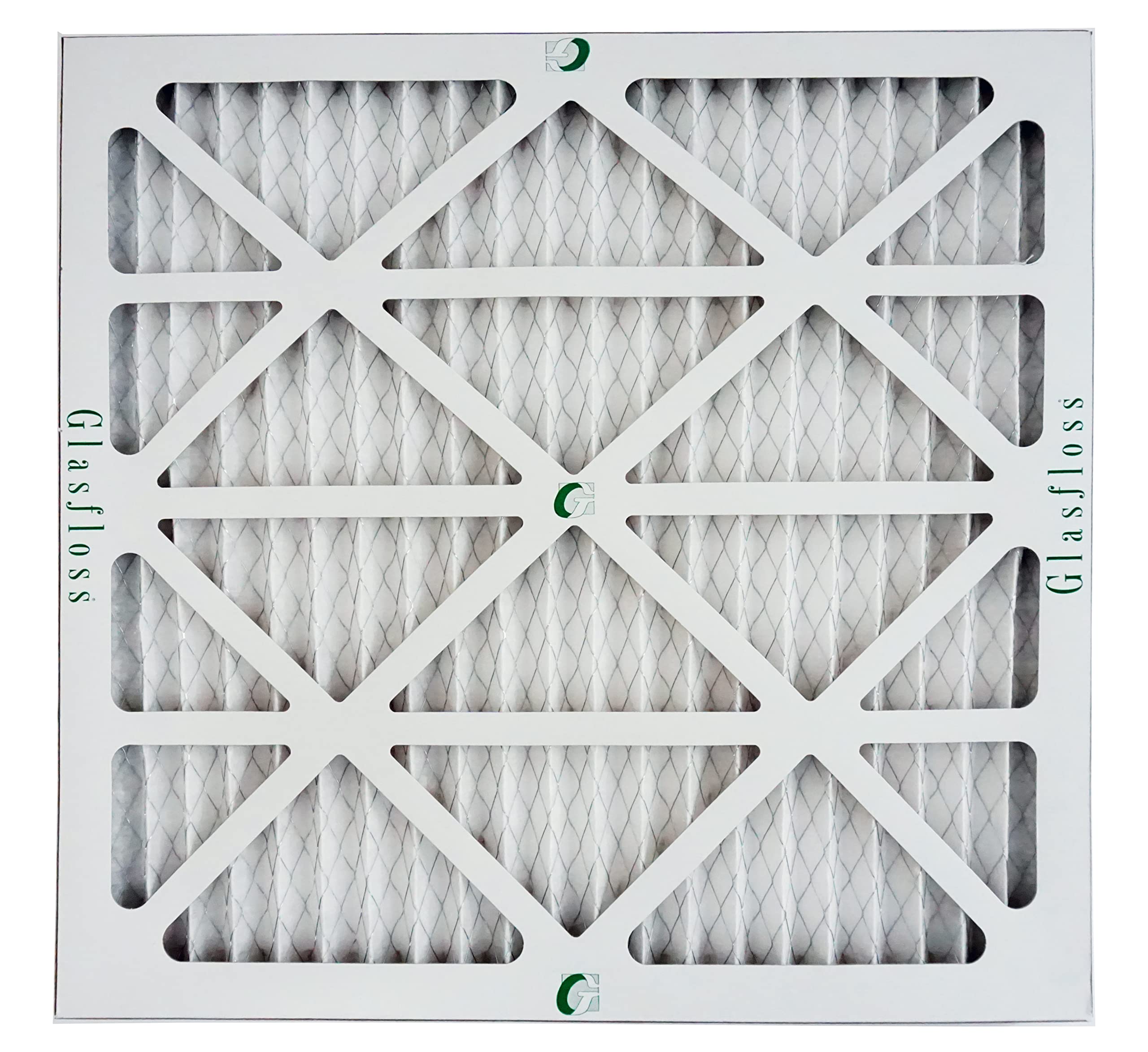

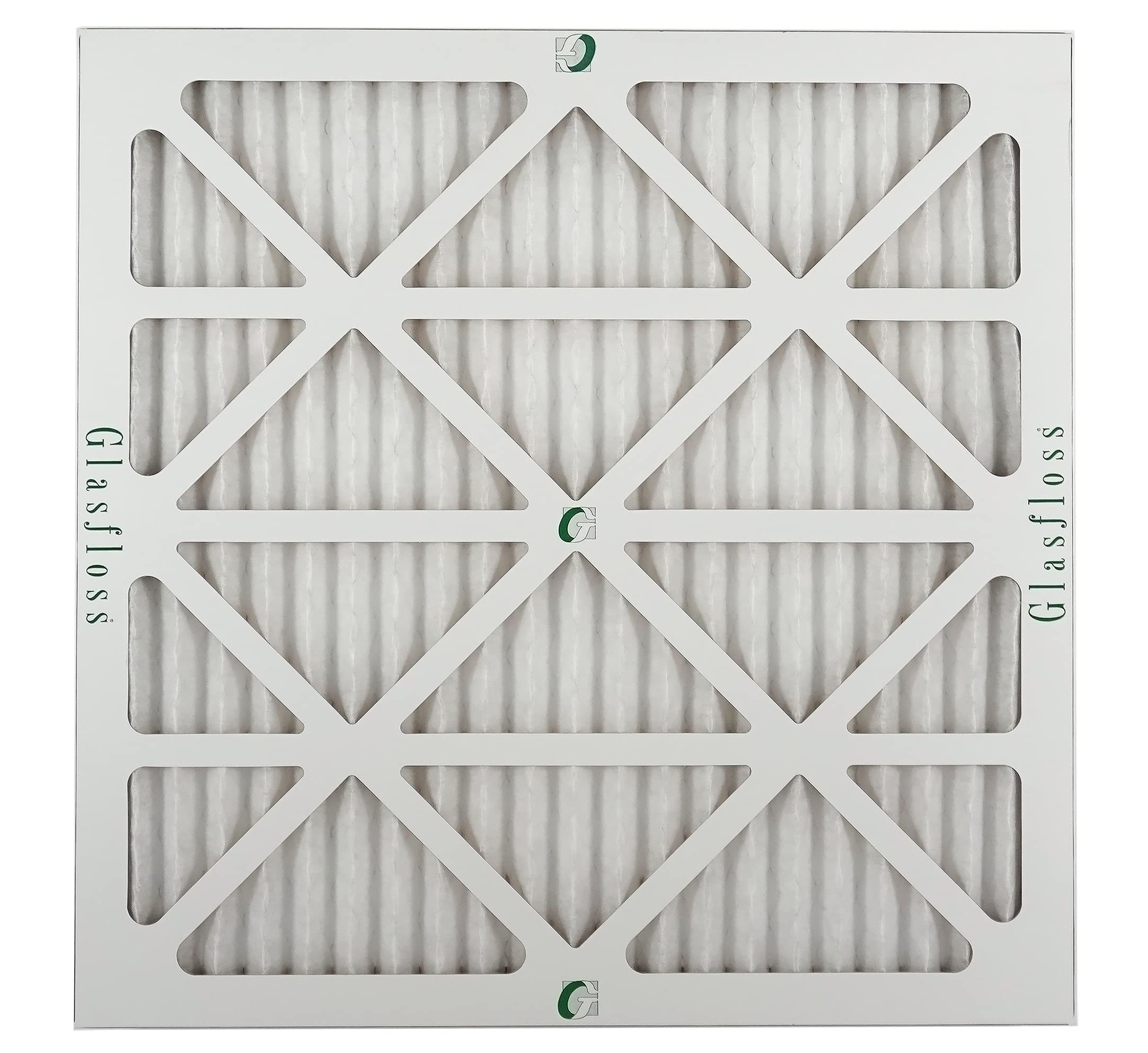

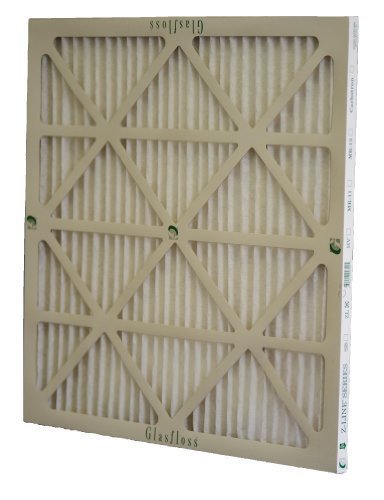

Glasfloss ZLP25251 Z-Line Standard Capacity Pleated Filter 25 inches x 25 inches x 1 inches MERV 10

Product Description

The Glasfloss ZLP25251 Z-Line series pleated filter offers improved performance for many applications. This filter features fibers that do not absorb moisture and will not support microbial growth. It has heavy-duty moisture-resistant construction and a galvanized expanded metal backing. The Glasfloss Z-Line series filters achieve a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Fibers do not absorb moisture and will not support microbial growth

Product Highlights

The Glasfloss ZLP25251 pleated filter provides excellent performance and value for a wide range of applications, including residential, commercial buildings, hospitals, and industrial settings.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP25251
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP25251
• Width: 25 in
• Height: 25 in
• Length: 1 in
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• MERV Rating: 10
• Removes Smoke: No
• Removes Fine Dust: Yes
• Filter Efficiency: 40% to 85%
• Pleats per Linear Feet: 14
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 25
• Nominal Filter Height in Inches: 25
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Size in Inches (W x H x D): 25 x 25 x 1
• Maximum Temperature: 180 deg F
• Series: Z-Line ZL
• Flow Rate: 300 fpm
• Nominal Pleat: 14 Plates/Linear-Ft
• Media Material: Synthetic Fiber
• Domestic/Import: Domestic
• Final Resistance: 1 in WG
• Initial Resistance: 0.18 in wg
• Temperature Rating: 180 deg F
• Manufacturer Name: Glasfloss
• Overall Dimensions: 24-1/2 in W x 7/8 in D x 24-1/2 in H
• Actual Size: 24-1/2 x 24-1/2 x 7/8 in
• Rated Velocity: 300 fpm
• Media Area: 7.48 sq-ft
