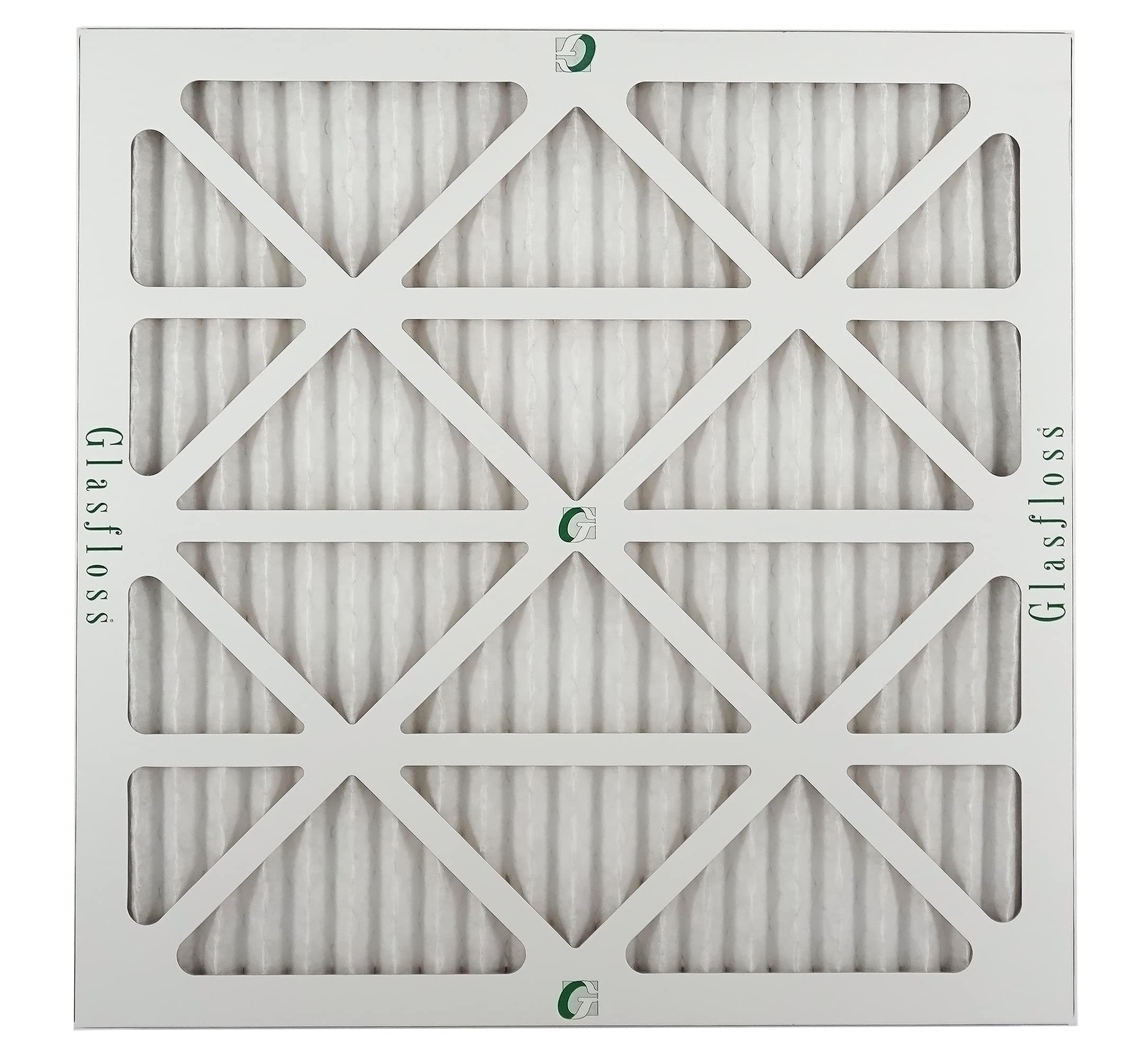

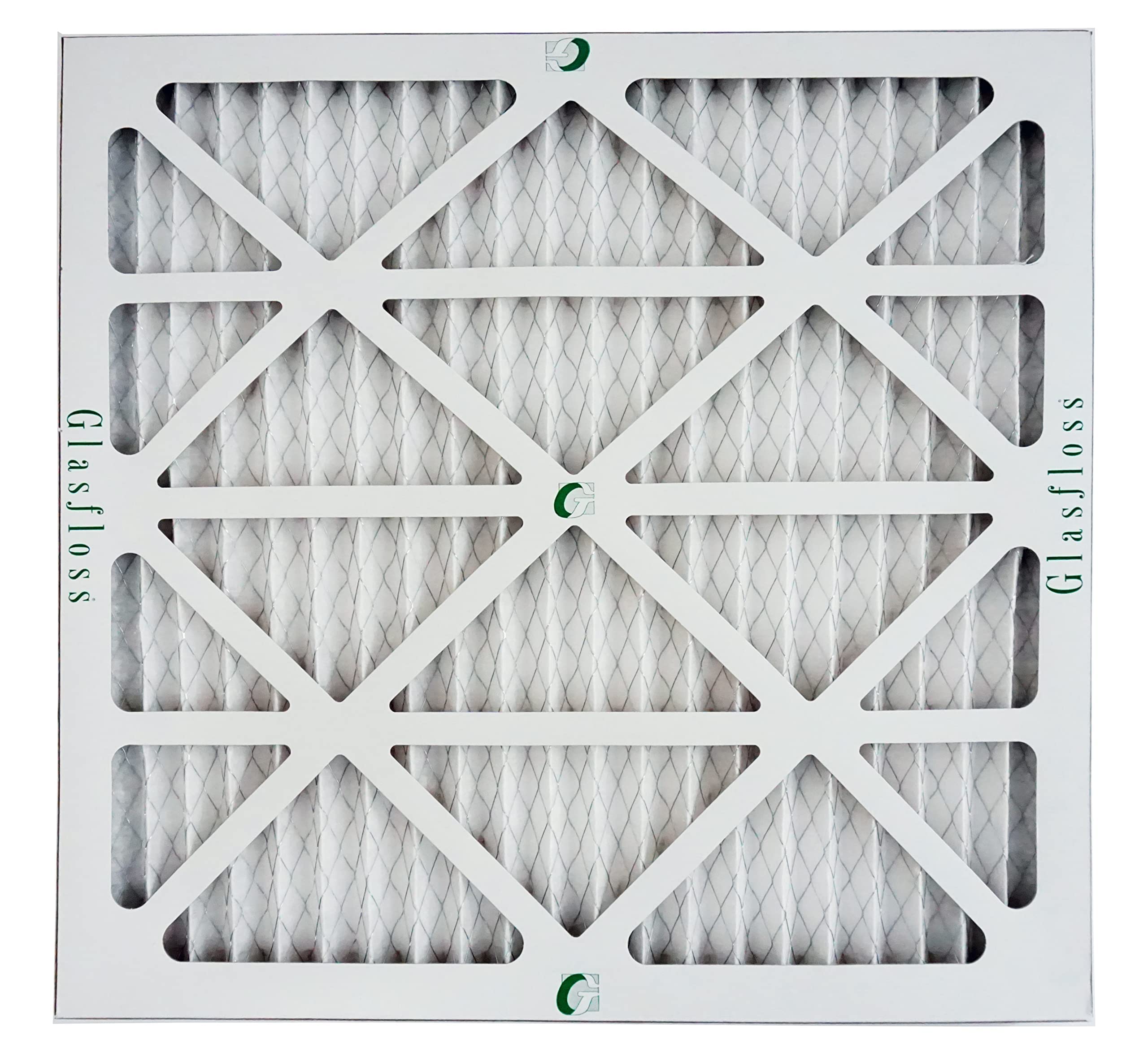

Glasfloss ZLP24244 Z-Line ZL Pleated Air Filter 24 x 24 x 4 MERV 10

Product Description

The Glasfloss ZLP24244 Z-Line series pleated filters offer improved performance for various applications. These filters feature synthetic fibers that resist moisture and microbial growth. They have a galvanized expanded metal backing and are constructed with heavy-duty, moisture-resistant materials. These filters achieve a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Standard Size 4” and 6” Thick ZL, HV & MR-11 Incorporate Media Separators

Product Highlights

Glasfloss ZLP24244 pleated filters provide excellent performance and value for a wide range of applications, including geothermal unit replacements.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP24244
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP24244
• Width: 24 in
• Height: 24 in
• Length: 4 in
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• MERV Rating: 10
• Filter Efficiency: 40% to 85%
• Removes Fine Dust: Yes
• Pleats per Linear Feet: 9
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width: 24 Inch
• Nominal Filter Height: 24 Inch
• Nominal Filter Thickness: 4 Inch
• Nominal Filter Size: 24 x 24 x 4
• Temperature Rating: 180 deg F
• Depth: 4 in
• Final Resistance: 1 in WG
• Flow Rate: 300 fpm
• Initial Resistance: 0.18 in wg
• Media Material: Synthetic Fiber
• Mfg Standards/Approvals: ANSI/ASHRAE 52.2, Energy Star Qualified, LEED Certified, UL 900
• Nominal Pleat: 14 Plates/Linear-Ft
• Series: Z-Line ZL
• Rated Velocity FPM: 500
• Size W x H x D Exact: 23-3/8 x 23-3/8 x 3-3/4
• Size W x H x D Nominal: 24" x 24" x 4"
• Efficiency: MERV 10
• Material: Synthetic
• Series-Brand: Z-Line
• Application: Industrial, Commercial
• Actual Size: 23-3/8 in W x 23-3/8 in H x 3-3/4 in D
