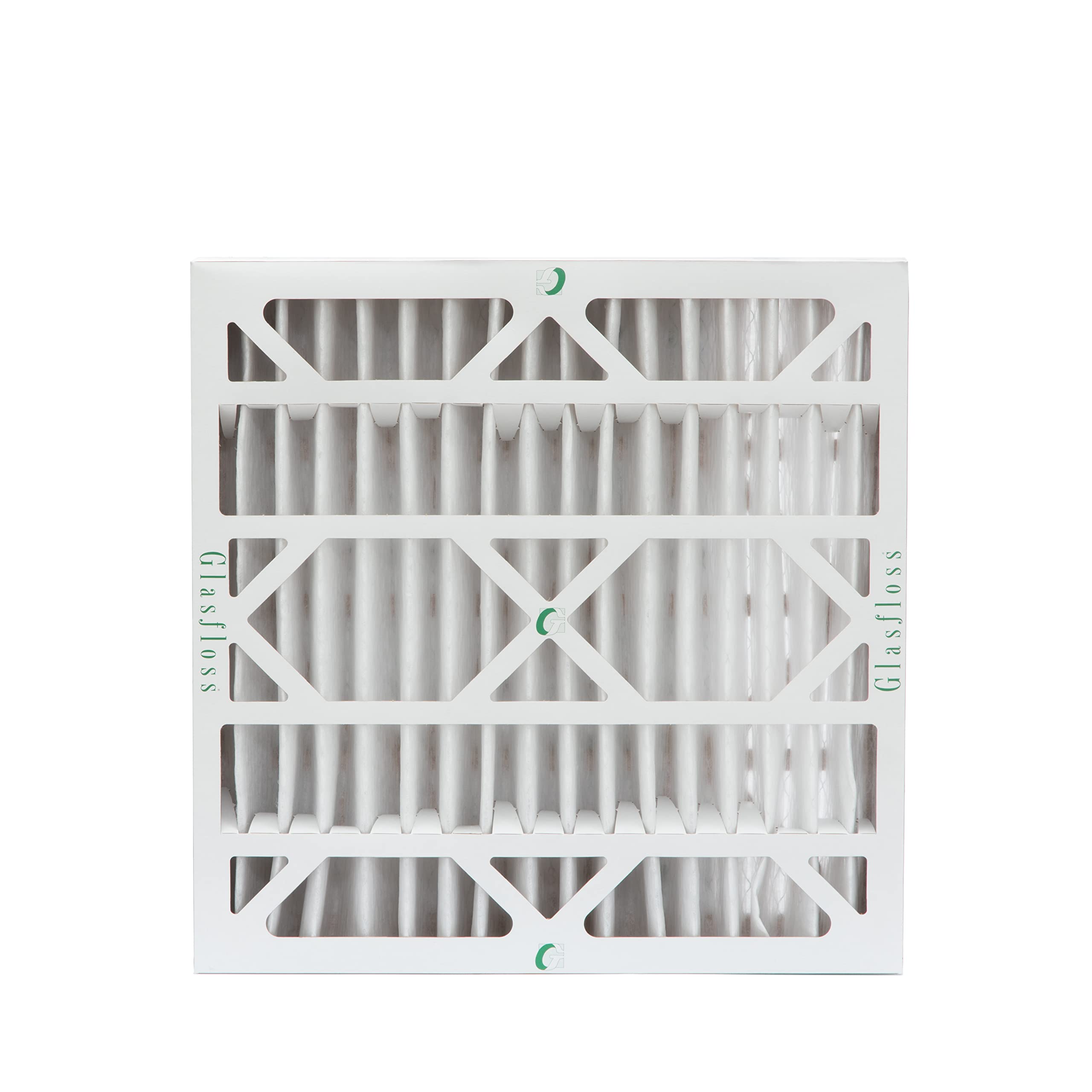

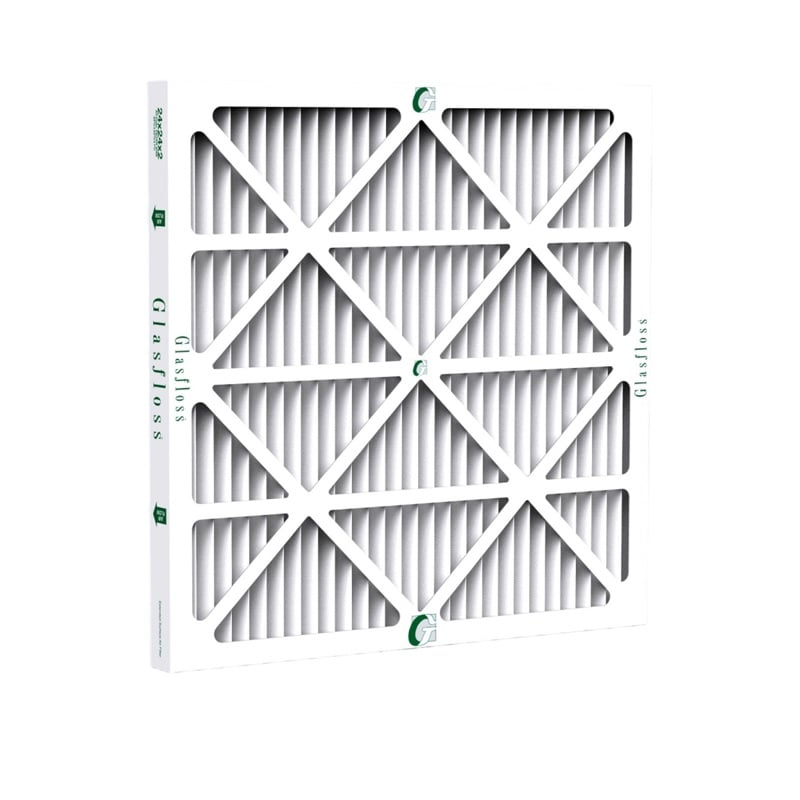

Glasfloss ZLP24244 Z-Line Standard Capacity Pleated Filter 24 inches x 24 inches x 4 inches

Product Description

The Glasfloss ZLP24244 Z-Line Series pleated filter offers enhanced performance for various applications. Constructed with fibers that resist moisture and microbial growth, it achieves a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard. Features a heavy-duty, moisture-resistant beverage board frame and galvanized expanded metal backing.

• Heavy-Duty Moisture Resistant Construction

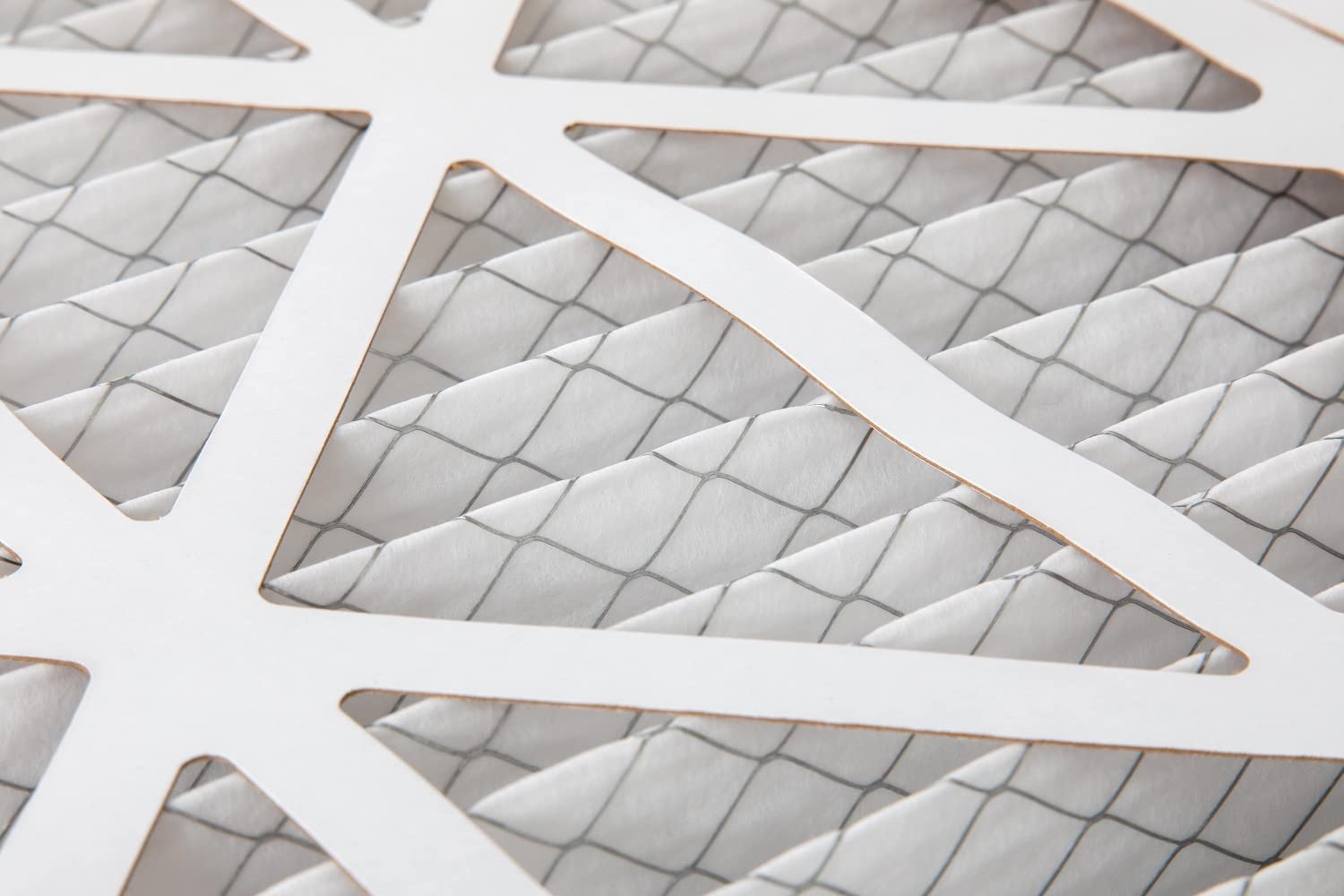

• Galvanized Expanded Metal Backing
• Standard Size 4” and 6” Thick ZL, HV & MR-11 Incorporate Media Separators

Product Highlights

Ideal for residential, commercial and industrial HVAC applications. The Glasfloss ZLP24244 filter provides excellent filtration and maintains its efficiency over its service life.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP24244
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP24244
• Width: 24 in
• Height: 24 in
• Length: 4 in
• Prop 65: Yes
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• MERV Rating: 10
• Removes Smoke: No
• Removes Fine Dust: Yes
• Filter Efficiency: 40% to 85%
• Pleats per Linear Feet: 9
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 24
• Nominal Filter Height in Inches: 24
• Nominal Filter Thickness in Inches: 4
• Nominal Filter Size in Inches (W x H x D): 24 x 24 x 4
• UOM: EA
• UPC: 604443993310
• EAN: 0604443993310
• Temperature Rating: 180 deg F
• Series: Z-Line ZL
• Application: Geothermal Unit Replacement Filters
• Rated Velocity: 500 fpm
• Initial Resistance: 0.25 in-WG
• Final Resistance: 1 in-WG
• Media Material: Synthetic Fiber
• Mfg Standards/Approvals: ANSI/ASHRAE 52.2, Energy Star Qualified, LEED Certified, UL 900
• Nominal Pleat: 14 Plates/Linear-Ft
• Depth: 4 in
• Domestic/Import: Domestic
• Flow Rate: 300 fpm
• Media Area: 22.27 sq-ft
• Actual Size: 23-3/8 x 23-3/8 x 3-3/4 in
• Collection: Z-LineSeries
• Configuration: Pleated
• Green Type: EnergyStar
• Material: Synthetic Fiber
