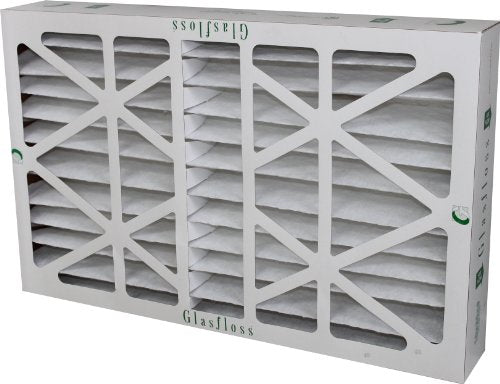

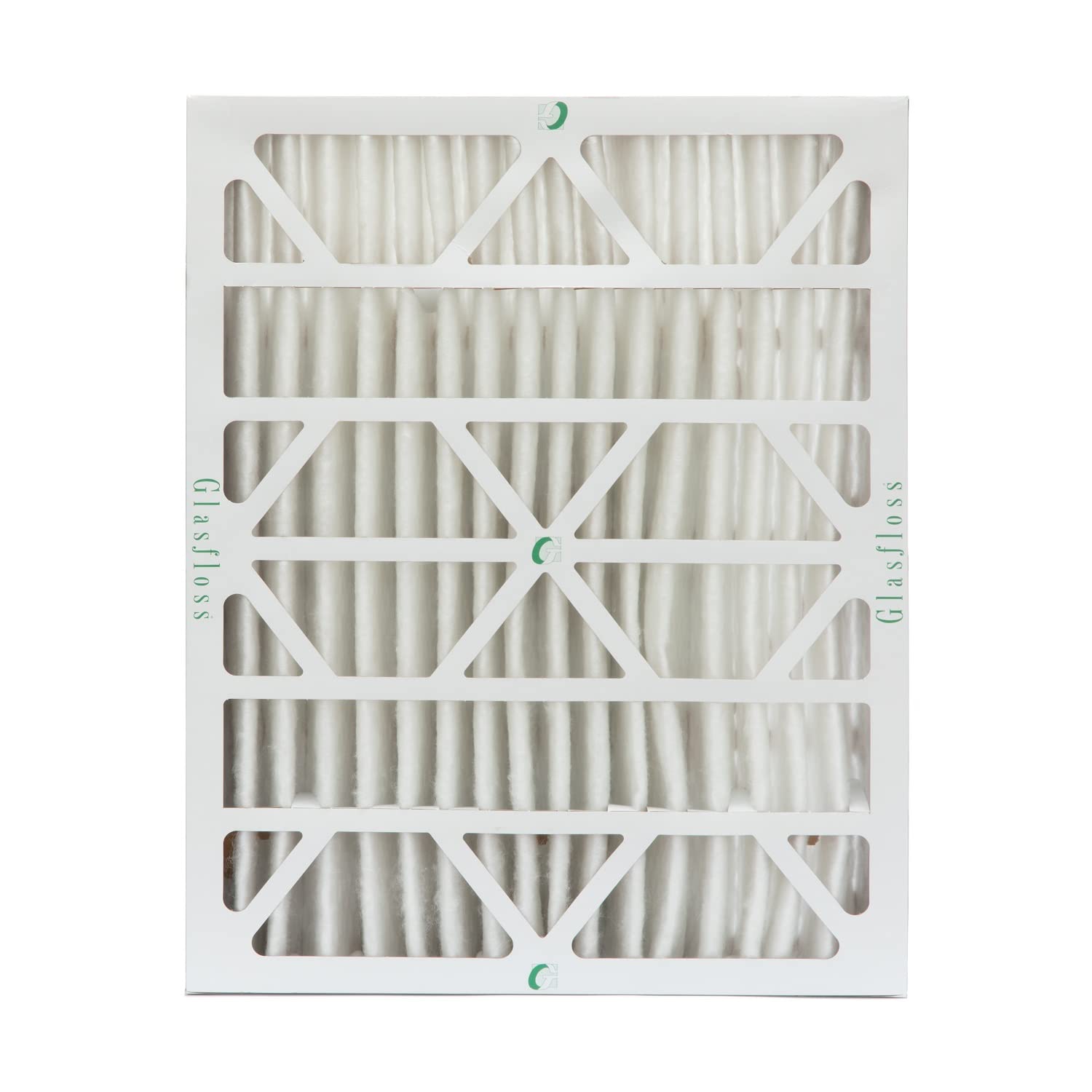

Glasfloss ZLP20254 Z-Line Standard Capacity Pleated Filter 20 x 25 x 4 inch

Product Description

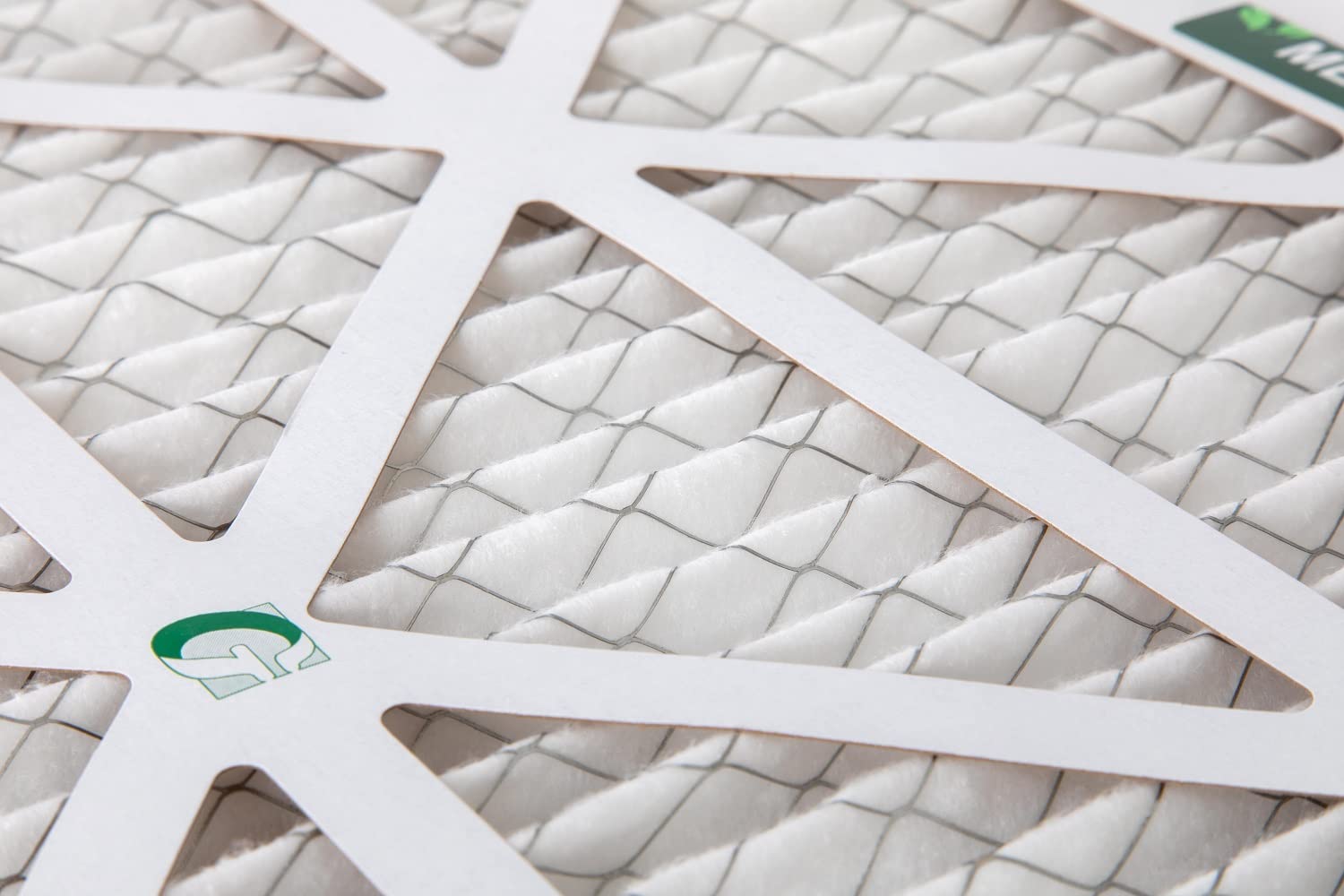

The Glasfloss ZLP20254 Z-Line series pleated filters offer improved performance for many applications. These filters feature fibers that do not absorb moisture and will not support microbial growth. The media is made of 100% synthetic fibers and pleated in a tapered radial configuration. They are classified under U.L. std. 900 and can withstand temperatures up to 180 degrees Fahrenheit.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Fibers do not absorb moisture and will not support microbial growth

Product Highlights

The Glasfloss ZLP20254 filter is ideal for residential, commercial, and industrial HVAC applications. It features a heavy-duty construction and synthetic media.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP20254
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP20254
• Width: 25 in
• Height: 20 in
• Length: 4 in
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• MERV Rating: 10
• Removes Smoke: No
• Removes Fine Dust: Yes
• Filter Efficiency: 40% to 85%
• Pleats per Linear Feet: 9
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 20
• Nominal Filter Height in Inches: 25
• Nominal Filter Thickness in Inches: 4

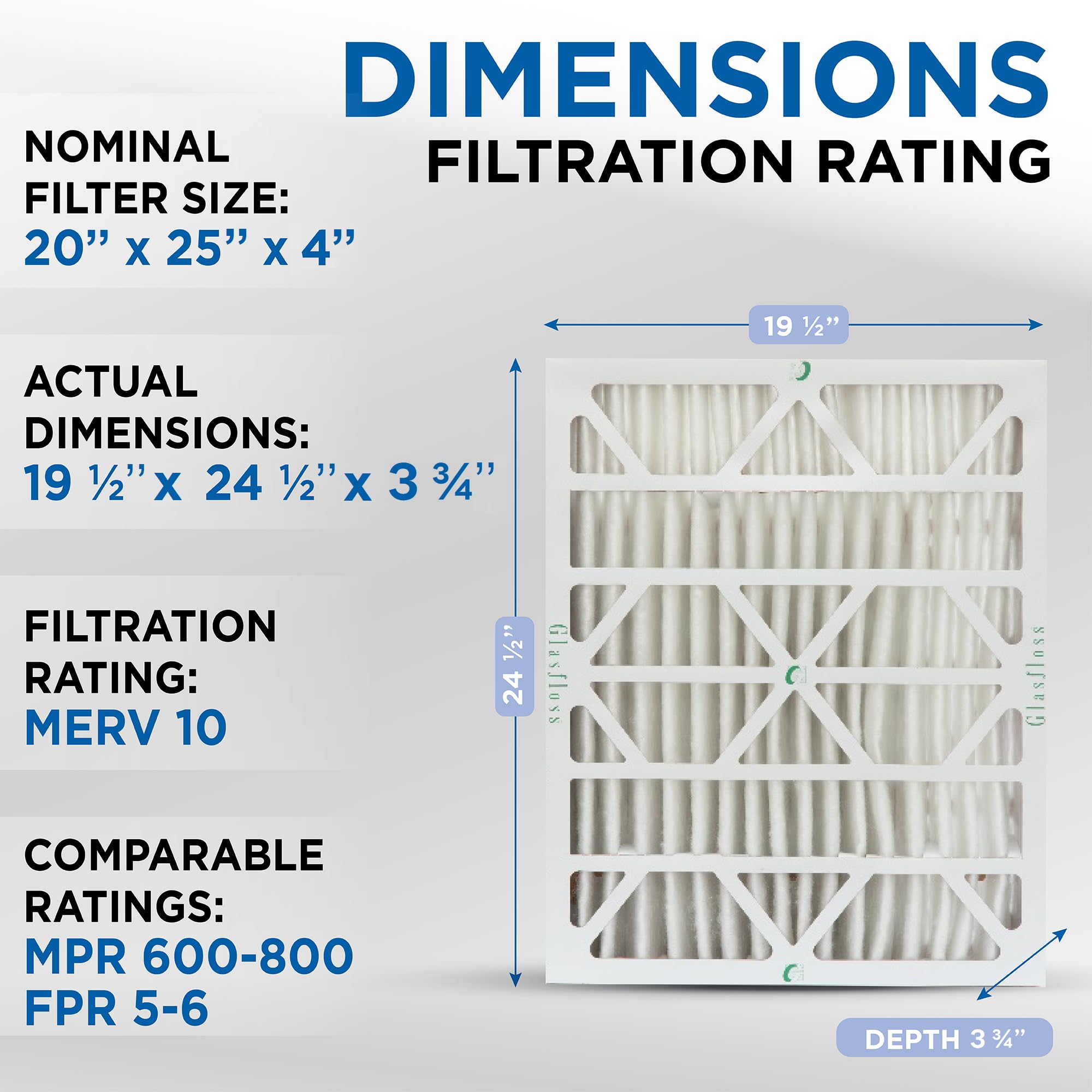

• Nominal Filter Size in Inches (W x H x D): 20 x 25 x 4
• Country of Origin: USA
• Temperature Rating: 180 deg F
• Series: Z-Line ZL
• Flow Rate: 500 fpm
• Media Material: Synthetic Fiber
• Domestic/Import: Domestic
• Final Resistance: 1 in WG
• Initial Resistance: 0.25 in wg
• Rated Velocity FPM: 500
• Efficiency: MERV 10
• Material: Synthetic
• Application: Geothermal Replacement
• Nominal Pleat: 9 Plates/Linear-Ft
• Media Area: 19.34 sq-ft
