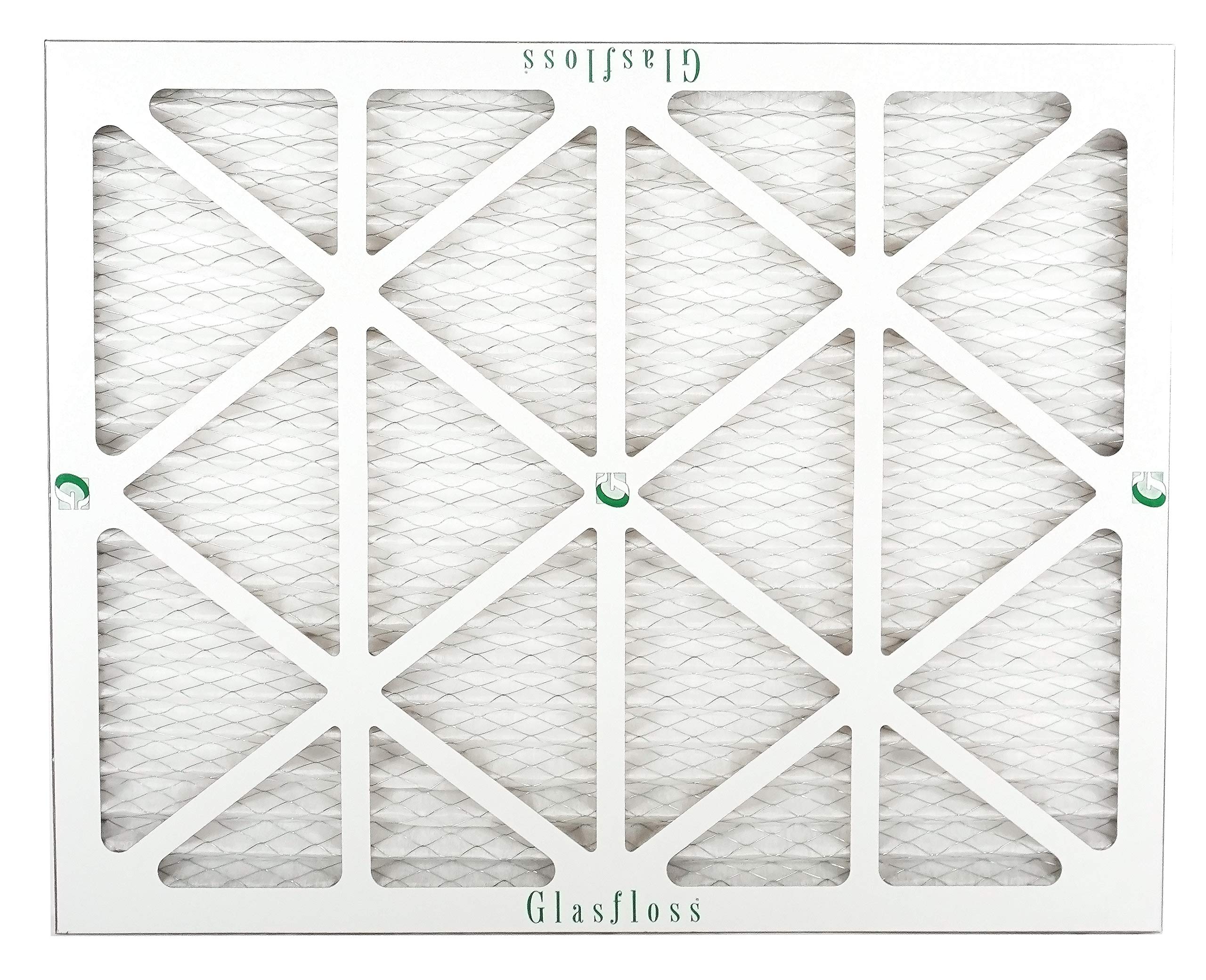

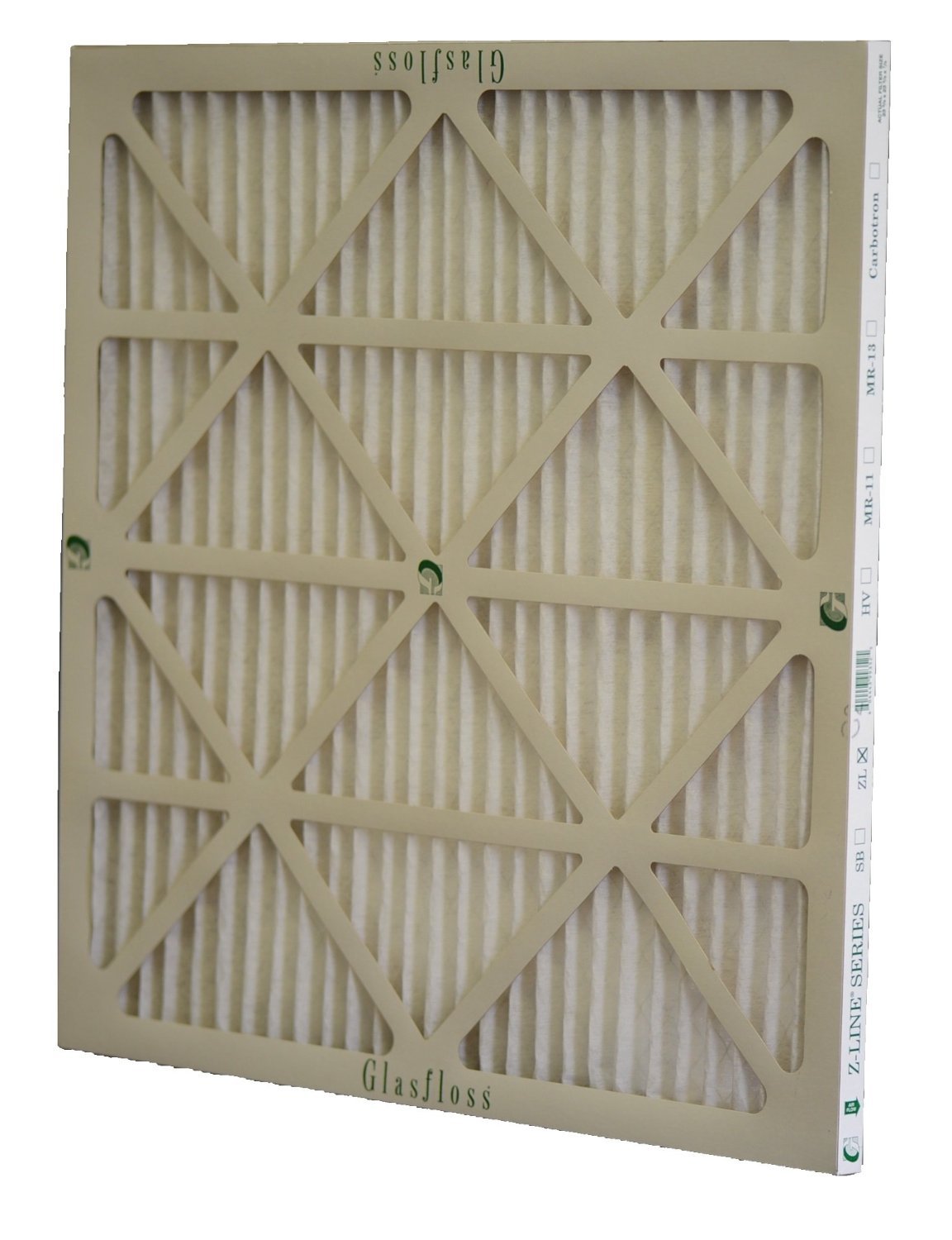

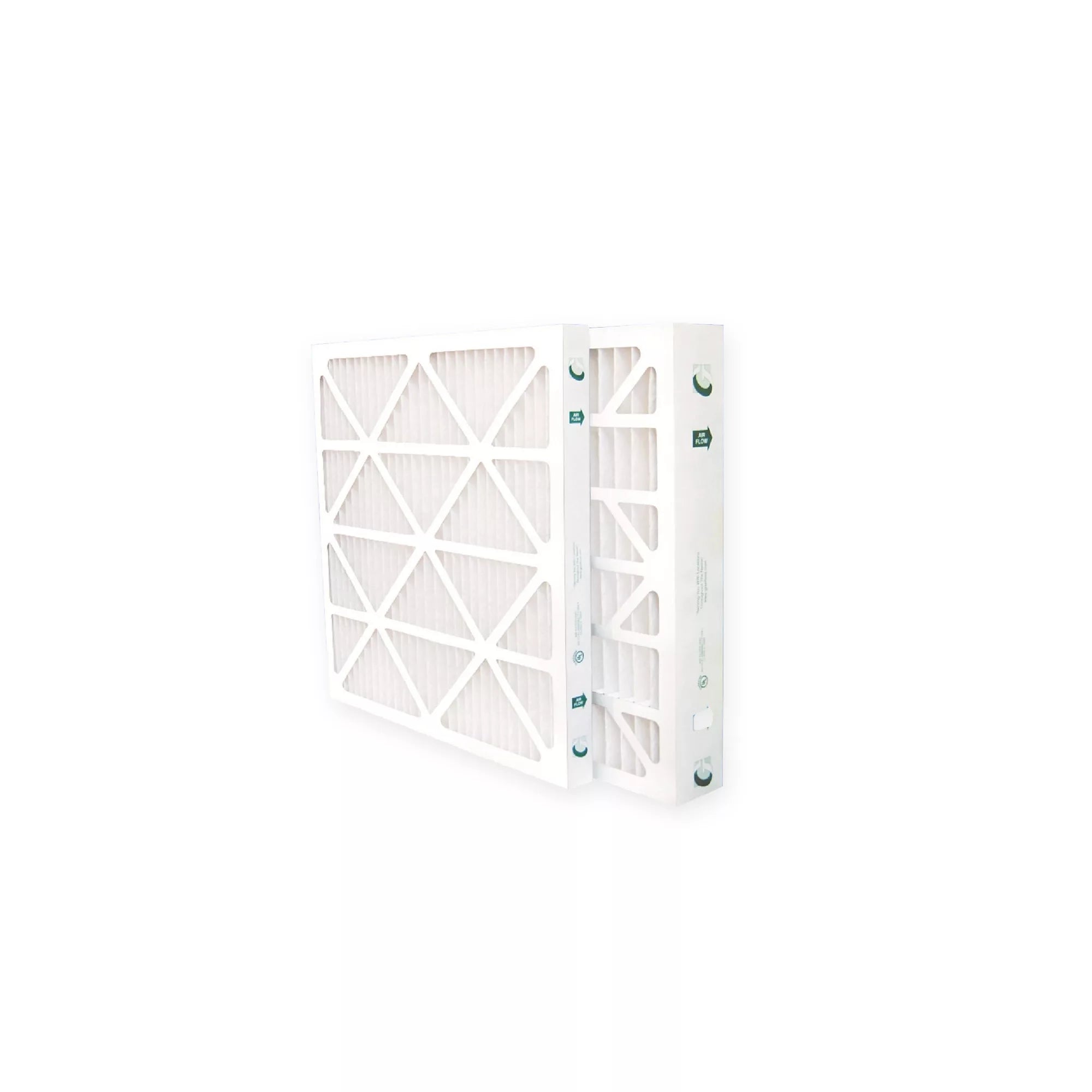

Glasfloss ZLP20251 20 inches x 25 inches x 1 inches MERV 10 Z-Line Standard Capacity Pleated Filter

Product Description

The Glasfloss ZLP20251 Z-Line Series pleated filters offer improved performance for virtually every application. These filters feature fibers which do not absorb moisture and will not support microbial growth. The SB, ZL and HV filters achieve a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard. The filter is rated to withstand temperatures up to 180 degrees Fahrenheit.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• MERV 10 Rating

Product Highlights

Glasfloss Z-Line filters offer excellent performance and value for a wide range of applications. Ideal for use as geothermal unit replacement filters.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP20251
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP20251
• Width: 20 in
• Height: 25 in
• Length: 1 in
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• MERV Rating: 10
• Removes Smoke: No
• Removes Fine Dust: Yes
• Filter Efficiency: 40% to 85%
• Pleats per Linear Feet: 14
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 20
• Nominal Filter Height in Inches: 25
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Size in Inches (W x H x D): 20 x 25 x 1
• UPC: 604443993532
• Country of Origin: USA
• Series: Z-Line® ZL
• Temperature Rating: 180 deg F
• Initial Resistance: 0.18 in wg
• Final Resistance: 1 in WG
• Media Material: Synthetic Fiber
• Depth: 1 in
• Flow Rate: 300 fpm
• Rated Velocity: 300 fpm
• Media Area: 5.93 sq-ft
• Size: 20 x 25 x 1
• Overall Dimensions: 19-1/2 in W x 7/8 in D x 24-1/2 in H
• Actual Size: 19-1/2 x 24-1/2 x 7/8 in
• Mfg Standards/Approvals: ANSI/ASHRAE 52.2, Energy Star Qualified, LEED Certified, UL 900
