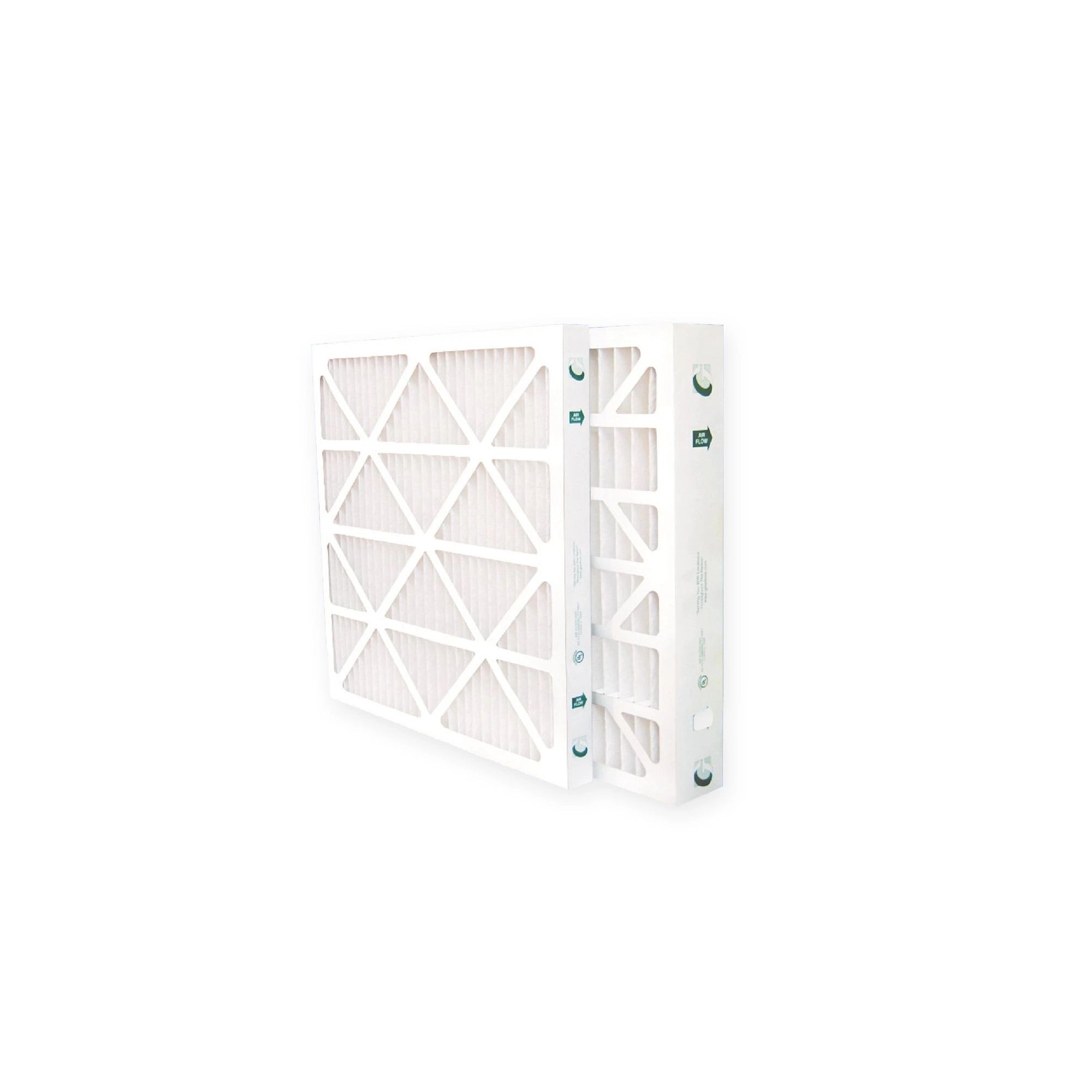

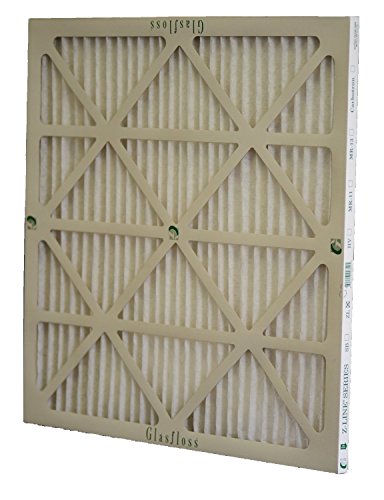

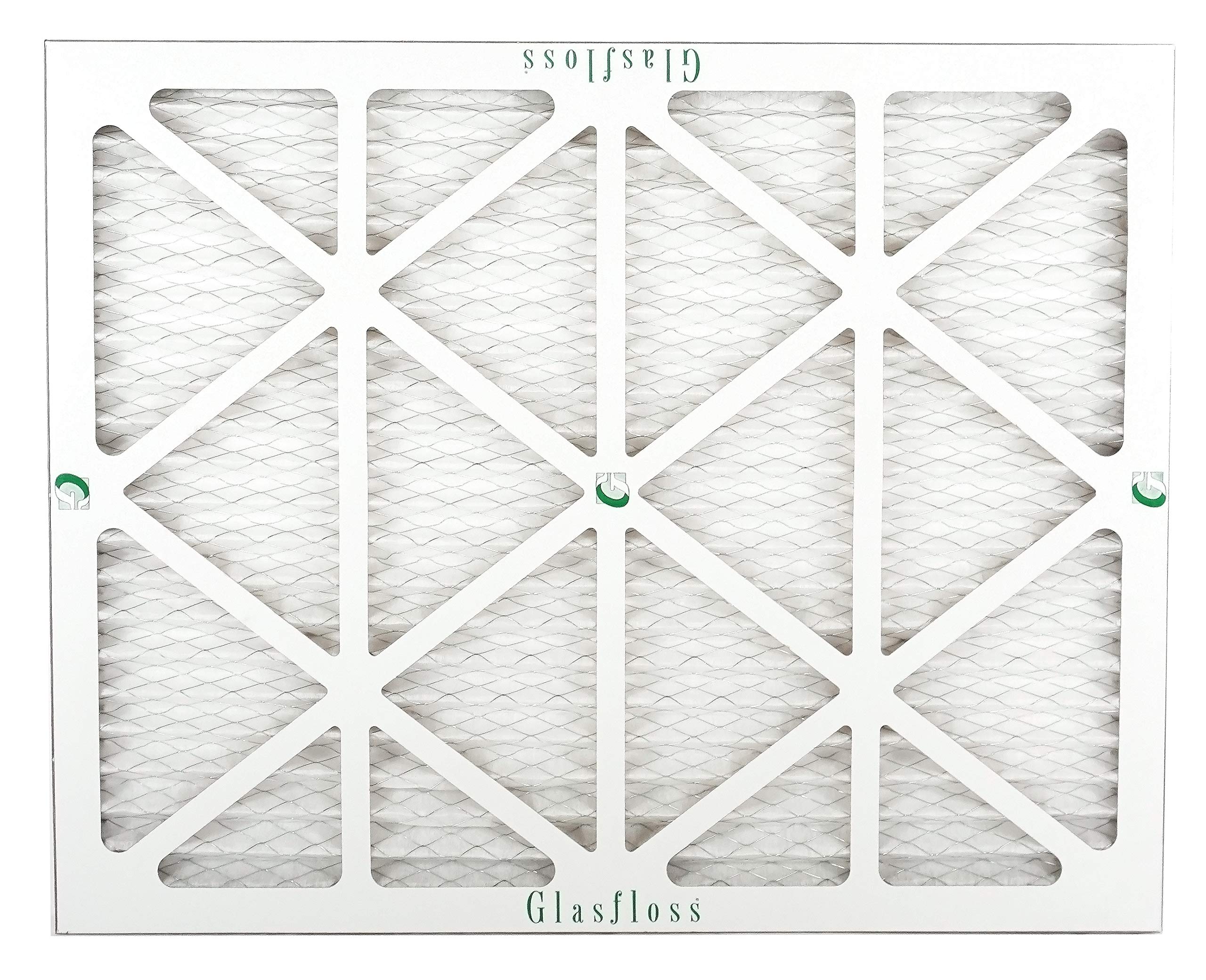

Glasfloss ZLP20241 Z-Line ZL Pleated Air Filter 20 x 24 x 1

Product Description

The Glasfloss ZLP20241 Z-Line Series pleated filters offer improved performance for virtually every application. These filters feature fibers which do not absorb moisture and will not support microbial growth. The media is made of 100% synthetic fibers and pleated in a tapered radial configuration. The filter has a MERV 10 rating and can withstand temperatures up to 180 degrees Fahrenheit.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• MERV 10 Rating

Product Highlights

The Glasfloss ZLP20241 pleated air filter provides excellent performance and value for a wide range of applications.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP20241
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP20241
• Width: 20 in
• Height: 24 in
• Length: 1 in
• MERV Rating: 10
• Filter Type: Pleated
• Frame Type: Die-Cut Beverage Board
• Temperature Rating: 180 deg F
• Media Material: Synthetic Fiber
• Series: Z-Line ZL
• Nominal Pleat: 14 Plates/Linear-Ft
• Initial Resistance: 0.18 in wg
• Final Resistance: 1 in WG
• Filter Efficiency: 40% to 85%
• Removes Fine Dust: Yes
• Removes Smoke: No
• Pleats per Linear Feet: 14
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 20
• Nominal Filter Height in Inches: 24
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Size in Inches (W x H x D): 20 x 24 x 1
• Depth: 1 in
• Flow Rate: 300 fpm
• Media Area: 5.69 sq-ft
• Material: Synthetic
• Prop 65: Yes
