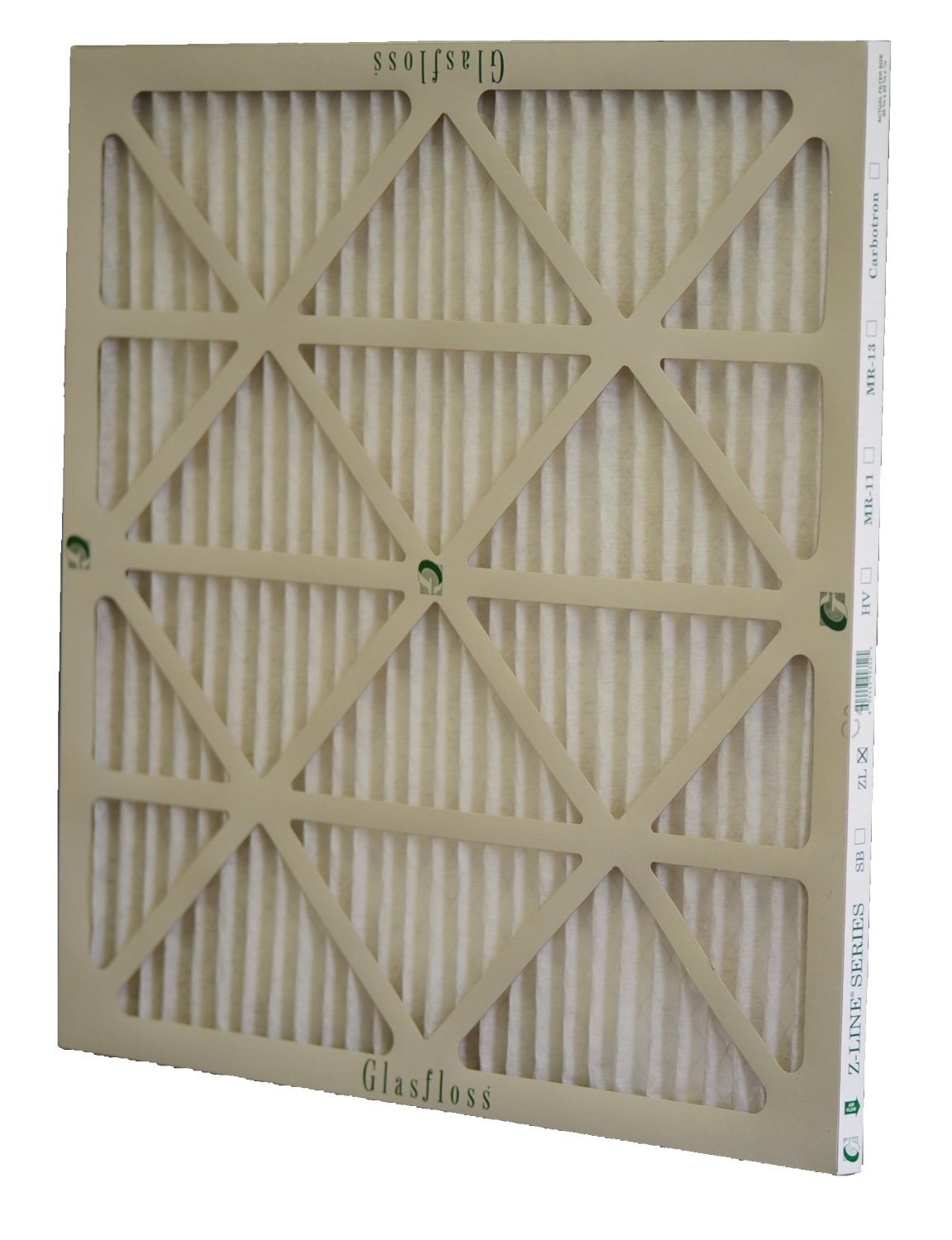

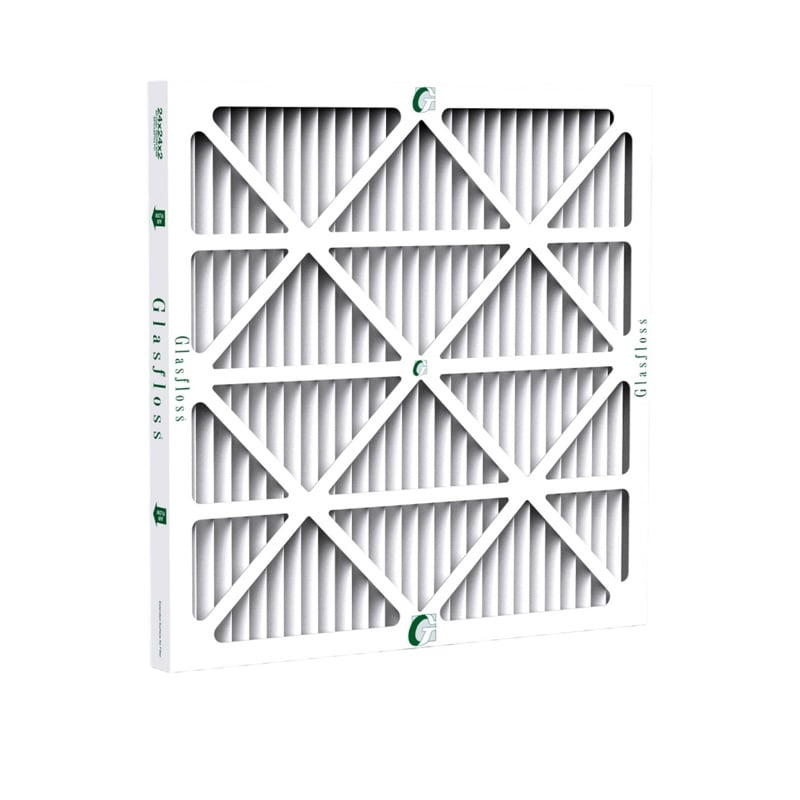

Glasfloss ZLP18301 18 inches x 30 inches x 1 inches MERV 10 Z-Line Standard Capacity Pleated Filter

Product Description

The Glasfloss ZLP18301 is an 18" x 30" x 1" MERV 10 Z-Line standard capacity pleated filter. These filters offer improved performance for various applications. The synthetic fibers do not absorb moisture and will not support microbial growth. Features heavy-duty moisture-resistant construction and a galvanized expanded metal backing. Classified under U.L. std. 900 and can withstand temperatures up to 180 degrees Fahrenheit.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Fibers do not absorb moisture and will not support microbial growth

Product Highlights

The Glasfloss ZLP18301 filter provides excellent performance and value for a wide range of applications.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP18301
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• Filter Efficiency: 40% to 85%
• Filter Rating (Microns): 1.0 to 10.0
• Filter Type: Pleated
• Frame Type: Die-Cut Beverage Board
• Height: 30
• Length: 1
• MERV Rating: 10
• Nominal Filter Height in Inches: 30
• Nominal Filter Size in Inches (W x H x D): 18 x 30 x 1
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Width in Inches: 18
• Pleats per Linear Feet: 14
• Removes Fine Dust: Yes
• Removes Smoke: No
• Width: 18
• Temperature Rating: 180 deg F
• Flow Rate: 300 FPM
• Material: Synthetic Fiber
• Series-Brand: Z-Line
• MfgNum: ZLP18301
• Category: Air Filters
• SubCat: Media
• SubSubCat: Pleated Box
• ItemNum: ZLP18301
• FPM: 300
• Type: Pleated Air Filter
• Dimensions: 18" x 30" x 1"
• Application: Industrial, Commercial
• Collection: Z-LineSeries
• Configuration: Pleated
• Green Type: EnergyStar
• Resistance: 0.21 Inch WG
• Frame Detail: Beverage Board
• Applicable Standard: ANSI/ASHRAE 52.2, UL, NAFA, HardI, USGBC
• Actual Size: 17-5/8 in W x 29-5/8 in H x 7/8 in D
• Air filter size: 18 x 30 x 1
• Features: Pleated
• Thickness: 1"
• Rec. use: Pleated Air Filters
• Count: 1
• Initial Resistance: 0.18 in wg
• Media Material: Synthetic Fiber
• MERV: 10
• Mfg Standards/Approvals: ANSI/ASHRAE 52.2, Energy Star Qualified, LEED Certified, UL 900
• Nominal Pleat: 14 Plates/Linear-Ft
• Overall Dimensions: 19-1/2 in H x 19-1/2 in W x 7/8 in D
• Series: Z-Line ZL
• Final Resistance: 1 in WG
• Nominal Width: 18 Inch
• Nominal Height: 30 Inch
• Nominal Depth: 1 Inch
• Media Area: 7.2 Square Foot
• Number of Pleats: 14 per Foot
• Filter Size: 18" x 30" x 1"
• Capacity: Standard Capacity
• Construction: Heavy-Duty Moisture Resistant
• Metal Backing: Galvanized Expanded Metal
