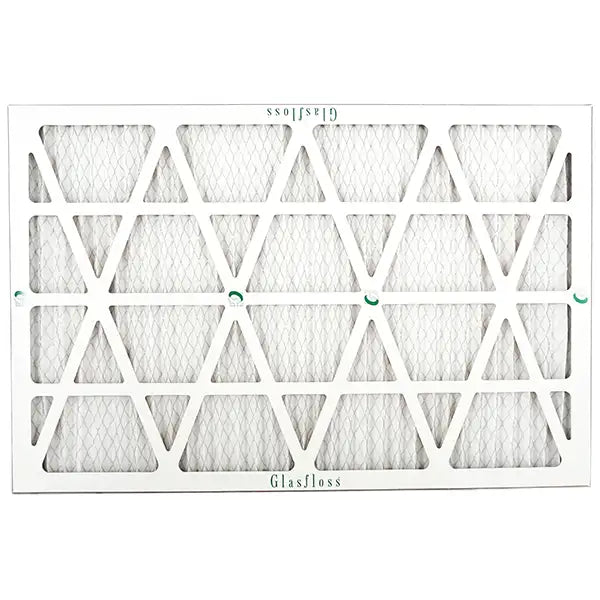

Glasfloss ZLP18252 Pleated Air Filter 18x25x2 Merv 10

Product Description

The GLASFLOSS ZLP18252 is a MERV 10 pleated air filter designed for residential and commercial HVAC systems where reliable particulate capture and low energy cost are both priorities. Sized at 18 inches x 25 inches x 2 inches, it delivers 9.02 square feet of 100% synthetic fiber extended-surface media arranged in a tapered radial pleat configuration at 10 pleats per lineal foot. Initial resistance is 0.3 inches WC and final resistance is 1 inch WC at a rated face velocity of 500 FPM. A galvanized expanded metal backing is laminated to the air-exit side with a thermosetting adhesive, maintaining pleat continuity and resisting rust. Installed by HVAC technicians and mechanical contractors, this filter is rated Energy Star and manufactured in the USA.

The ZLP18252 suits a wide range of forced-air applications including geothermal units, standard split systems, and air handlers where a 2-inch filter rack is present. The heavy-duty moisture-resistant beverage board frame incorporates post-consumer recycled material and is internally laminated to the pleated cartridge apexes, creating a rigid one-piece die-cut assembly that resists blow-by and frame collapse under sustained airflow. This makes it appropriate for both intermittent and continuous-duty systems operating up to 180 degrees F.

Key Features

• MERV 10 rated per ANSI/ASHRAE 52.2 for effective mid-range particulate filtration
• 100% synthetic fiber extended-surface media in tapered radial pleat configuration, 10 pleats per lineal foot
• Galvanized expanded metal backing laminated with thermosetting adhesive to maintain pleat geometry and resist corrosion
• Heavy-duty moisture-resistant beverage board frame, 1-piece die-cut construction with recycled content
• Low initial resistance of 0.3 inches WC supports system efficiency and Energy Star compliance
• Rated to 180 degrees F; compliant with UL 900, ANSI/ASHRAE 52.2, USGBC LEED, HARDI, and NAFA standards

Compatibility

Listed for geothermal unit applications per supplier specifications. The 18 inches x 25 inches x 2 inches nominal size fits standard 2-inch filter racks and return-air grilles of the same nominal dimension across a broad range of residential and light-commercial forced-air equipment.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified mechanical contractors. Power down the air handler or furnace at the disconnect or breaker before servicing the filter rack. Confirm airflow direction arrow on the filter frame aligns with system airflow toward the blower. Follow equipment manufacturer service intervals and local mechanical codes; ASHRAE 62.1 and ASHRAE 180 provide general guidance on filter maintenance schedules.

Technical Specifications

• Filter Size: 18 inches x 25 inches x 2 inches
• MERV Rating: 10
• Media Area: 9.02 square feet
• Face Velocity: 500 FPM
• Initial Resistance: 0.3 inches WC
• Final Resistance: 1 inch WC
• Pleats: 10 per lineal foot
• Media Type: 100% synthetic fiber extended surface, pleated
• Frame: 1-piece die-cut, heavy-duty moisture-resistant beverage board
• Backing: Galvanized expanded metal, thermosetting adhesive lamination
• Temperature Rating: 180 degrees F
• Application: Geothermal unit; forced-air HVAC systems
• Standards: UL 900, ANSI/ASHRAE 52.2, USGBC LEED, HARDI, NAFA
• Energy Star Rated: Yes
• Country of Origin: USA

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP18252
