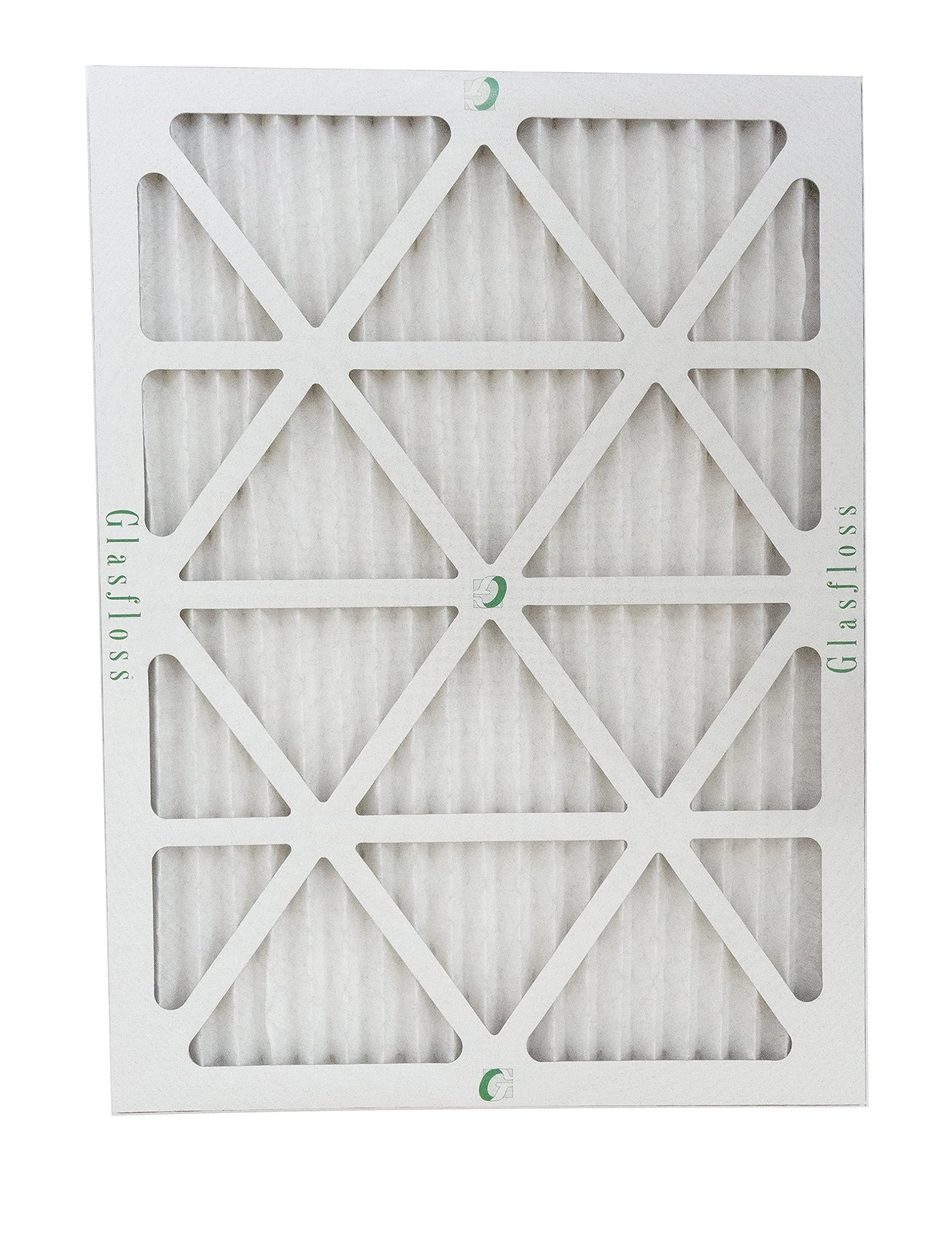

Glasfloss ZLP18201 Z-Line Standard Capacity Pleated Filter 18 x 20 x 1

Product Description

The Glasfloss ZLP18201 Z-Line series pleated filter offers improved performance for many applications. This filter features fibers that do not absorb moisture and will not support microbial growth. The media is made of 100% synthetic fibers and pleated in a tapered radial configuration. It is rated to withstand temperatures up to 180 degrees Fahrenheit.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Fibers do not absorb moisture and will not support microbial growth

Product Highlights

The Glasfloss ZLP18201 filter provides excellent performance and value for a wide range of applications. Ideal for residential, commercial buildings, hospitals, and industrial use.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP18201
• Country of Origin: Domestic

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP18201
• Width: 18 in
• Height: 20 in
• Length: 1 in
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• MERV Rating: 10
• Filter Efficiency: 40% to 85%
• Pleats per Linear Feet: 14
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 18
• Nominal Filter Height in Inches: 20
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Size in Inches (W x H x D): 18 x 20 x 1
• Series: Z-Line ZL
• Temperature: 180 deg F
• Initial Resistance: 0.18 in wg
• Final Resistance: 1 in WG
• Media: Synthetic Fiber
• fpm: 300
• Plates/Linear-Ft Nominal Pleat: 14
• Size: 18x20x1
• Product Type: HVAC_AIR_FILTER
• Manufacturer: Glasfloss Industries
• Flow Rate: 300 fpm
• Media Material: Synthetic Fiber
• Domestic/Import: Domestic
• Temperature Rating: 180 deg F
• Capacity: Standard Capacity
• Construction: Heavy-Duty Moisture Resistant
• Backing: Galvanized Expanded Metal
• Media Area: 4.32 sq-ft
• Rated Velocity: 300 fpm
• Actual Size: 19-1/2 in H x 17-1/2 in W x 7/8 in D
• Depth: 1"
• Specifications: 14 Pleats Per Lineal Foot; 3.70 (Media Square Feet)
