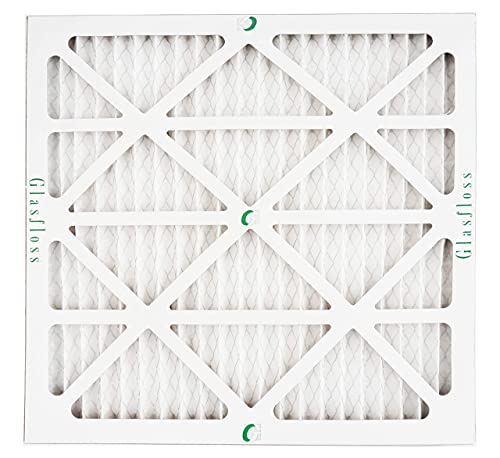

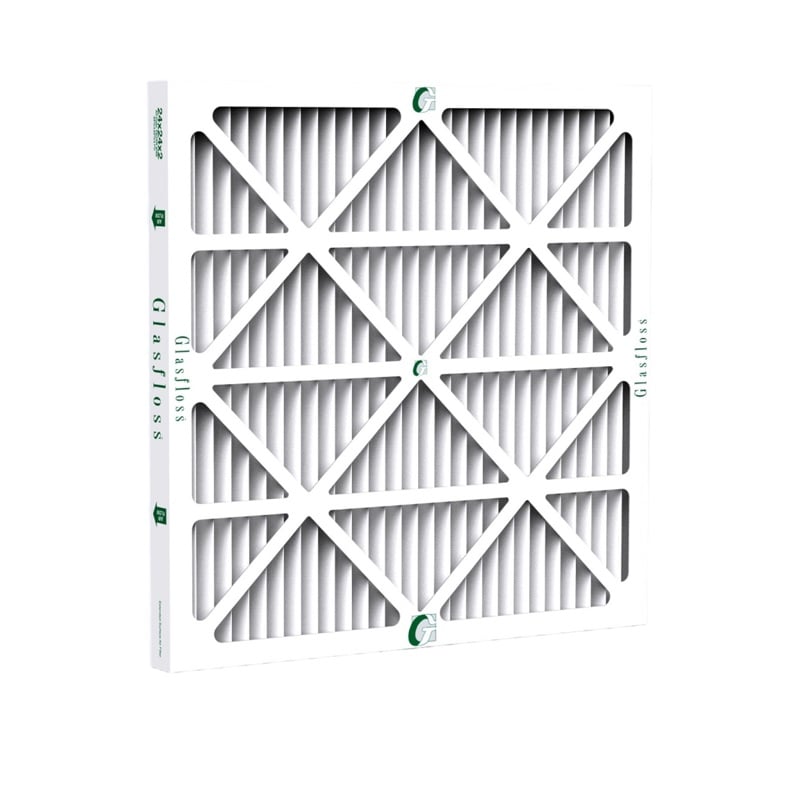

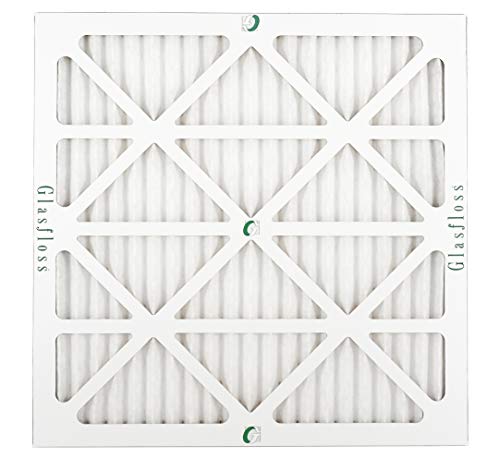

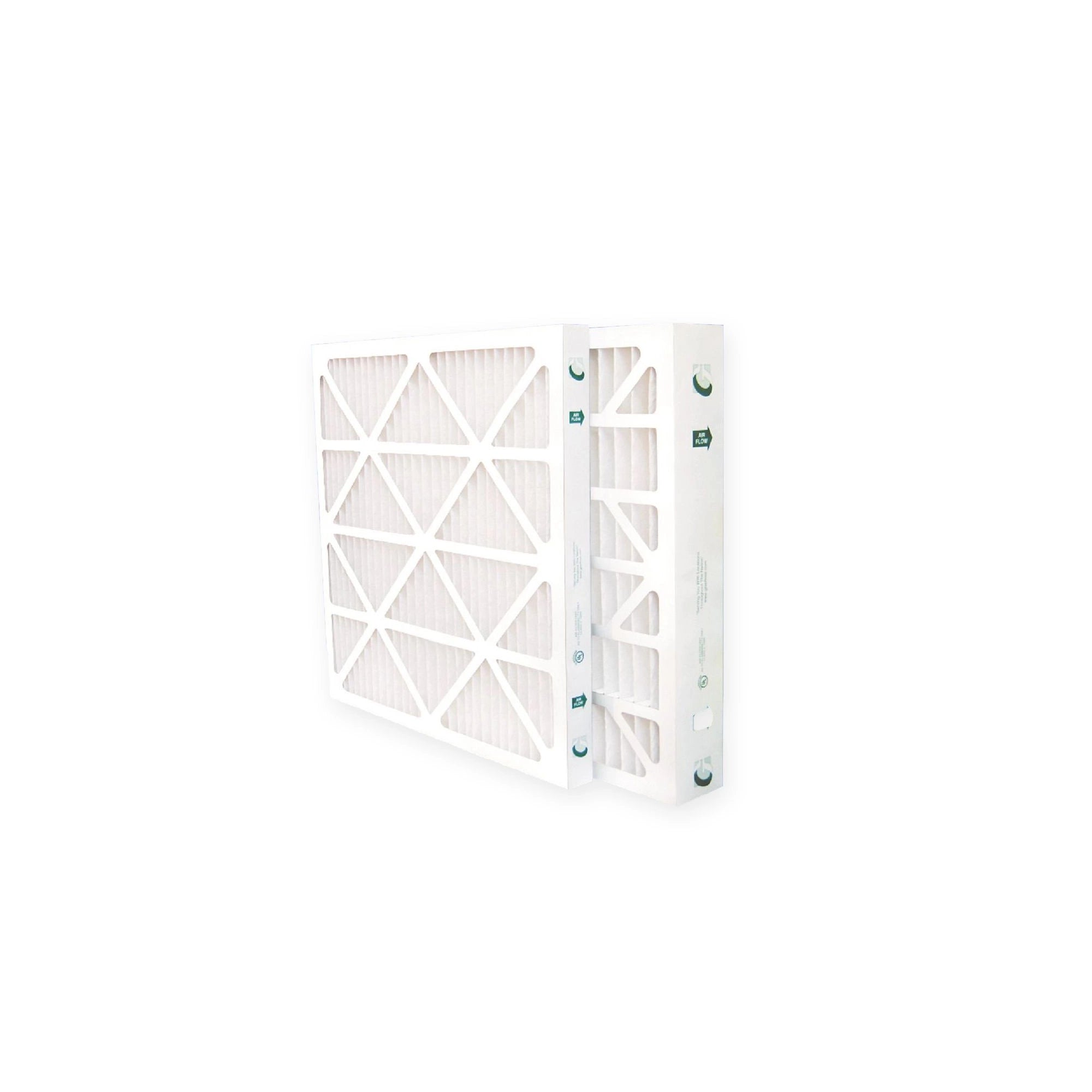

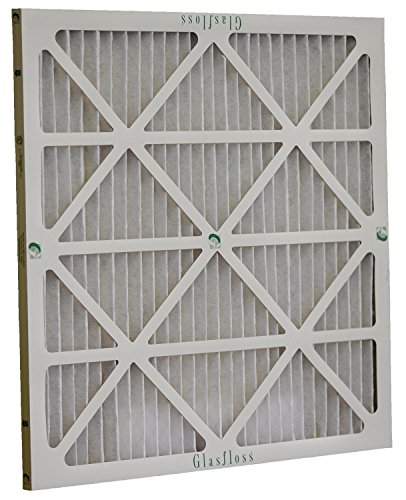

Glasfloss ZLP18182 Z-Line Standard Capacity Pleated Filter 18 inches x 18 inches x 2 inches MERV 10

Product Description

The Glasfloss ZLP18182 Z-Line Series pleated filter offers improved performance for many applications. This filter features fibers that do not absorb moisture and will not support microbial growth. It achieves a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard and is classified under U.L. std. 900.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Fibers do not absorb moisture and will not support microbial growth

Product Highlights

The Glasfloss ZLP18182 filter provides excellent performance and value for a wide range of applications. Ideal for residential, commercial, and industrial filtration.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP18182
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP18182
• Nominal Filter Size in Inches (W x H x D): 18 x 18 x 2
• Width: 18 in
• Height: 18 in
• Length: 2 in
• MERV Rating: 10
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• Filter Efficiency: 40% to 85%
• Removes Fine Dust: Yes
• Removes Smoke: No
• Pleats per Linear Feet: 10
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 18
• Nominal Filter Height in Inches: 18
• Nominal Filter Thickness in Inches: 2
• Maximum Air Temperature: 180 deg F
• Actual Size: 17 1/2 x 17 1/2 x 1 3/4 Inches
• Series: Z-Line ZL
• Flow Rate: 500 fpm
• Nominal Pleat: 10 Plates/Linear-Ft
• Media Material: Synthetic Fiber
• Domestic/Import: Domestic
• Final Resistance: 1 in WG
• Country of Origin: US
• Initial Resistance: 0.27 in wg
• Temperature Rating: 180 deg F
• Application: Geothermal Replacement
• Material: Synthetic
