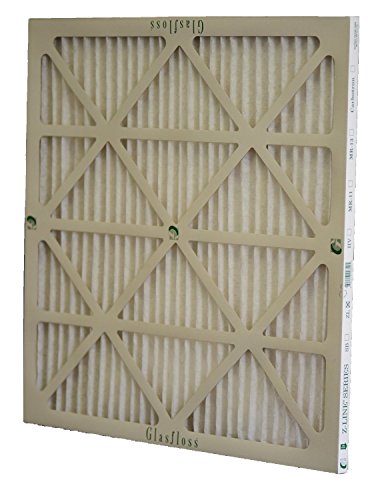

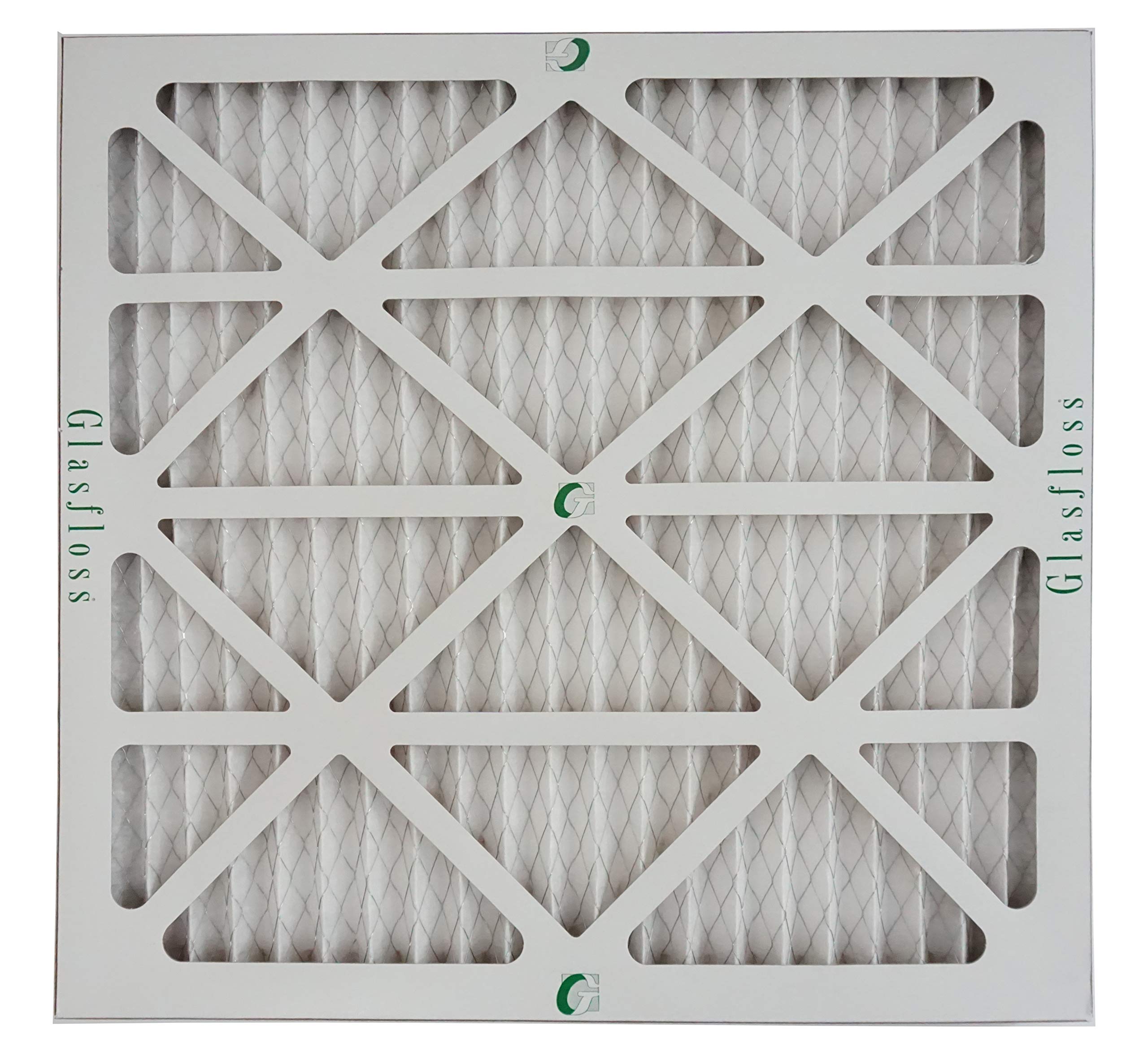

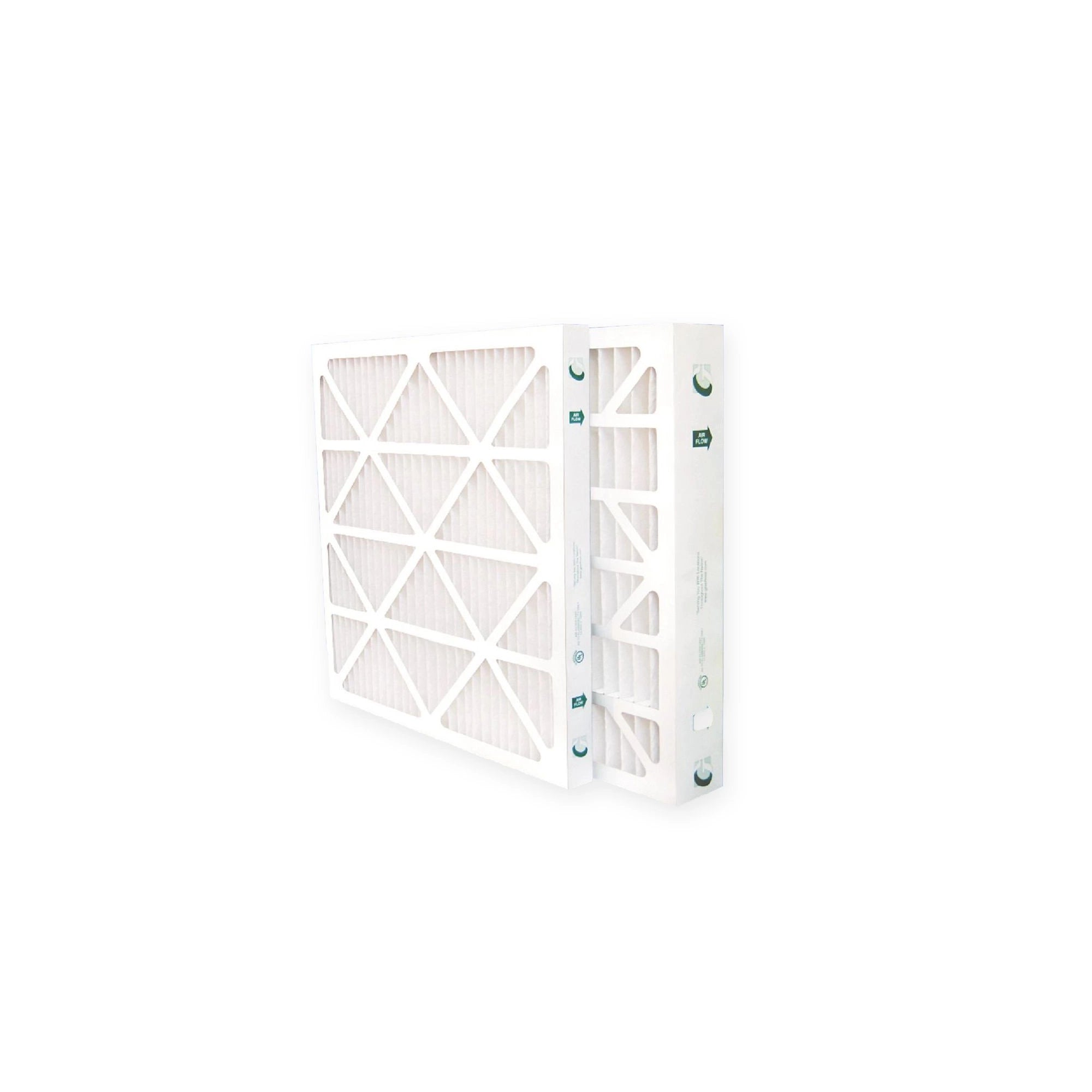

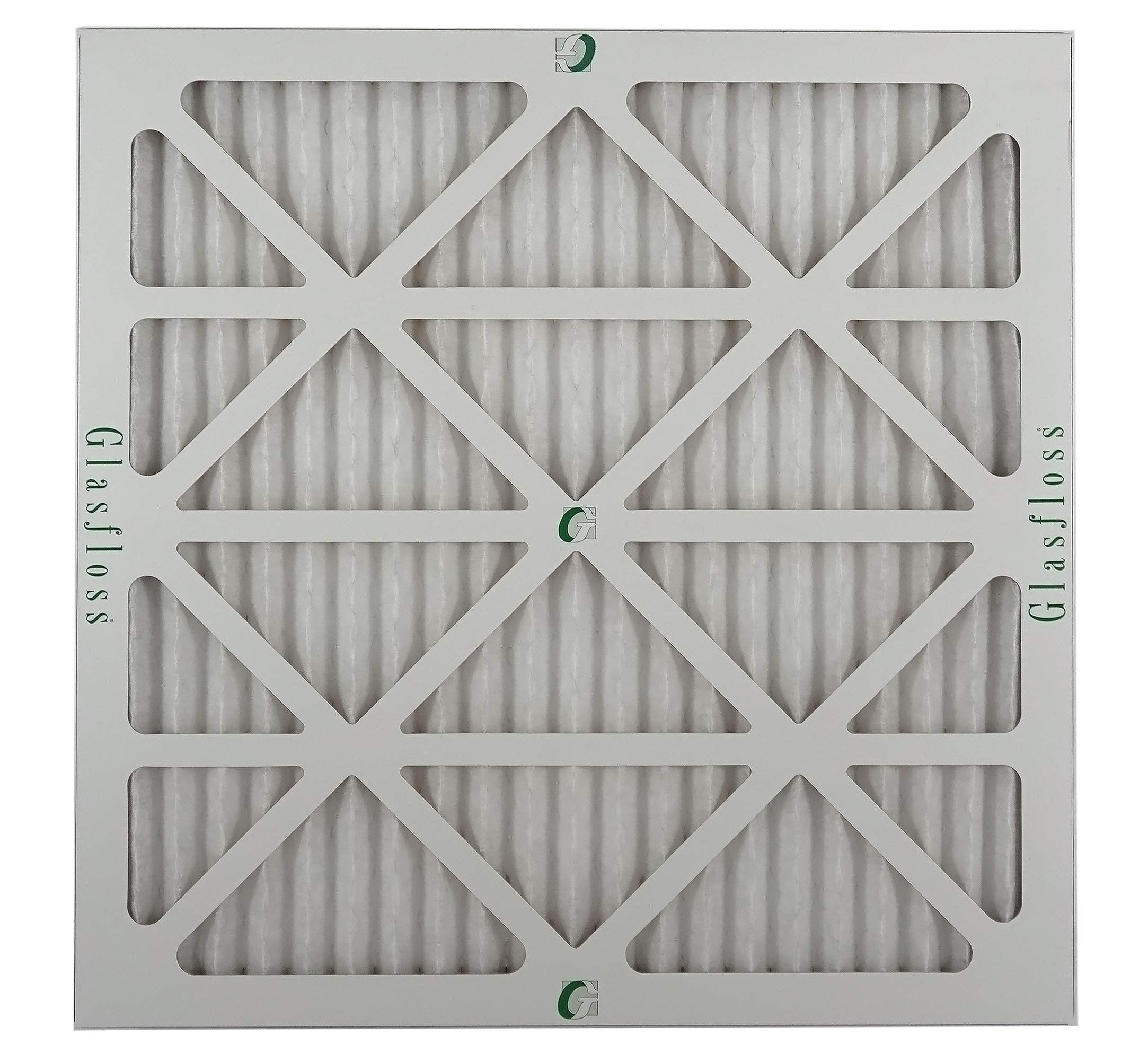

Glasfloss ZLP18181 Z-Line Standard Capacity Pleated Filter 18 inches x 18 inches x 1 inches

Product Description

The Glasfloss ZLP18181 Z-Line series pleated filter offers improved performance for many applications. This filter features fibers that do not absorb moisture and will not support microbial growth. It has a heavy-duty, moisture-resistant construction with a galvanized expanded metal backing. The filter achieves a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Fibers do not absorb moisture and will not support microbial growth

Product Highlights

The Glasfloss ZLP18181 filter is ideal for residential, commercial buildings, hospitals, schools, clean rooms and industrial applications.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP18181
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP18181
• Width: 18 in
• Height: 18 in
• Length: 1 in
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• MERV Rating: 10
• Removes Smoke: No
• Country of Origin: USA
• Filter Efficiency: 40% to 85%
• Removes Fine Dust: Yes
• Pleats per Linear Feet: 14
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 18
• Nominal Filter Height in Inches: 18
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Size in Inches (W x H x D): 18 x 18 x 1
• Series: Z-Line ZL
• Temperature: 180 deg F
• Initial Resistance: 0.18 in wg
• Final Resistance: 1 in WG
• Media: Synthetic Fiber
• Temperature Rating: 180 deg F
• Flow Rate: 300 FPM
• Actual Size: 17-1/2 in W x 17-1/2 in H x 7/8 in D
• Media Area: 3.88 Square Foot
• Application: Industrial, Commercial
• Applicable Standard: ANSI/ASHRAE 52.2, UL, NAFA, HardI, USGBC
• Rated Velocity: 300 fpm
• Media Material: Synthetic Fiber
