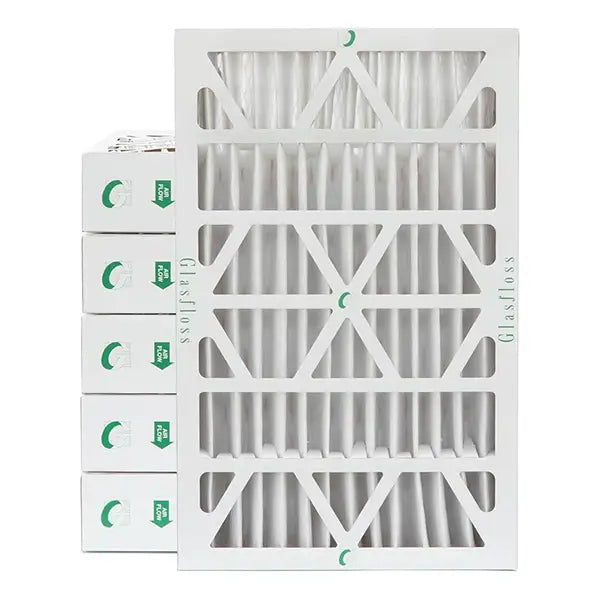

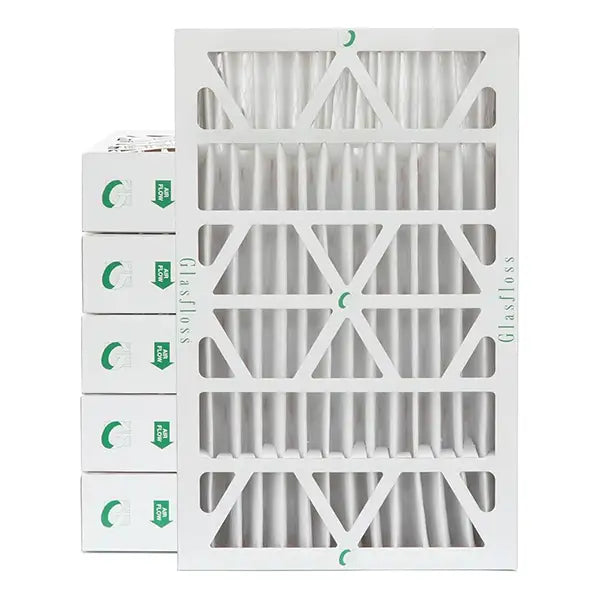

Glasfloss ZLP16254 Pleated Air Filter Merv 10 16x25x4

Product Description

The GLASFLOSS ZLP16254 is a MERV 10 pleated air filter built for demanding HVAC applications where filtration efficiency and structural durability are both required. Measuring 16 inches wide by 25 inches tall by 4 inches deep, this filter uses 100% synthetic fiber extended-surface media arranged in a tapered radial pleat configuration at 9 pleats per lineal foot. The media area totals 14.84 square feet, supporting a rated face velocity of 500 FPM with an initial resistance of 0.25 inches WC and a final resistance of 1 inch WC. Licensed HVAC technicians and facilities maintenance professionals install this filter in commercial and residential systems where particulate loading is moderate to high.

This filter is rated for geothermal unit applications and is appropriate for forced-air systems requiring a balance of airflow and filtration performance. The MERV 10 rating captures a broad range of particulates including fine dust, pollen, mold spores, and dust mites, making it well suited for both commercial and residential installations with air quality requirements. The 4-inch depth accommodates media cabinet housings designed for high-capacity filter cartridges. Energy Star rated and manufactured in the USA, the ZLP16254 meets USGBC LEED credit requirements where applicable and qualifies under HARDI and NAFA standards.

Key Features

• MERV 10 filtration rating per ANSI/ASHRAE 52.2 for effective particulate capture
• 14.84 square feet of 100% synthetic fiber extended-surface pleated media
• Galvanized expanded metal backing laminated to air-exit side maintains pleat geometry and resists rust
• 1-piece die-cut heavy-duty moisture-resistant beverage board frame incorporating post-consumer recycled material
• Rated to 180 degrees F for use in high-temperature airstream environments
• Meets UL 900, ANSI/ASHRAE 52.2, USGBC LEED, HARDI, and NAFA applicable standards
• Energy Star rated and made in the USA

Compatibility

Designed for use in geothermal unit applications and other forced-air HVAC systems accepting a 16 x 25 x 4 inch filter cartridge in a standard media cabinet housing.

Installation Notes

Installation should be performed by a qualified HVAC technician. Power down the air handling unit at the disconnect before servicing the filter cabinet. Confirm airflow direction arrows on the filter frame align with system airflow before seating the cartridge. Inspect the housing gasket or seal surface for damage that could allow bypass air around the filter frame.

Technical Specifications

• MERV Rating: 10
• Overall Width: 16 inches
• Overall Height: 25 inches
• Overall Depth: 4 inches
• Media Area: 14.84 square feet
• Face Velocity: 500 FPM
• Initial Resistance: 0.25 inches WC
• Final Resistance: 1 inch WC
• Pleats: 9 per lineal foot
• Media Type: 100% Synthetic Fiber Extended Surface, Pleated
• Frame: 1-Piece Die-Cut, Heavy Duty Moisture Resistant Beverage Board
• Temperature Rating: 180 degrees F
• Application: Geothermal Unit
• Applicable Standards: UL 900, ANSI/ASHRAE 52.2, USGBC LEED, HARDI, NAFA
• Country of Origin: USA

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP16254
