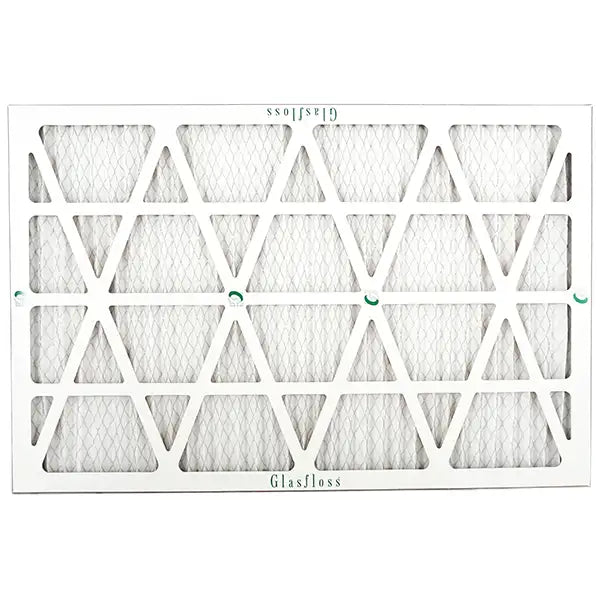

Glasfloss ZLP16241 Pleated Air Filter 16x24x1 Merv 10

Product Description

The GLASFLOSS ZLP16241 is a MERV 10 pleated air filter designed for forced-air HVAC systems where mid-range particulate capture and low pressure drop are both required. Sized at 16 inches x 24 inches x 1 inch, the filter uses 100% synthetic fiber extended-surface media pleated in a tapered radial configuration at 14 pleats per lineal foot, producing 4.7 square feet of effective media area. Initial resistance is 0.21 inches WC and final resistance is 1 inch WC at a rated face velocity of 300 FPM. A galvanized expanded metal backing is laminated to the air-exit side using a thermosetting adhesive to hold pleat geometry under load. The one-piece die-cut frame uses heavy-duty moisture-resistant beverage board incorporating post-consumer material. Licensed HVAC technicians and facilities maintenance personnel handle routine installation.

The ZLP16241 is suited for residential and light commercial air-handling systems, including geothermal units, where a 16 x 24 x 1 nominal filter slot is present. Its synthetic media construction and moisture-resistant frame make it appropriate for environments with elevated humidity or condensation risk near the return plenum. The MERV 10 rating captures mid-range particulates including dust, pollen, mold spores, and fine lint, making it a practical choice for occupied spaces with standard air-quality requirements. Energy Star rated and manufactured in the USA, the filter also satisfies documentation needs for LEED and USGBC projects.

Key Features

• MERV 10 synthetic fiber media captures mid-range particulates at 300 FPM rated face velocity
• 4.7 square feet of extended surface area with 14 pleats per lineal foot for low resistance
• Initial resistance of 0.21 inches WC and final resistance of 1 inch WC
• Galvanized expanded metal backing laminated with thermosetting adhesive maintains pleat geometry
• One-piece die-cut moisture-resistant beverage board frame with post-consumer recycled content
• Energy Star rated; meets UL 900, ANSI/ASHRAE 52.2, USGBC, LEED, HARDI, and NAFA standards
• Rated to 180 degrees F; manufactured in the USA

Compatibility

Designed for geothermal units and standard forced-air HVAC systems accepting a 16 x 24 x 1 nominal pleated filter. Meets applicable standards including UL 900, ANSI/ASHRAE 52.2, USGBC, LEED, HARDI, and NAFA, supporting use in projects requiring certified filtration documentation.

Installation Notes

HVAC technicians and qualified maintenance personnel install this filter. Power down or switch the air-handling unit to the off position before removing the existing filter to prevent unfiltered air bypass and motor debris ingestion. Confirm airflow direction arrows on the filter frame align with the system airflow direction before seating the filter. Replace when final resistance of 1 inch WC is reached or per the authority-having-jurisdiction maintenance schedule.

Technical Specifications

• Dimensions (W x H x D): 16 inches x 24 inches x 1 inch
• MERV Rating: 10
• Media Area: 4.7 square feet
• Pleats: 14 per lineal foot
• Face Velocity: 300 FPM
• Initial Resistance: 0.21 inches WC
• Final Resistance: 1 inch WC
• Media: 100% synthetic fiber extended surface, pleated
• Frame: 1-piece die-cut, heavy-duty moisture-resistant beverage board
• Backing: Galvanized expanded metal
• Temperature Rating: 180 degrees F
• Application: Geothermal unit
• Filter Type: Pleated
• Standards: UL 900, ANSI/ASHRAE 52.2, USGBC, LEED, HARDI, NAFA
• Energy Star Rated: Yes
• Country of Origin: USA

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP16241
