Product Description

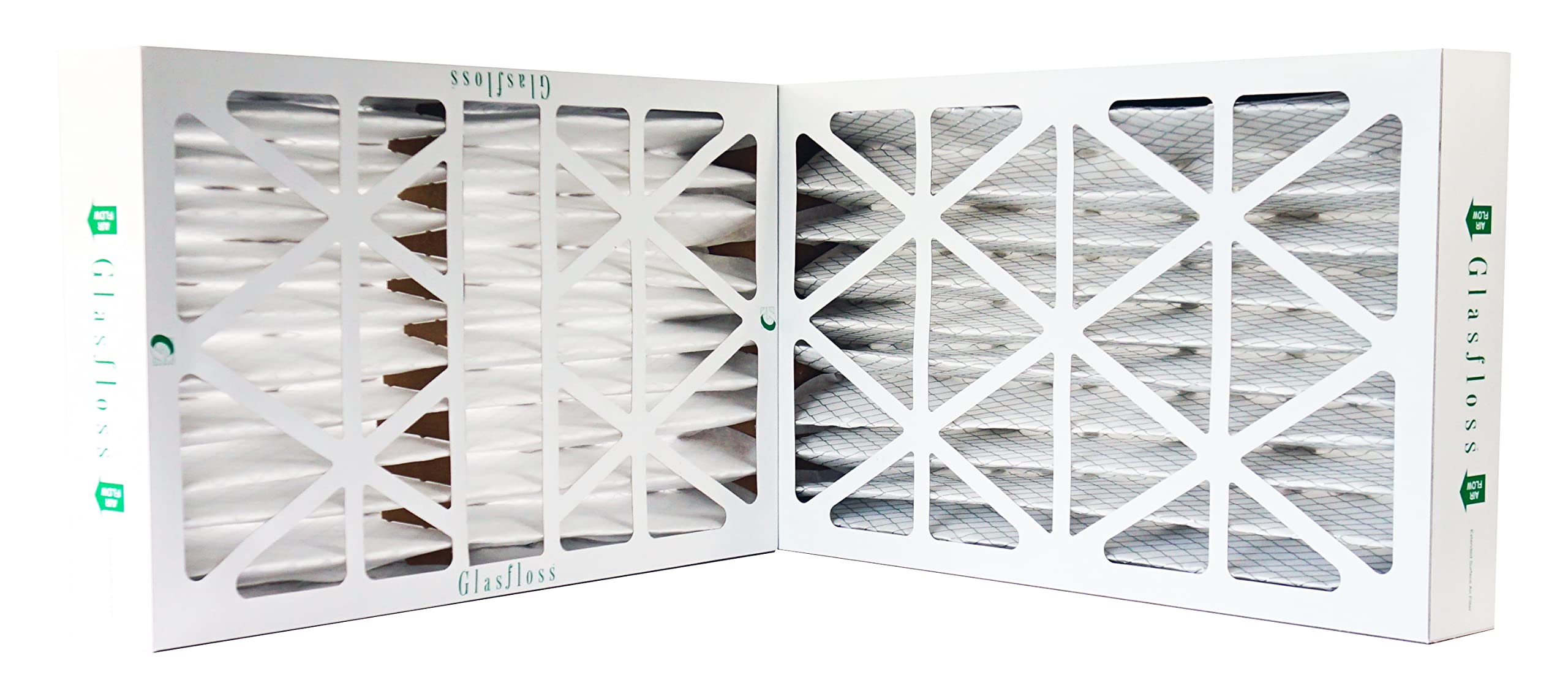

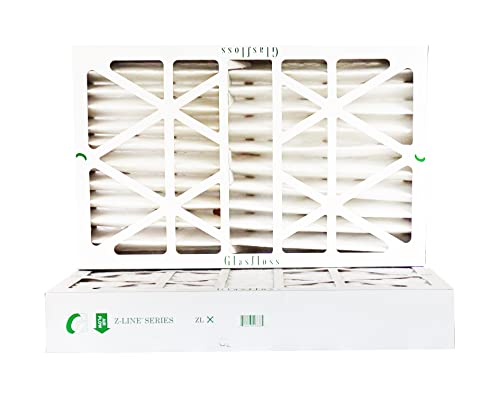

The Glasfloss ZLP16204 Z-Line series pleated filters offer improved performance for many applications. These filters feature fibers that do not absorb moisture and will not support microbial growth. The SB, ZL, and HV filters achieve a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard.
- Heavy-Duty Moisture Resistant Construction

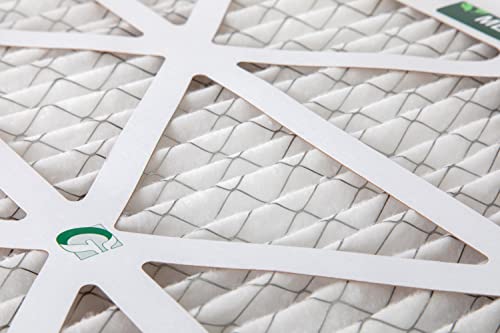

- Galvanized Expanded Metal Backing
- Fibers do not absorb moisture and will not support microbial growth
Product Highlights
This pleated filter is ideal for geothermal unit replacement and removes fine dust.
Product Information
Standard Information
-
Brand: GLASFLOSS
-
Manufacturer Part Number: ZLP16204
-
Country of Origin: USA
Technical Specifications
-
Brand: Glasfloss
-
Filter Efficiency: 40% to 85%
-
Filter Rating (Microns): 1.0 to 10.0
-
Filter Type: Pleated
-
Frame Type: Die-Cut Beverage Board
-
Height: 20 in
-
Length: 4 in
-
MERV Rating: 10
-
Nominal Filter Height in Inches: 20
-
Nominal Filter Size in Inches (W x H x D): 16 x 20 x 4
-
Nominal Filter Thickness in Inches: 4
-
Nominal Filter Width in Inches: 16
-
Pleats per Linear Feet: 9
-
Prop 65: Yes
-
Removes Fine Dust: Yes
-
Removes Smoke: No
-
Width: 16 in
-
Country of Origin: USA
-
MPN: ZLP16204
-
Series: Z-Line ZL
-
Flow Rate: 500 fpm
-
Media Material: Synthetic Fiber
-
Domestic/Import: Domestic
-
Final Resistance: 1 in WG
-
Initial Resistance: 0.25 in wg
-
Temperature Rating: 180 deg F
-
Filter Size: 16X20X4
-
Construction: Heavy-Duty Moisture Resistant
-
Media: 100% synthetic fibers
-
Frame: Heavy-duty moisture-resistant beverage board
-
Actual Size: 15-1/2 in W x 23-1/2 in H x 3-3/4 in D
-
Rated Velocity: 500 fpm
-
Overall Dimensions: 15-1/2 in W x 3-3/4 in D x 19-1/2 in H
