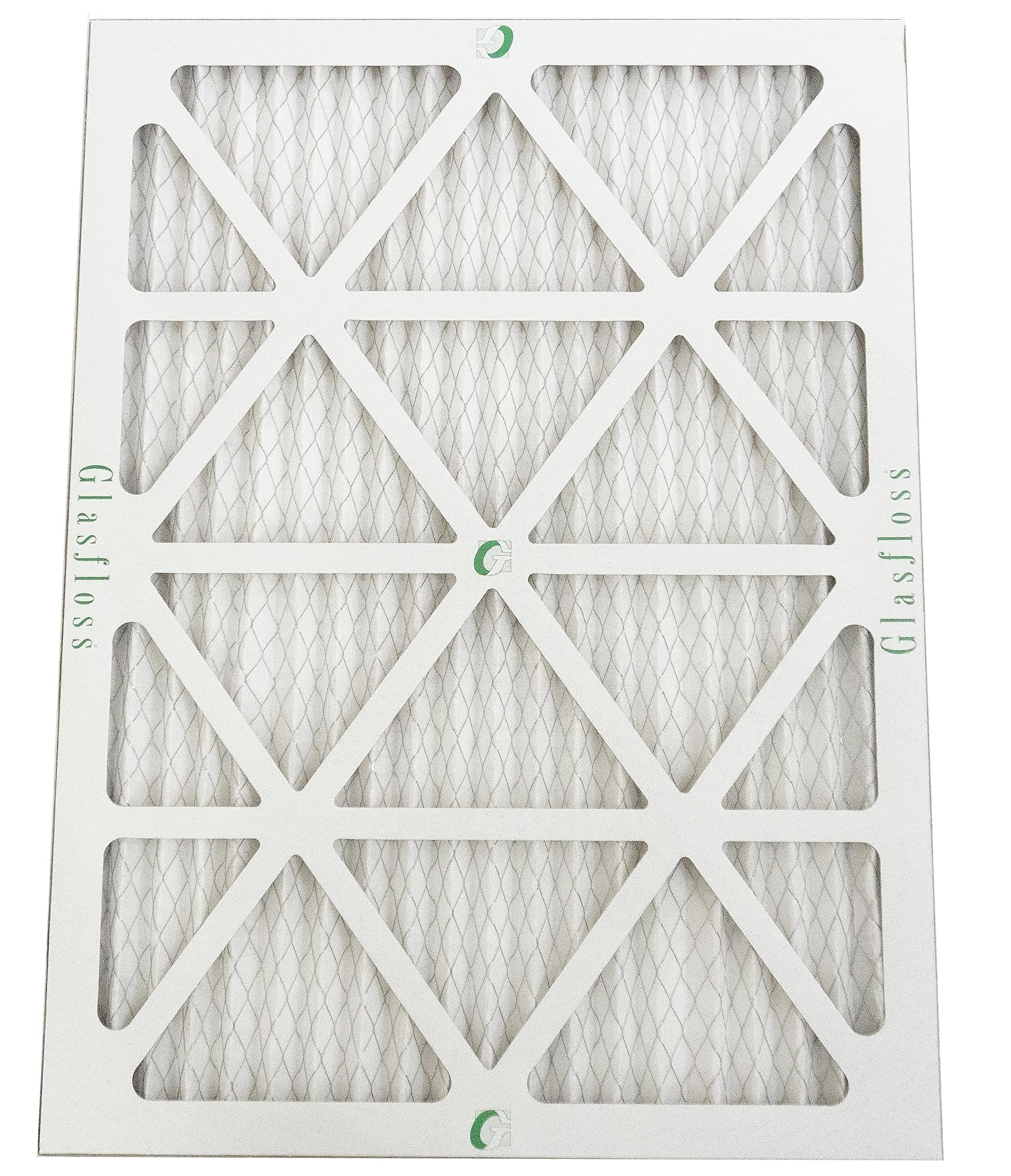

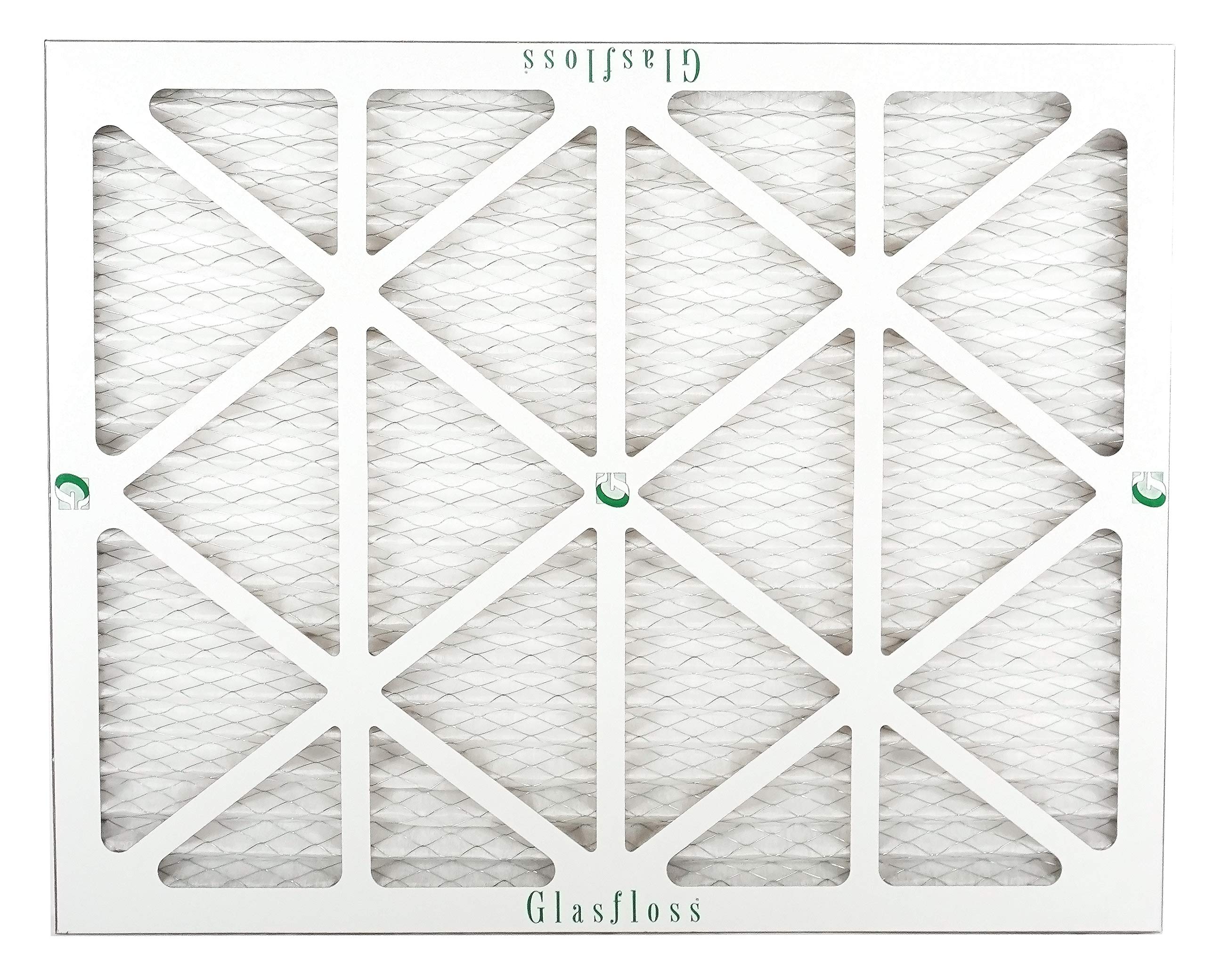

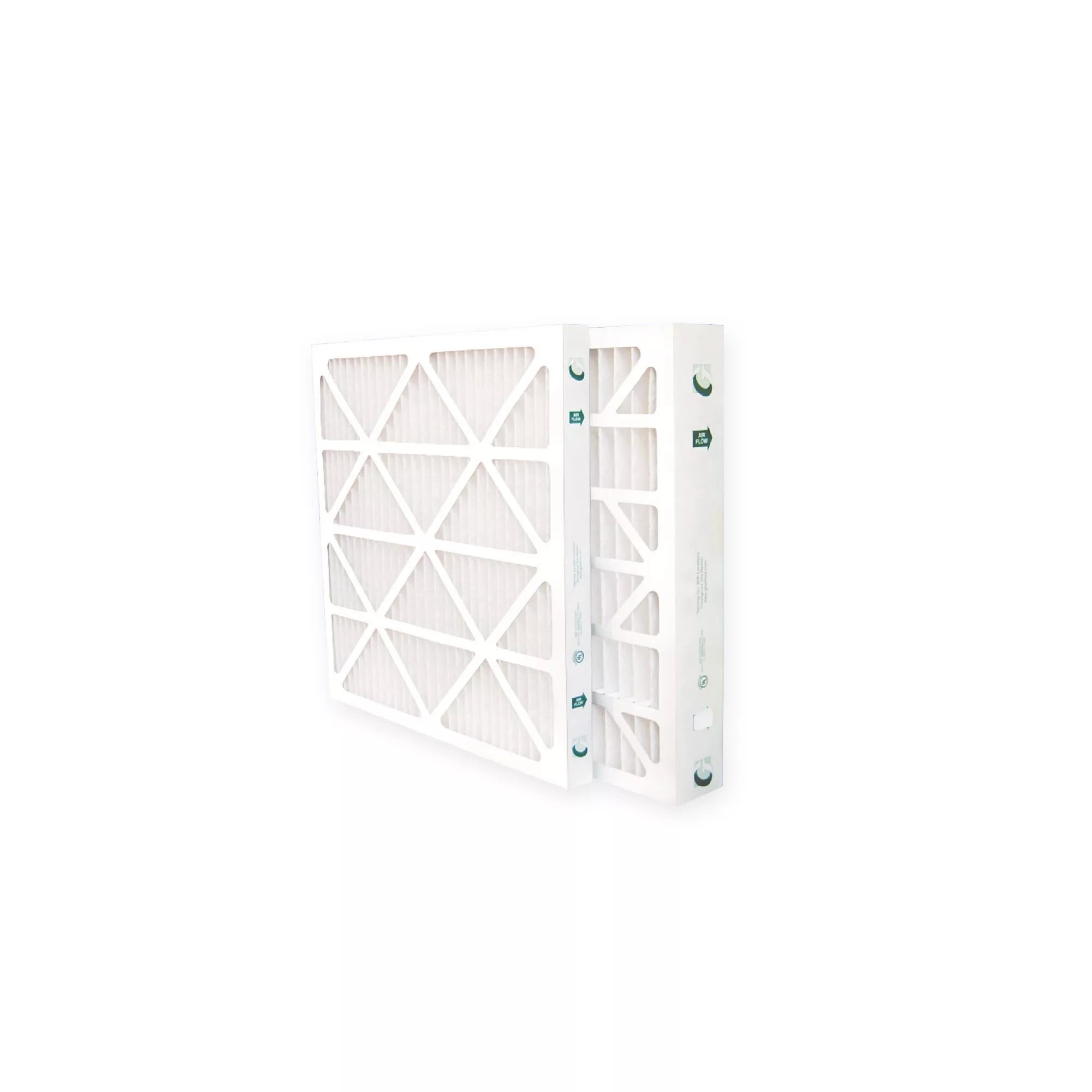

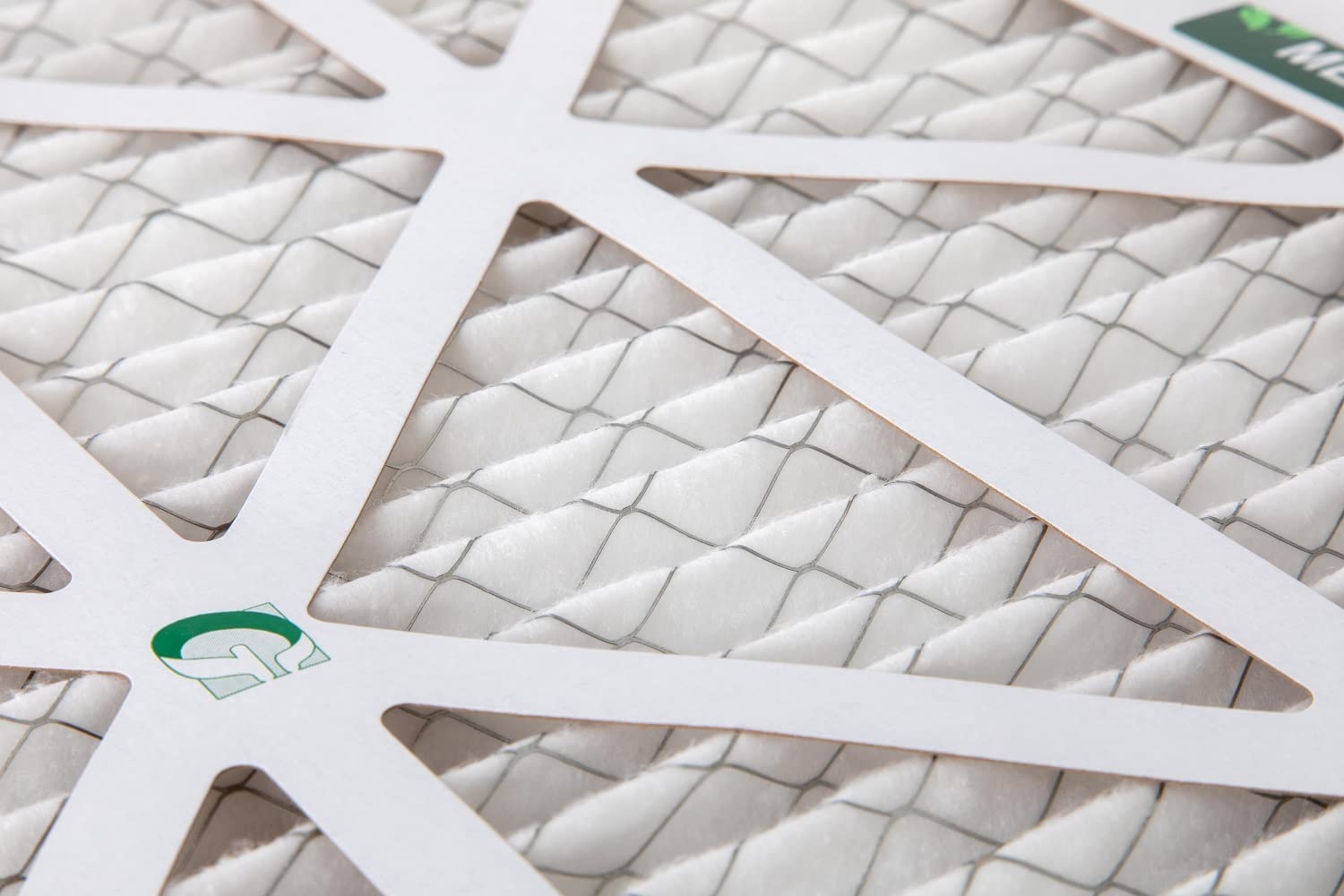

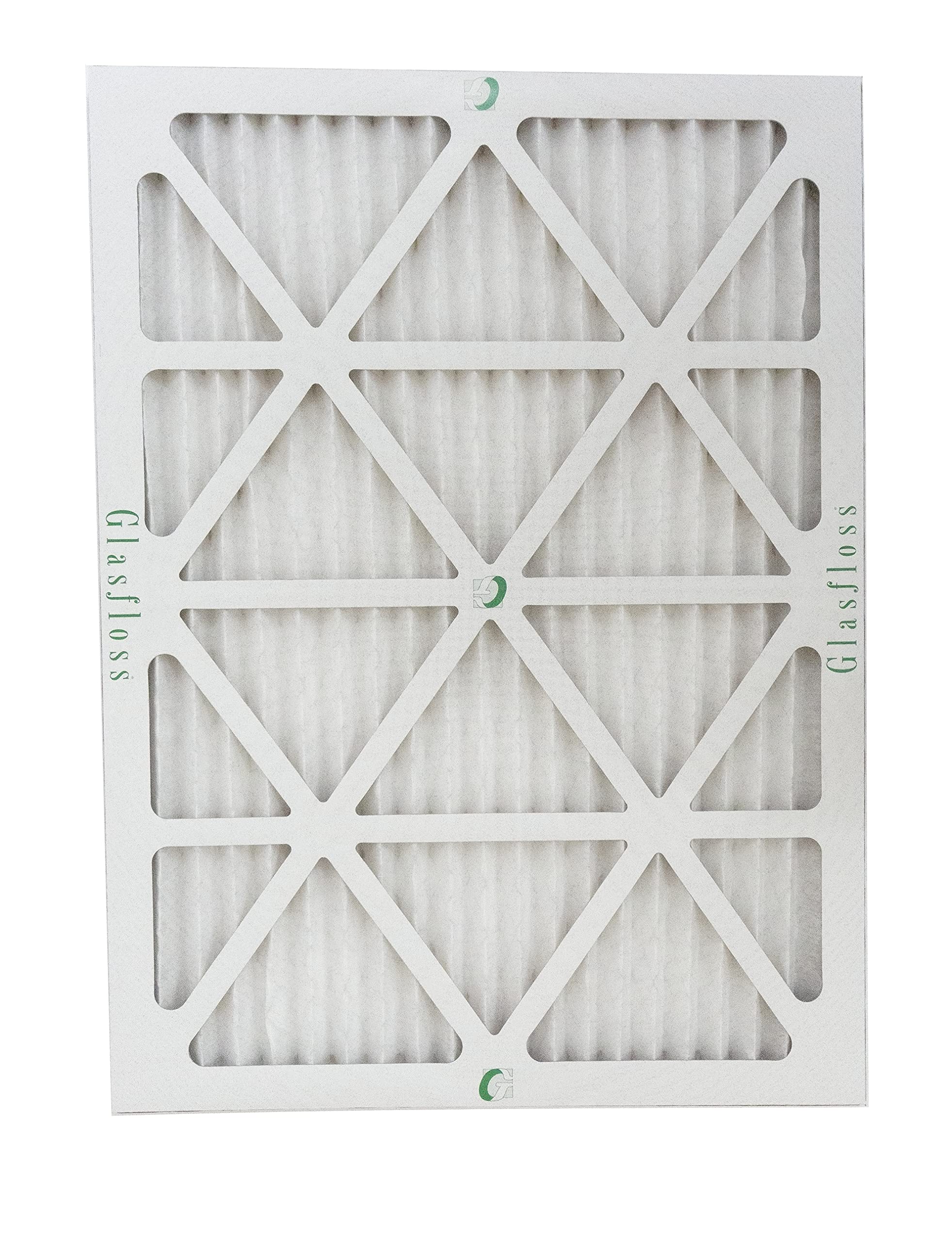

Glasfloss ZLP16201 Z-Line Standard Capacity Pleated Filter 16 inches x 20 inches x 1 inches

Product Description

The Glasfloss ZLP16201 Z-Line Series pleated filters offer improved performance for virtually every application. These filters feature fibers which do not absorb moisture and will not support microbial growth. The SB, ZL and HV filters achieve a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard. The filter media is made of 100% synthetic fibers.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Fibers do not absorb moisture and will not support microbial growth

Product Highlights

Glasfloss Z-Line filters provide excellent performance and value for a wide range of applications. Ideal for use as geothermal unit replacement filters.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP16201
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP16201
• Width: 16 in
• Height: 20 in
• Length: 1 in
• Prop 65: Yes
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• MERV Rating: 10
• Removes Smoke: No
• Removes Fine Dust: Yes
• Filter Efficiency: 40% to 85%
• Country of Origin: USA
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 16
• Nominal Filter Height in Inches: 20
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Size in Inches (W x H x D): 16 x 20 x 1
• UOM: EA
• Series: Z-Line® ZL
• Depth: 1 in
• Temperature: 180 deg F
• Initial Resistance: 0.18 in wg
• Final Resistance: 1 in WG
• Media: Synthetic Fiber
• Nominal Pleat: 14 Plates/Linear-Ft
• Media Material: Synthetic Fiber
• Domestic/Import: Domestic
• Filtration Rating: MERV 10
• Product Type: HVAC_AIR_FILTER
• Number of Items: 1.0
• Size: 16x20x1
• Rated Velocity: 300 fpm
• Pleats per Linear Feet: 14
