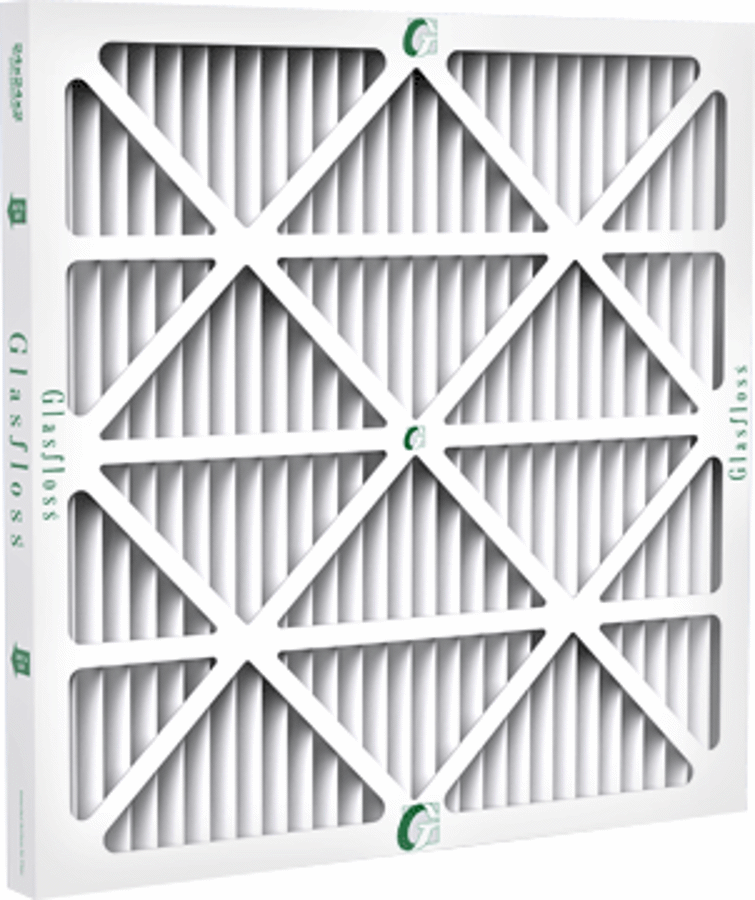

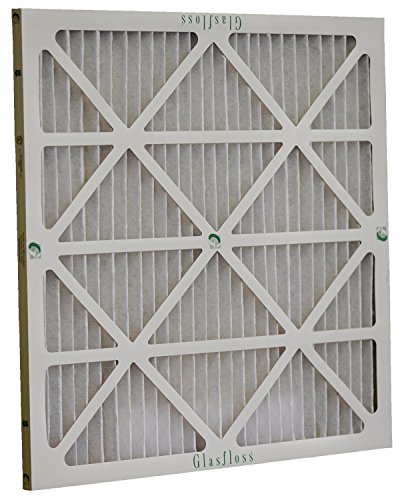

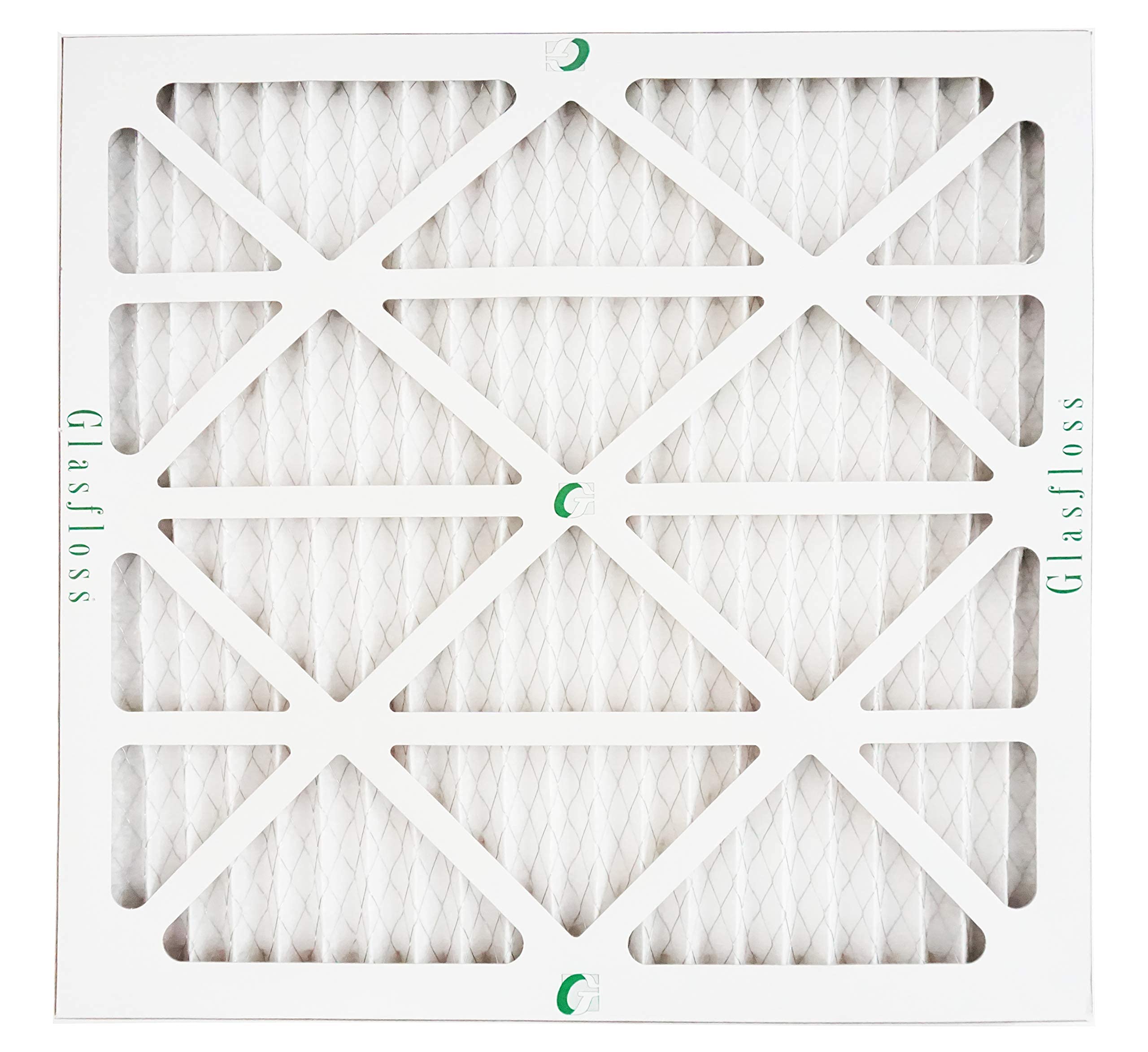

Glasfloss ZLP16162 Z-Line Standard Capacity Pleated Filter 16 inches x 16 inches x 2 inches

Product Description

The Glasfloss ZLP16162 Z-Line series pleated filter offers improved performance for various applications. Constructed with heavy-duty, moisture-resistant materials and a galvanized expanded metal backing. Fibers do not absorb moisture and will not support microbial growth. Achieves a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Geothermal Unit Replacement Filters

Product Highlights

This filter provides excellent performance and value for a wide range of applications. Ideal for residential, commercial, and industrial HVAC systems.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP16162
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP16162
• Width: 16 in
• Height: 16 in
• Length: 2 in
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• MERV Rating: 10
• Filter Efficiency: 40% to 85%
• Removes Fine Dust: Yes
• Removes Smoke: No
• Pleats per Linear Feet: 10
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 16
• Nominal Filter Height in Inches: 16
• Nominal Filter Thickness in Inches: 2
• Nominal Filter Size in Inches (W x H x D): 16 x 16 x 2
• Prop 65: Yes
• Air Flow: 500 fpm
• Maximum Temperature: 180 deg F
• Initial Resistance: 0.27 in wg
• Final Resistance: 1 in WG
• Media: Synthetic Fiber
• Series: Z-Line ZL
• Temperature Rating: 180 deg F
• Flow Rate: 300 fpm
• Domestic/Import: Domestic
• Country of Origin: US
• Mfg Standards/Approvals: ANSI/ASHRAE 52.2, Energy Star Qualified, LEED Certified, UL 900
• Media Material: Synthetic Fiber
• Frame Material: Beverage Board
• Media Area: 4.98 sq-ft
• Rated Velocity: 500 fpm
• Actual Size: 15-1/2 x 15-1/2 x 1-3/4 in
• Filter Size: 16" x 16" x 2"
