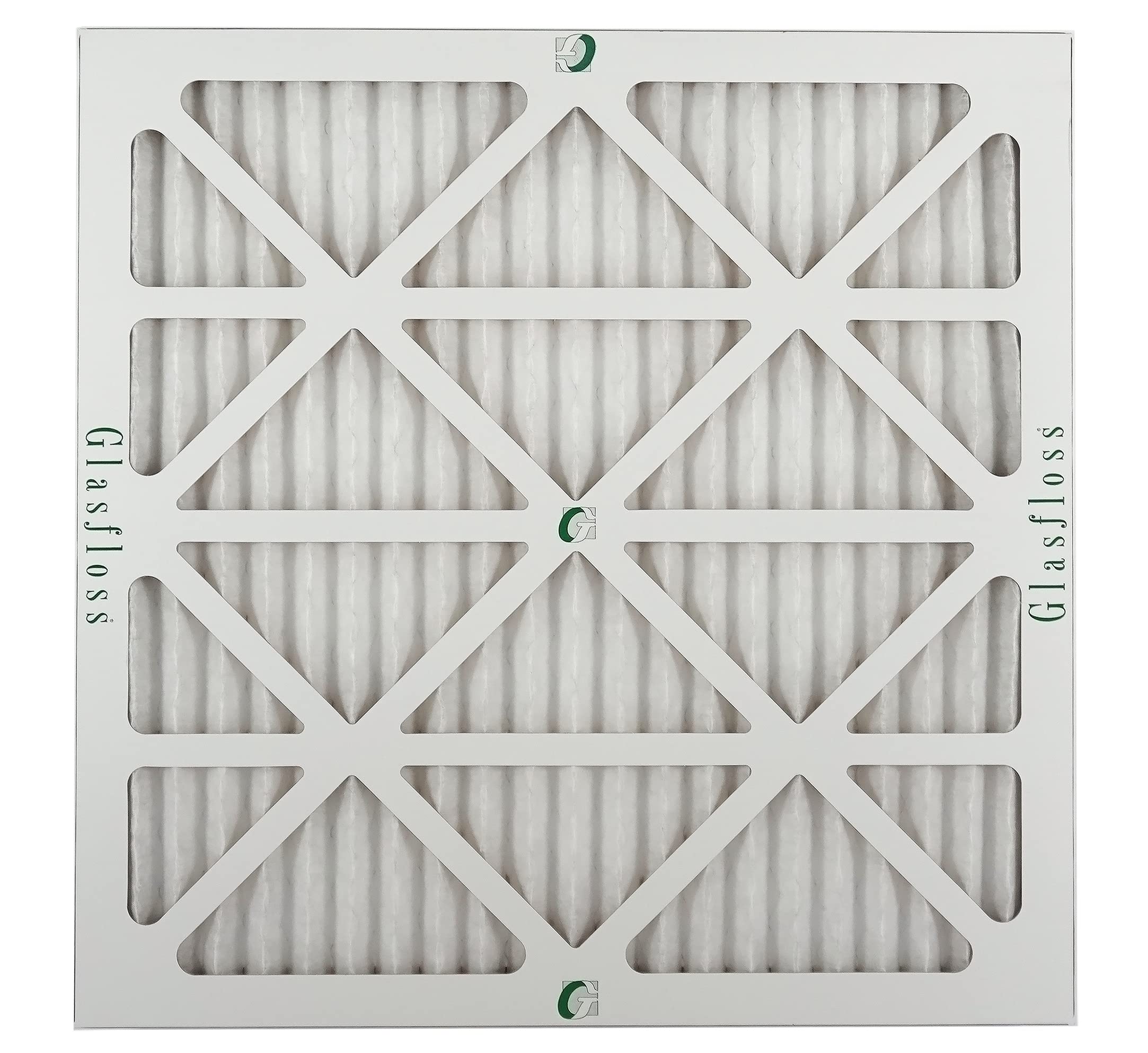

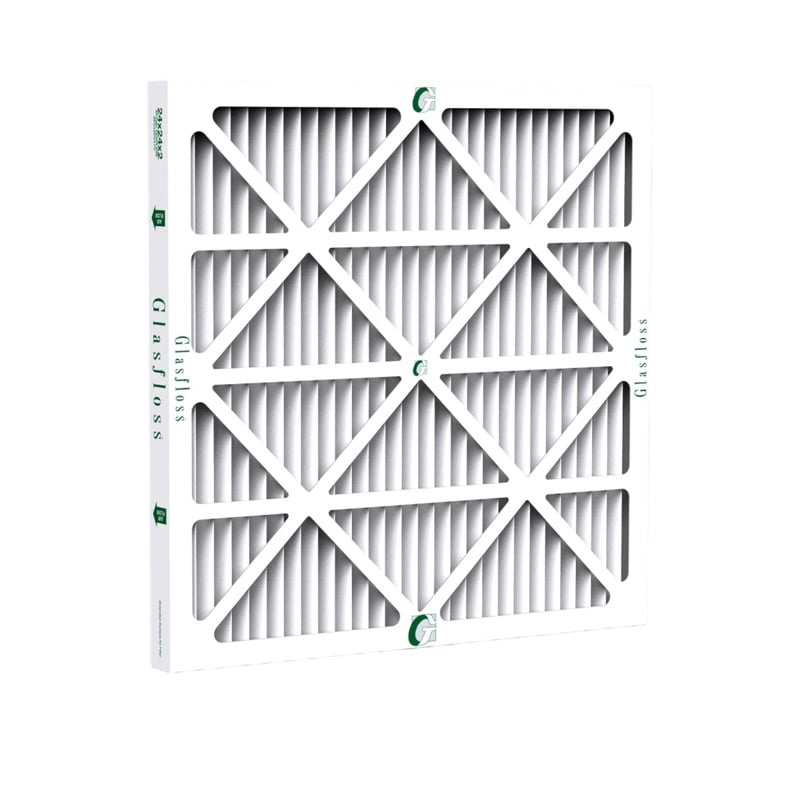

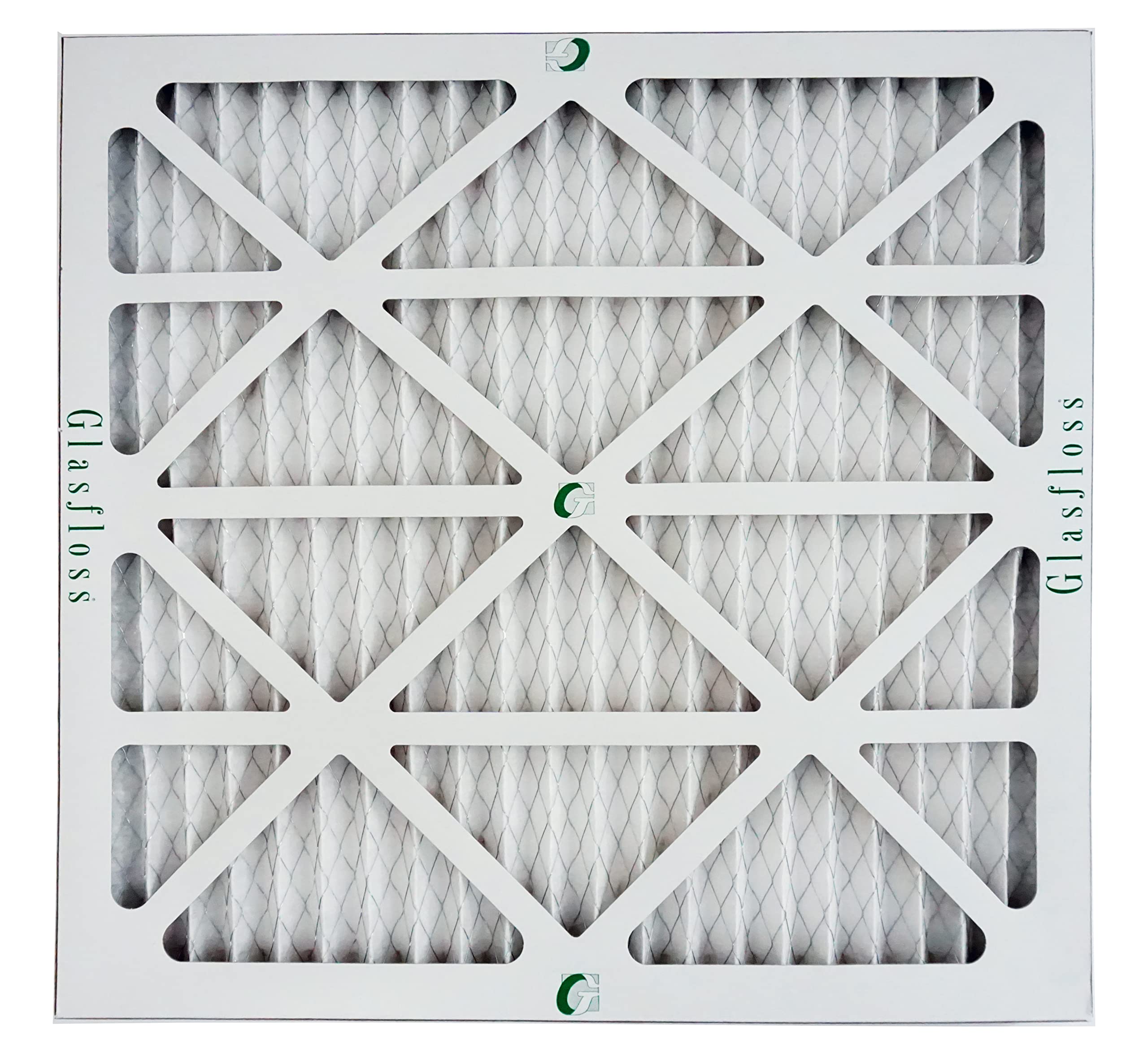

Glasfloss ZLP16161 Z-Line Standard Capacity Pleated Filter 16 inches x 16 inches x 1 inches MERV 10

Product Description

The Glasfloss ZLP16161 Z-Line series pleated filters offer improved performance for various applications. These filters feature fibers that resist moisture and microbial growth. The extended-surface pleated media is made of 100% synthetic fibers and laminated to a galvanized metal backing. These filters are classified under U.L. std. 900 and can withstand temperatures up to 180 degrees Fahrenheit.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Fibers do not absorb moisture and will not support microbial growth

Product Highlights

The Glasfloss ZLP16161 filter provides excellent performance and value for residential, commercial, and industrial HVAC applications.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP16161
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP16161
• Width: 16 in
• Height: 16 in
• Length: 1 in
• Prop 65: Yes
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• MERV Rating: 10
• Removes Smoke: No
• Country of Origin: USA
• Filter Efficiency: 40% to 85%
• Removes Fine Dust: Yes
• Pleats per Linear Feet: 14
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 16
• Nominal Filter Height in Inches: 16
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Size in Inches (W x H x D): 16 x 16 x 1
• UOM: EA
• Flow Rate: 300 fpm
• Maximum Temperature: 180 deg F
• Initial Resistance: 0.18 in wg
• Final Resistance: 1 in WG
• Media: Synthetic Fiber
• Temperature Rating: 180 deg F
• Series: Z-Line ZL
• Actual Size: 15-1/2 in W x 15-1/2 in H x 7/8 in D
• Resistance: 0.21 Inch WG
• Frame Detail: Die-Cut, Heavy Duty Moisture Resistant Beverage Board
• Application: Residential, Commercial, Industrial
• Applicable Standard: ANSI/ASHRAE 52.2, USGBC, NAFA, HardI, UL
