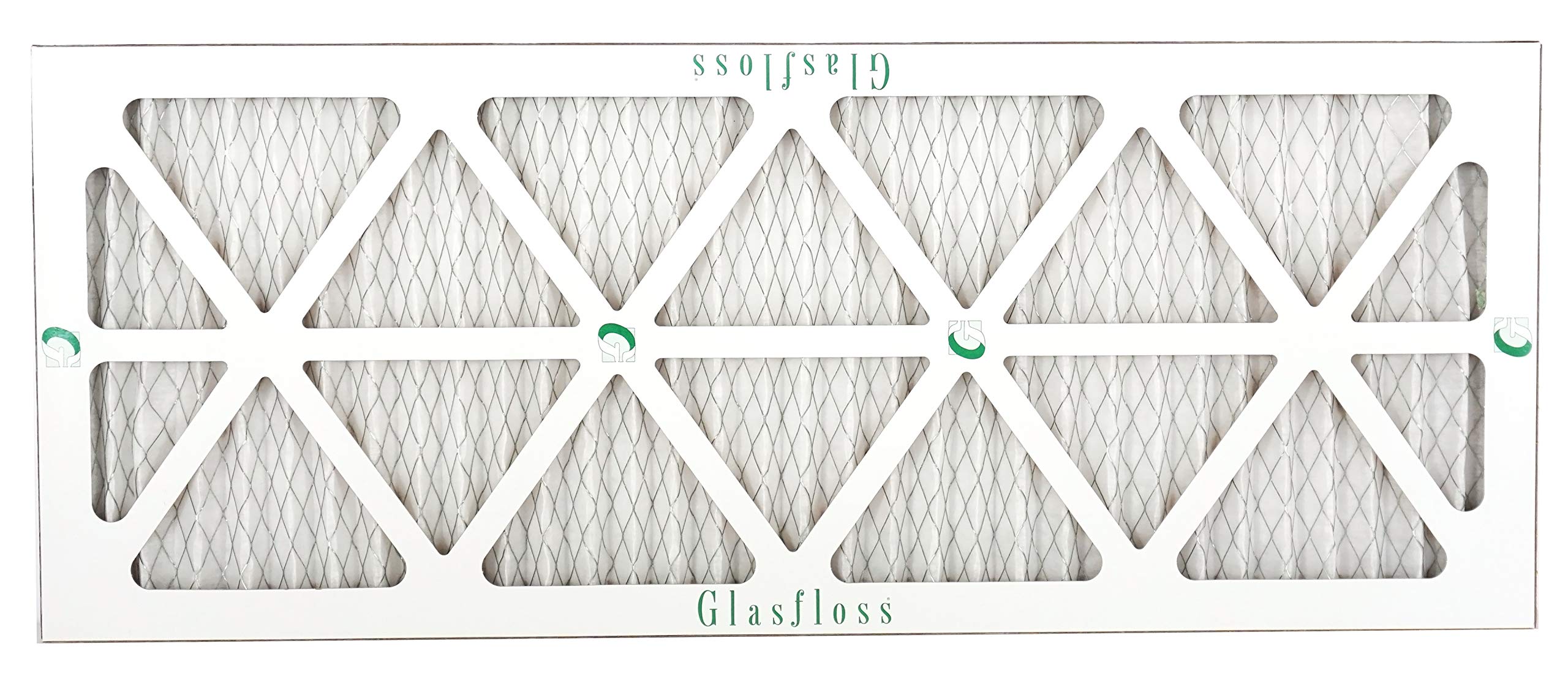

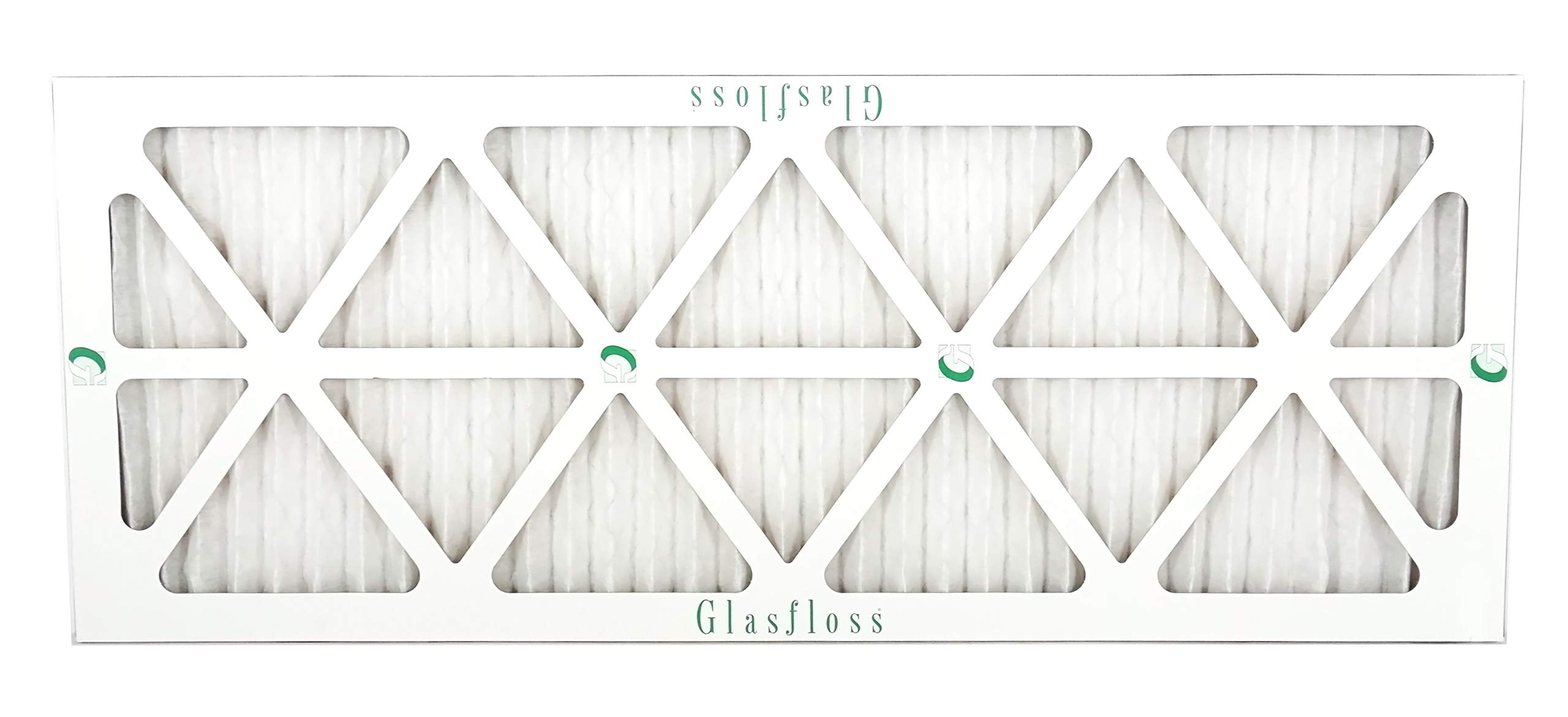

Glasfloss ZLP14301 Z-Line Standard Capacity Pleated Filter 14 x 30 x 1 MERV 10

Product Description

The Glasfloss ZLP14301 Z-Line series pleated filters offer improved performance for many applications. These filters feature fibers that do not absorb moisture and will not support microbial growth. The media is pleated in a tapered radial configuration and has a galvanized expanded metal backing. The filters achieve a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Geothermal Unit Replacement Filters

Product Highlights

Glasfloss ZLP14301 filters provide excellent performance and value for a wide range of applications. They are classified under U.L. std. 900 and are rated to withstand temperatures up to 180 degrees Fahrenheit.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP14301
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• Filter Efficiency: 40% to 85%
• Filter Rating (Microns): 1.0 to 10.0
• Filter Type: Pleated
• Frame Type: Die-Cut Beverage Board
• Height: 30 in
• Length: 1 in
• MERV Rating: 10
• Nominal Filter Height in Inches: 30
• Nominal Filter Size in Inches (W x H x D): 14 x 30 x 1
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Width in Inches: 14
• Pleats per Linear Feet: 14
• Removes Fine Dust: Yes
• Removes Smoke: No
• Width: 14 in
• Country of Origin: USA
• Prop 65: Yes
• MPN: ZLP14301
• Actual Size: 13 1/2 x 29 1/2 x 7/8 Inch
• Filter Media: Synthetic Fiber
• Application: Residential, Commercial Buildings, Hospitals, School/Universities, Clean Rooms, and Industrial application for pre-filter use
• Maximum Operating Temperature: 180 F
• Series: Z-Line ZL
• Flow Rate: 300 fpm
• Media Material: Synthetic Fiber
• Domestic/Import: Domestic
• Final Resistance: 1 in WG
• Initial Resistance: 0.18 in wg
• Temperature Rating: 180 deg F
• Specifications: 14 Pleats Per Lineal Foot; 4.92 (Media Square Feet)
• Rated Velocity: 300 fpm
