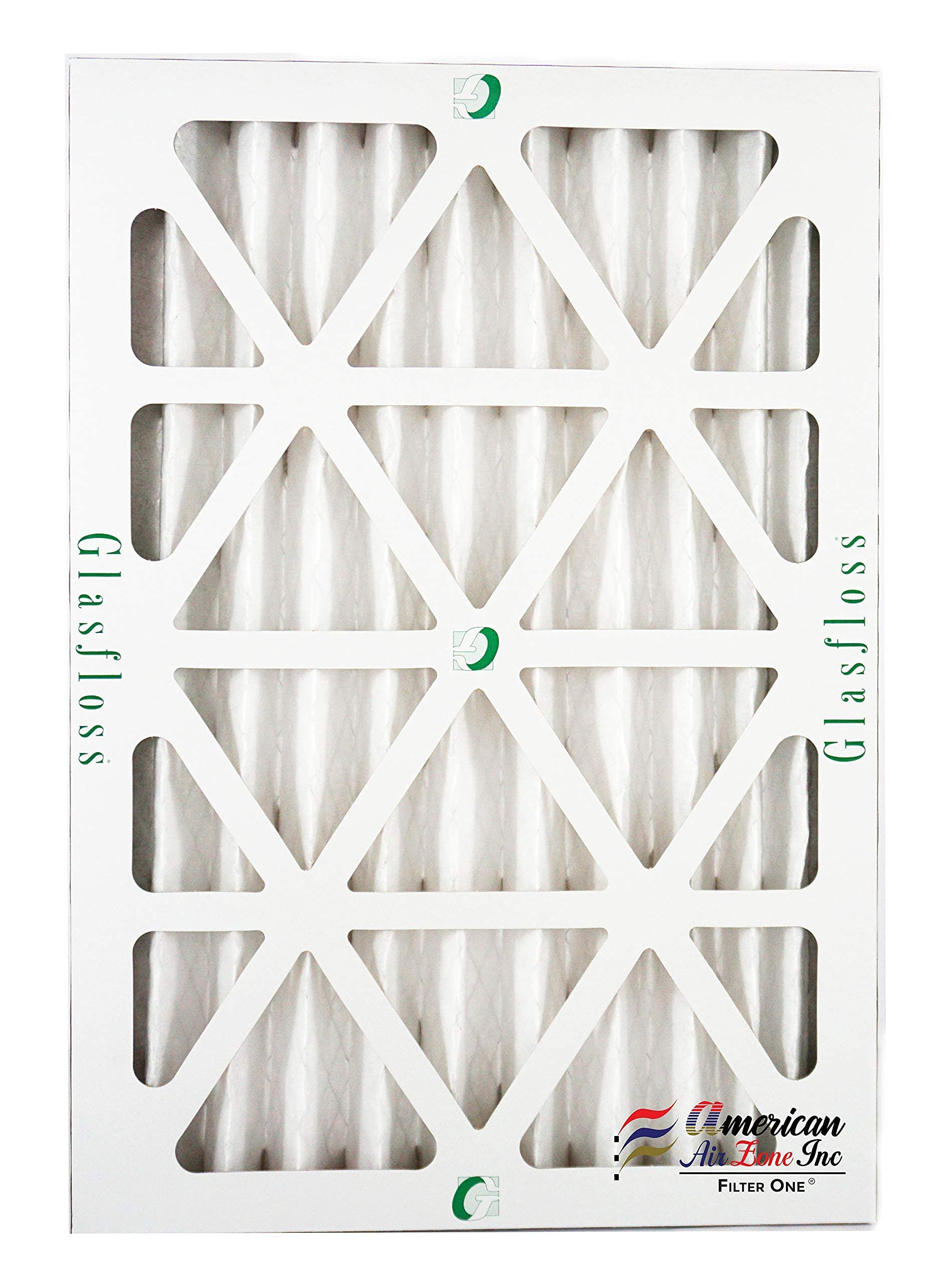

Glasfloss ZLP14202 Z-Line Standard Capacity Pleated Filter 14 inches x 20 inches x 2 inches

Product Description

The Glasfloss ZLP14202 Z-Line series pleated filter offers improved performance for many applications. This filter features fibers that do not absorb moisture and will not support microbial growth. It has heavy-duty moisture-resistant construction and a galvanized expanded metal backing. The filter achieves a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Fibers do not absorb moisture
• Will not support microbial growth

Product Highlights

This pleated filter offers excellent performance and value for a wide range of applications, including geothermal unit replacements.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP14202
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP14202
• Width: 14 in
• Height: 20 in
• Depth: 2 in
• MERV Rating: 10
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• Filter Efficiency: 40% to 85%
• Pleats per Linear Feet: 10
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 14
• Nominal Filter Height in Inches: 20
• Nominal Filter Thickness in Inches: 2
• Nominal Filter Size in Inches (W x H x D): 14 x 20 x 2
• Air Flow: 500 fpm
• Maximum Temperature: 180 deg F
• Initial Resistance: 0.27 in wg
• Final Resistance: 1 in WG
• Media Material: Synthetic Fiber
• Temperature Rating: 180 deg F
• Actual Size: 13-1/2 x 19-1/2 x 1-3/4
• Media Area: 5.76 Square Foot
• Number of Pleats: 10 per Foot
• Application: Residential, Commercial, Industrial
• Applicable Standard: ANSI/ASHRAE 52.2, USGBC, NAFA, HardI, UL
• Series: Z-Line ZL
• Country of Origin: USA
• Prop 65: Yes
• Removes Smoke: No
• Removes Fine Dust: Yes
