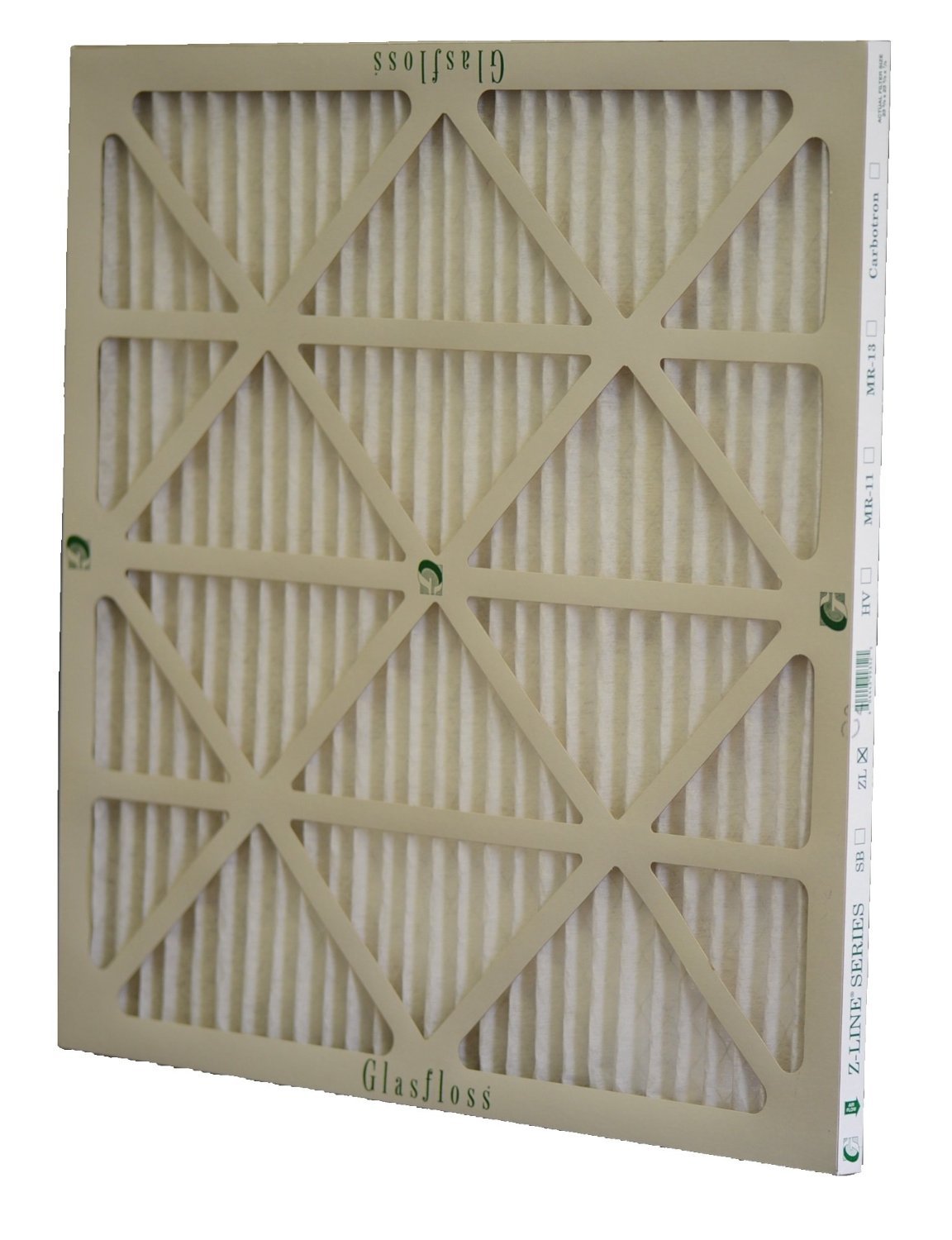

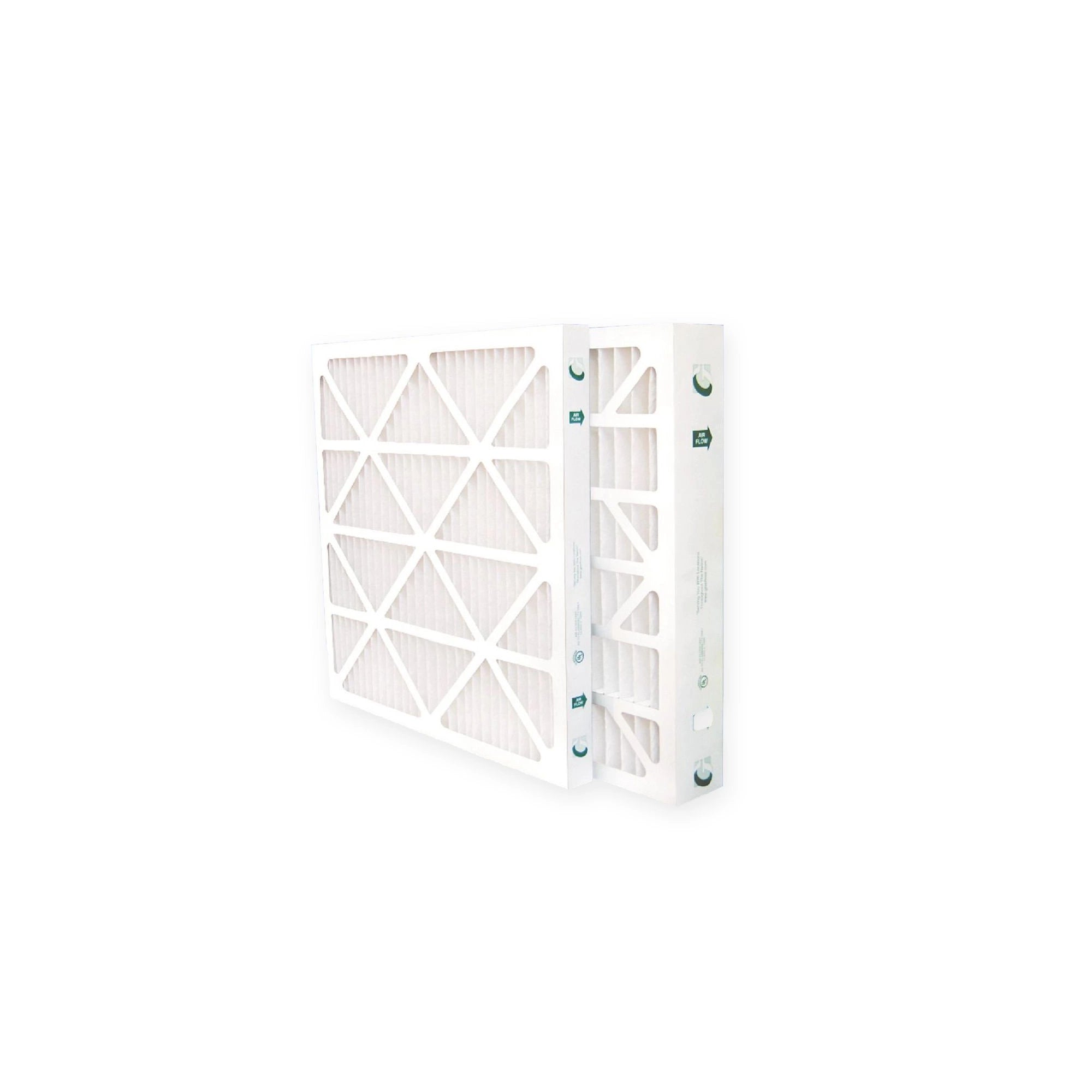

Glasfloss ZLP14201 Z-Line Standard Capacity Pleated Filter 14 x 20 x 1 inch

Product Description

The Glasfloss ZLP14201 Z-Line Series pleated filter offers improved performance for many applications. These filters feature fibers that do not absorb moisture and will not support microbial growth. The SB, ZL, and HV filters achieve a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard. Suitable for residential, commercial buildings, hospitals, and industrial applications.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Geothermal Unit Replacement Filters

Product Highlights

Glasfloss Z-Line filters provide excellent performance and value for a wide range of applications.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP14201
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP14201
• Width: 14 in
• Height: 20 in
• Length: 1 in
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• MERV Rating: 10
• Removes Smoke: No
• Removes Fine Dust: Yes
• Pleats per Linear Feet: 14
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 14
• Nominal Filter Height in Inches: 20
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Size in Inches (W x H x D): 14 x 20 x 1
• Series: Z-Line® ZL
• Face Velocity: 300 fpm
• Maximum Temperature: 180 deg F
• Initial Resistance: 0.18 in wg
• Final Resistance: 1 in WG
• Media Material: Synthetic Fiber
• Size: 14x20x1
• Product Type: HVAC_AIR_FILTER
• Manufacturer: Glasfloss Industries
• Flow Rate: 300 fpm
• Domestic/Import: Domestic
• Temperature Rating: 180 deg F
• Mfg Standards/Approvals: ANSI/ASHRAE 52.2, Energy Star Qualified, LEED Certified, UL 900
• Actual Size: 13-1/2 x 19-1/2 x 7/8 in
• Media Area: 3.29 sq-ft
• Filter Efficiency: 40% to 85%
