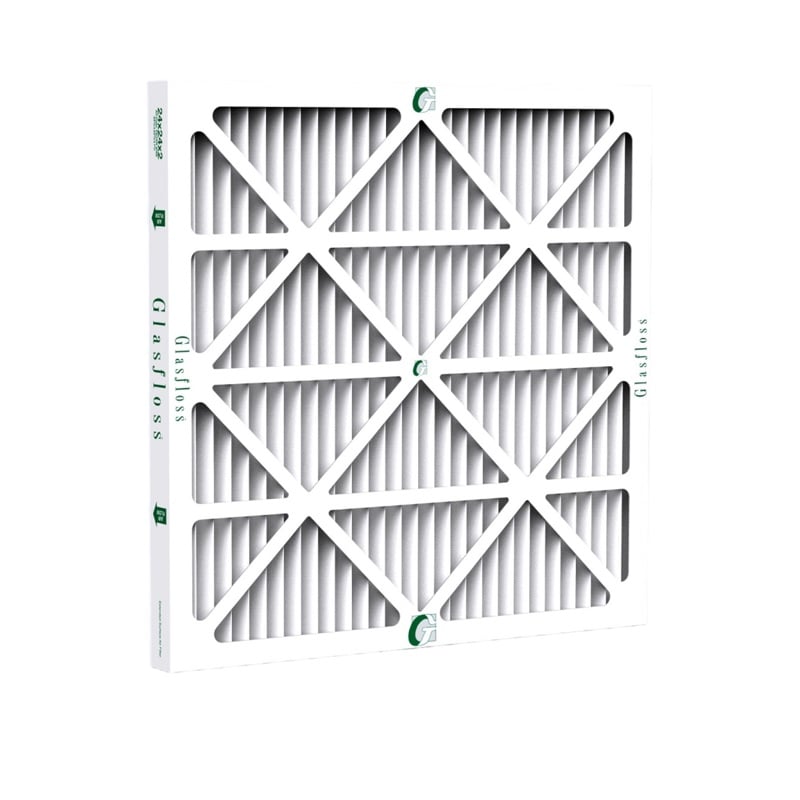

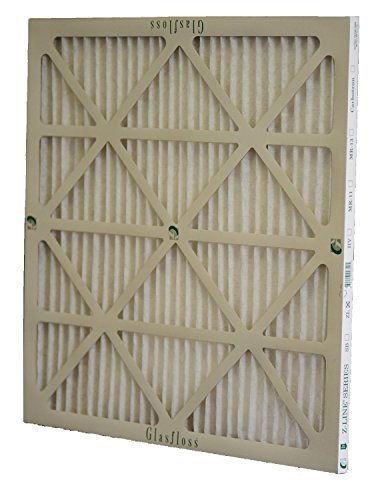

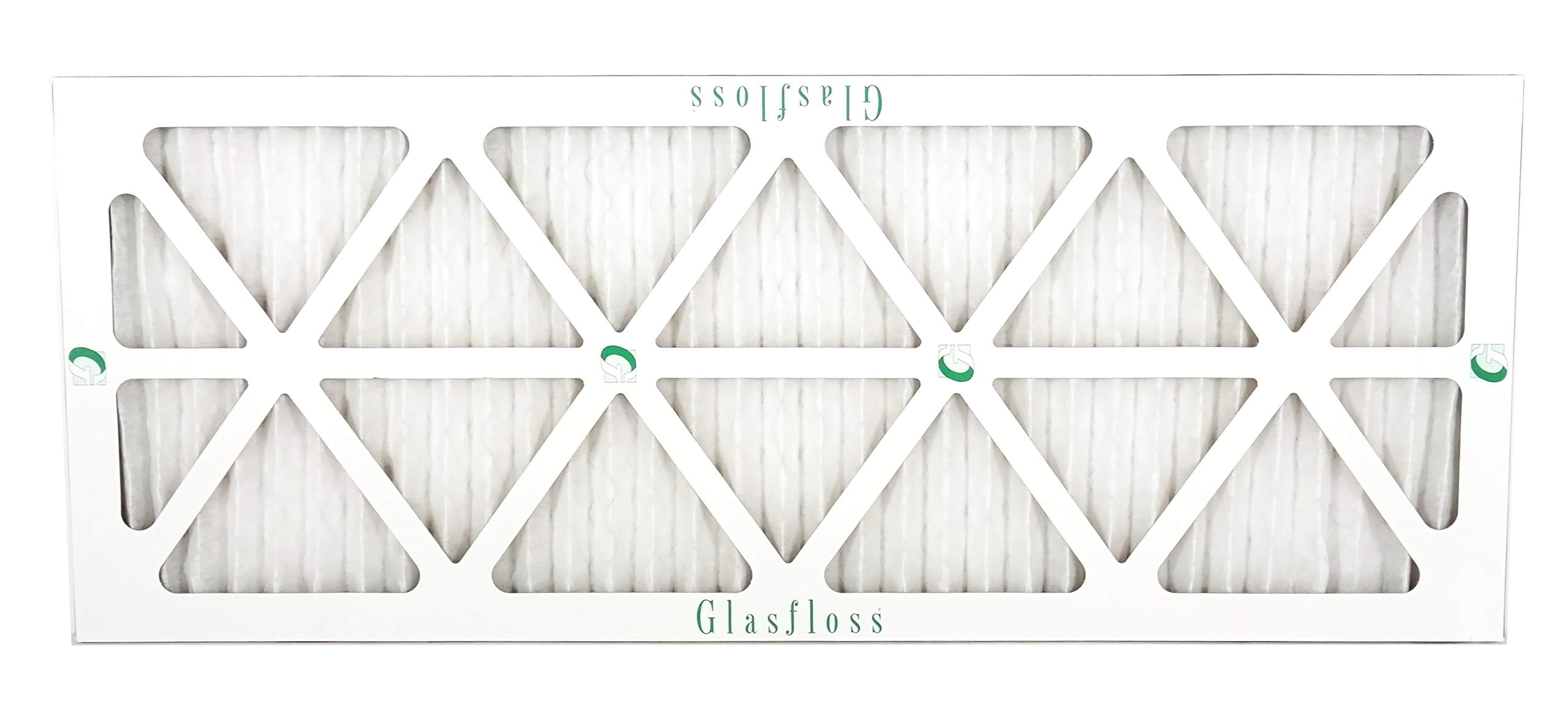

Glasfloss ZLP12301 Z-Line ZL Pleated Air Filter 12 x 30 x 1 MERV 10

Product Description

The Glasfloss ZLP12301 Z-Line Series pleated filters offer improved performance for many applications. These filters feature fibers that do not absorb moisture and will not support microbial growth. The SB, ZL, and HV filters achieve a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Incorporates Media Separators

Product Highlights

Glasfloss Z-Line filters provide excellent performance and value for a wide range of applications. Ideal for geothermal unit replacement and high-velocity systems.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP12301
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• Filter Efficiency: 40% to 85%
• Filter Rating (Microns): 1.0 to 10.0
• Filter Type: Pleated
• Frame Type: Die-Cut Beverage Board
• Height: 30 in
• Length: 12
• MERV Rating: 10
• Nominal Filter Height in Inches: 30
• Nominal Filter Size in Inches (W x H x D): 12 x 30 x 1
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Width in Inches: 12
• Pleats per Linear Feet: 14
• Removes Fine Dust: Yes
• Removes Smoke: No
• Width: 12 in
• Temperature Rating: 180 deg F
• Series: Z-Line ZL
• Flow Rate: 300 fpm
• Media Material: Synthetic Fiber
• Final Resistance: 1 in WG
• Initial Resistance: 0.18 in wg
• Overall Dimensions: 11-5/8 in W x 29-1/2 in H x 7/8 in D
• MPN: ZLP12301
• Size: 12x30x1
• Manufacturer: Glasfloss Industries
• Product Type: HVAC_AIR_FILTER
• Product Group: Home Improvement
• Actual Size: 11-5/8 x 29-1/2 x 7/8 in
• Material: Synthetic
• Depth: 1"
• Specifications: 14 Pleats Per Lineal Foot; 3.88 (Media Square Feet)
• Note: 0.21 W.G. (Initial Resistance)
• Collection: Z-LineSeries
• Configuration: Pleated
• Rated Velocity: 300 fpm
• Frame Material: Beverage Board
• Filtration Technology: Electrostatic
• Filter Media: Synthetic
• Application: Geothermal Unit
• Applicable Standard: UL 900, ANSI/ASHRAE 52.2, USGBC, LEED, HardI, NAFA
